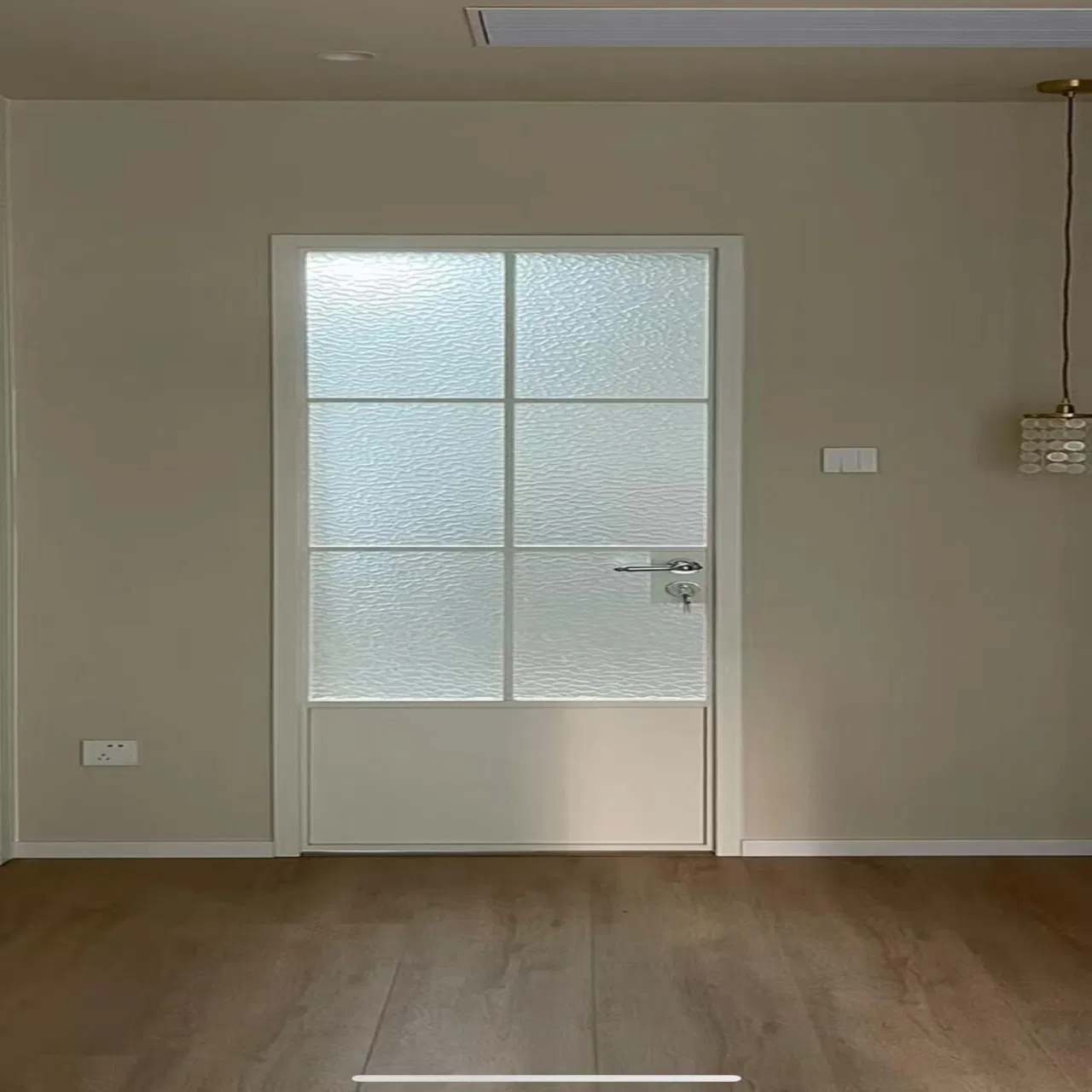

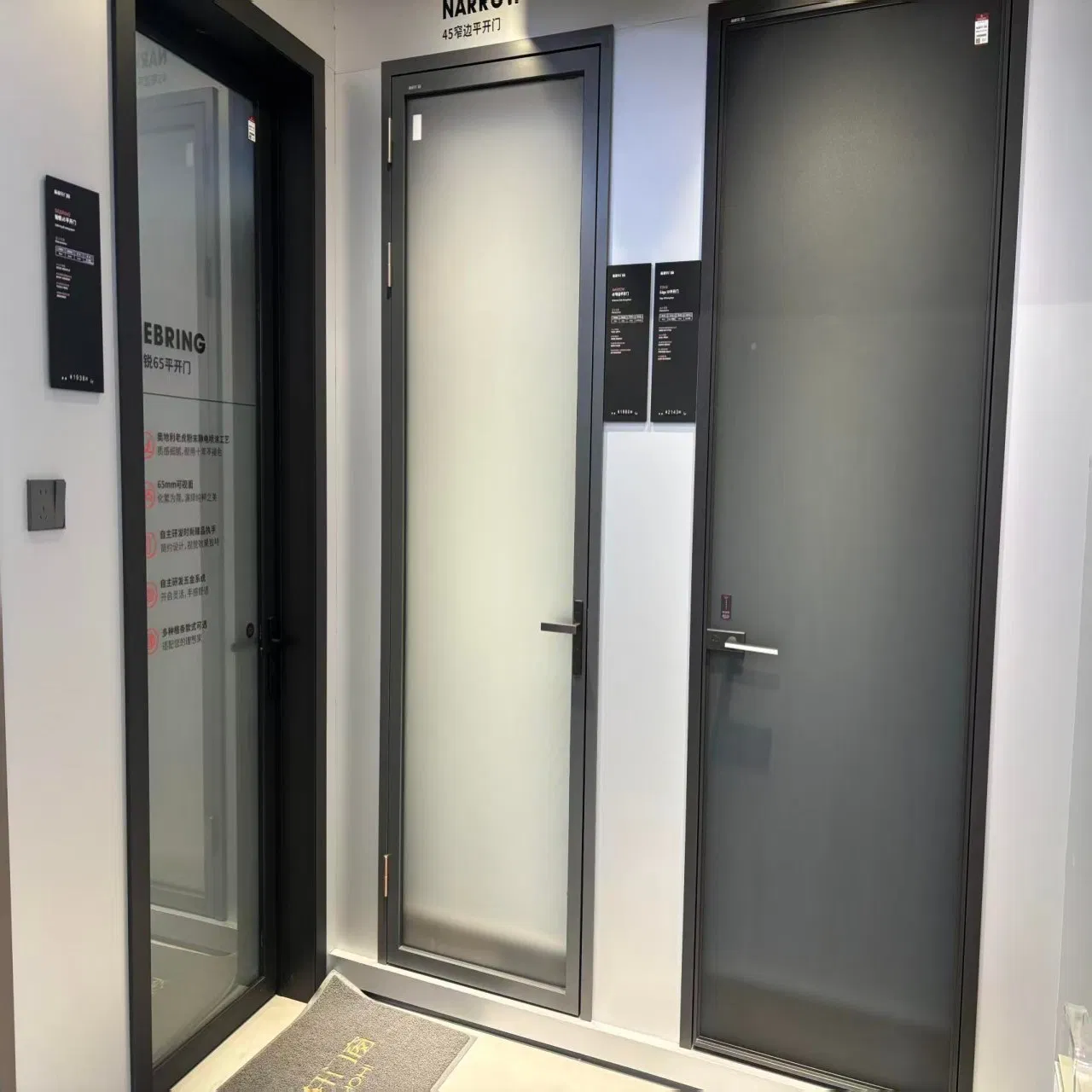

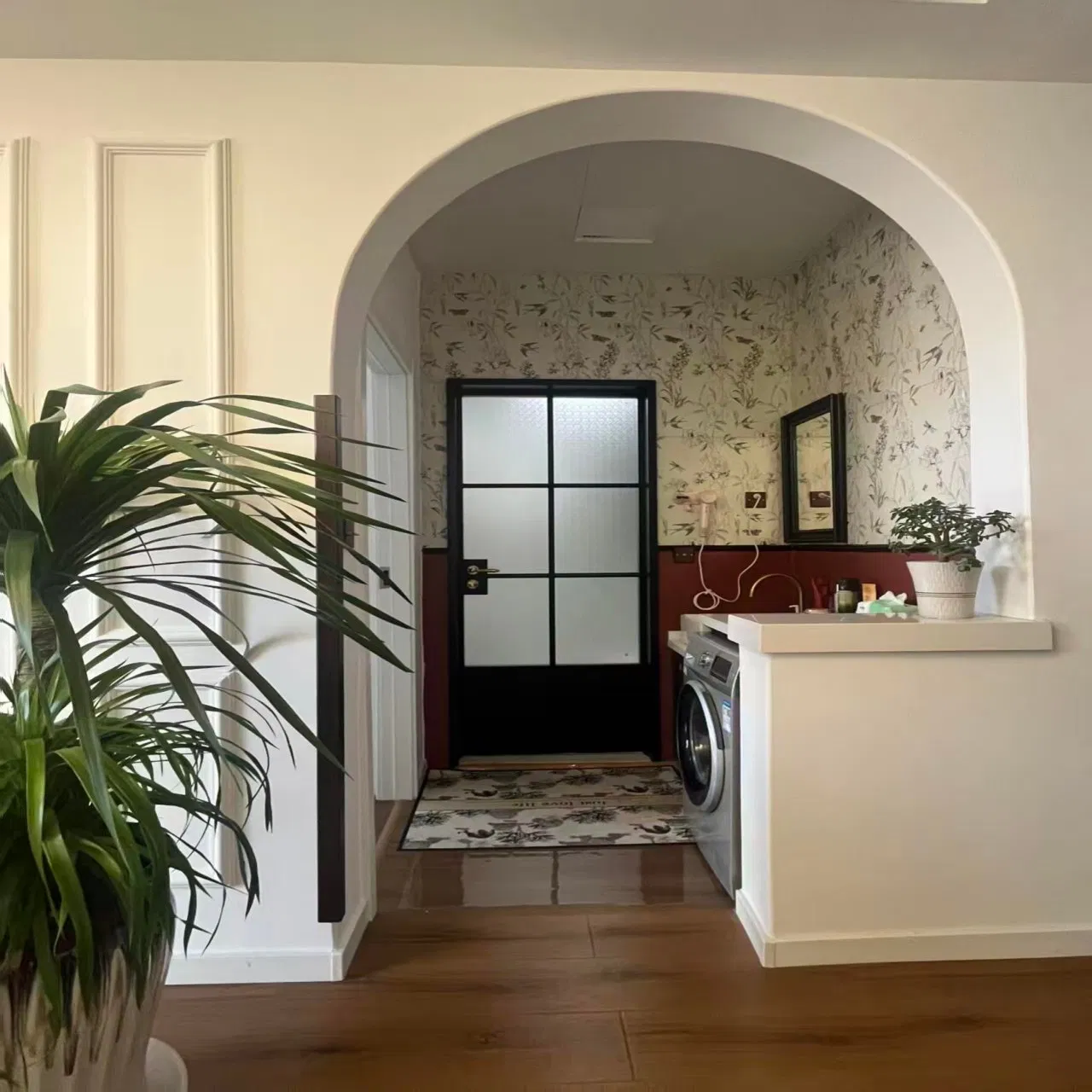

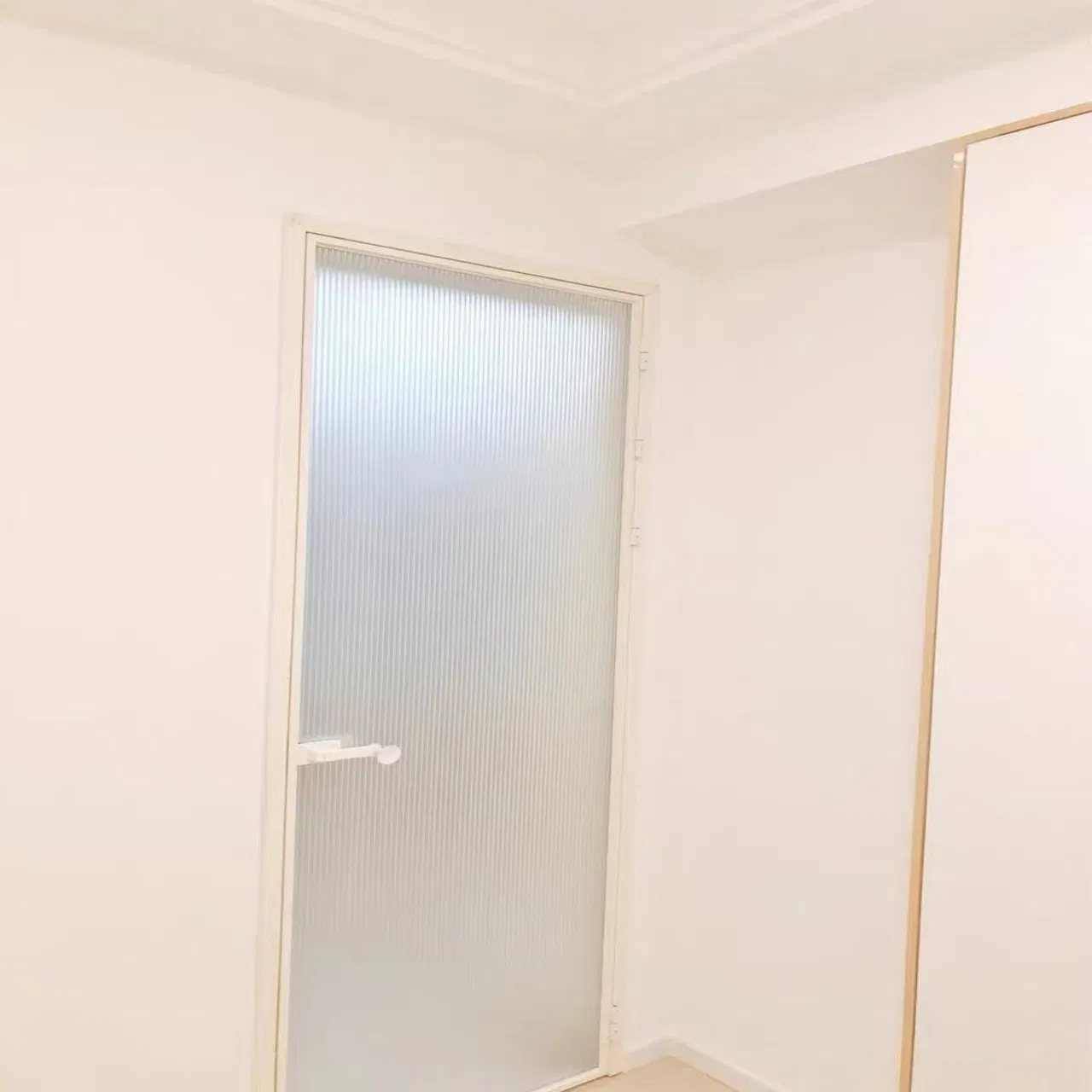

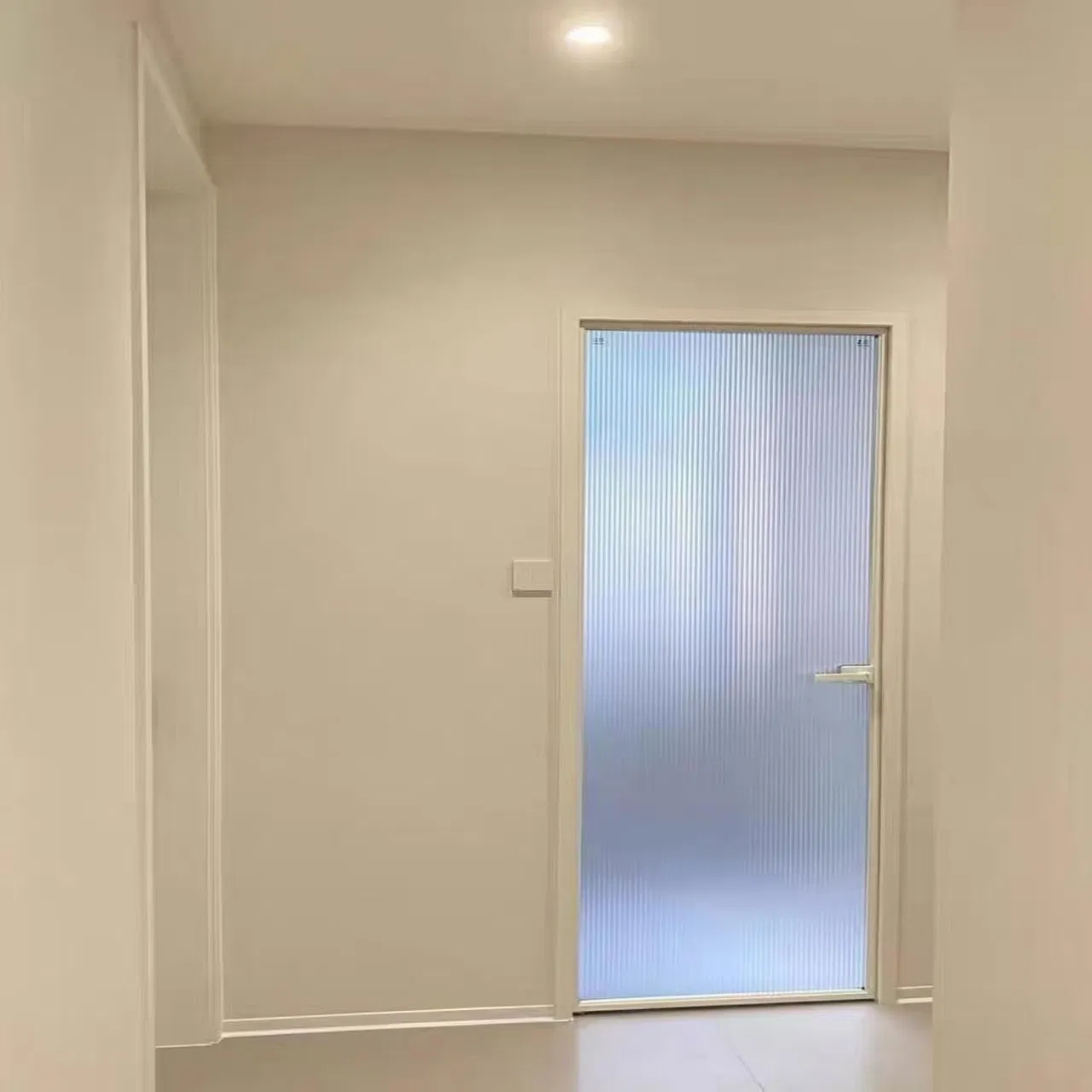

5. Exterior Conceal Hidden Aluminium Swing Interior Glass Security Door Modern, Noise-Reducing Swing Door with Aluminum/Aluminium Frame
5. Exterior Conceal Hidden Aluminium Swing Interior Glass Security Door Modern, Noise-Reducing Swing Door with Aluminum/Aluminium Frame
5. Exterior Conceal Hidden Aluminium Swing Interior Glass Security Door Modern, Noise-Reducing Swing Door with Aluminum/Aluminium Frame
5. Exterior Conceal Hidden Aluminium Swing Interior Glass Security Door Modern, Noise-Reducing Swing Door with Aluminum/Aluminium Frame
5. Exterior Conceal Hidden Aluminium Swing Interior Glass Security Door Modern, Noise-Reducing Swing Door with Aluminum/Aluminium Frame
1 / 5
5. Exterior Conceal Hidden Aluminium Swing Interior Glass Security Door Modern, Noise-Reducing Swing Door with Aluminum/Aluminium Frame
5. Exterior Conceal Hidden Aluminium Swing Interior Glass Security Door Modern, Noise-Reducing Swing Door with Aluminum/Aluminium Frame
5. Exterior Conceal Hidden Aluminium Swing Interior Glass Security Door Modern, Noise-Reducing Swing Door with Aluminum/Aluminium Frame
5. Exterior Conceal Hidden Aluminium Swing Interior Glass Security Door Modern, Noise-Reducing Swing Door with Aluminum/Aluminium Frame
5. Exterior Conceal Hidden Aluminium Swing Interior Glass Security Door Modern, Noise-Reducing Swing Door with Aluminum/Aluminium Frame

5. Exterior Conceal Hidden Aluminium Swing Interior Glass Security Door Modern, Noise-Reducing Swing Door with Aluminum/Aluminium Frame

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Information
Model NO.
pingkaimen
Material
Aluminum Alloy
Glass Type
Tempered Glass
Open Style
Swing, Sliding
Surface Finishing
Finished
Certification
CE
Position
Interior
Function
Heat Insulation, Soundproof, Waterproof
Product Description

Aluminum profile: High precision 6063-T5 aluminum, wall thickness 2.0-3.0mm.

Imported hardware: Tested for 100,000 cycles, super load-bearing, comfortable and durable, provides excellent anti-theft performance.

Flush design: Frame fan surface flush design for a beautiful visual effect and hidden sealing strips for longer service life.

Pin gluing process: High strength corner code components combined with pin gluing for maximum stability and tightness.

Surface treatment: Professional powder spraying process, anti-corrosion, anti-aging, with 20-year fade resistance.

Technical Specifications
Contour thicknessWindow: 1.4-3.0 mm | Door: 1.4-5.0 mm
Glass TypeDouble-glazed (5+12A+5, etc.), Laminated or Lowe glass options
Hardware BrandGerman VBH or top Chinese brand RLS
Color OptionsGrey, Coffee, White, Black (Customizable for bulk)
Product Video Cover
Performance Parameters
Test Item Unit Result Level
Air tightness (Positive)m³/(m·h)1.4Level 6
Water tightnessPa350Level 4
Wind resistancekPa2.68Level 4
Thermal insulationW/(m²·K)2.2Level 6
Sound Insulation--Level 7

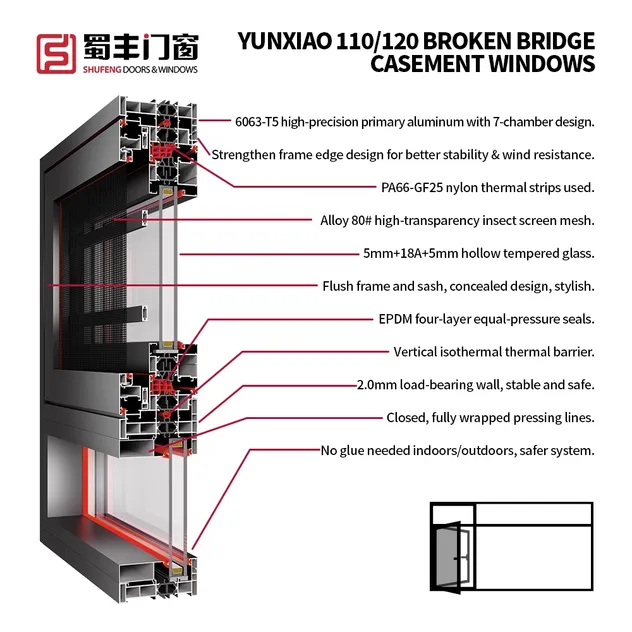

Aluminum Door Detail 1

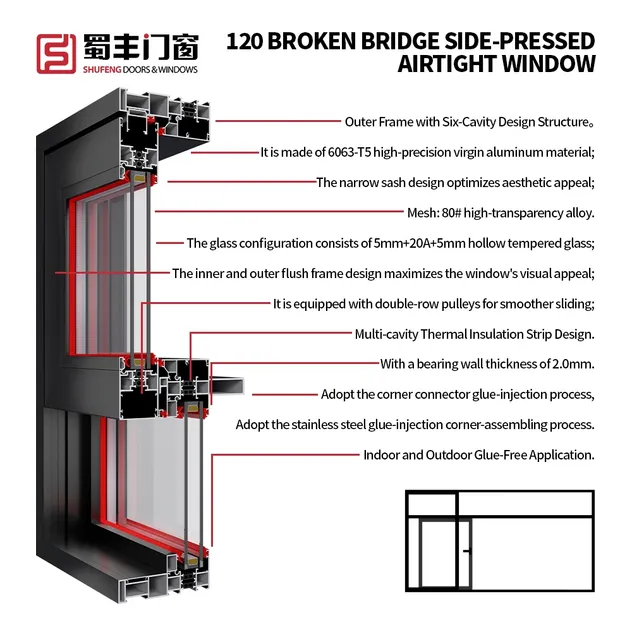

Aluminum Door Detail 2

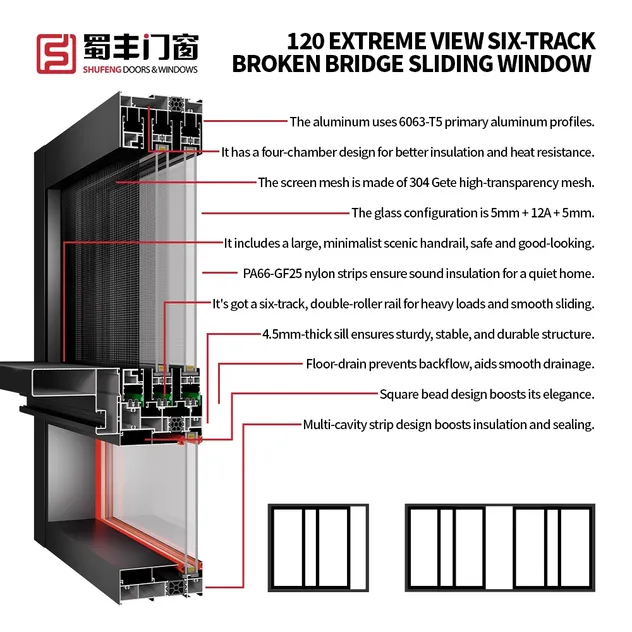

Aluminum Door Detail 3

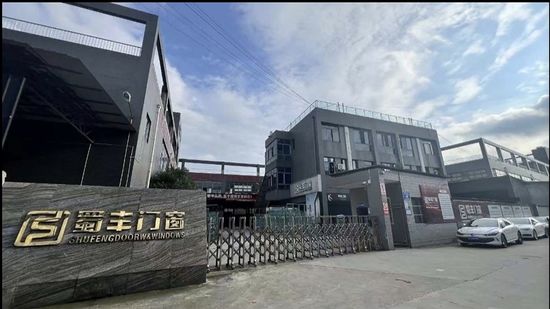

About Our Manufacturing
Established in 2014, our facility covers 7,000 square meters. We specialize in door and window design, research and development, manufacturing, and global sales. For a decade, we have focused on high-quality aluminum products, providing excellent technical support and complete service. We are committed to building a benchmark brand in the aluminum industry, promoting environmental protection and high-end home experiences.

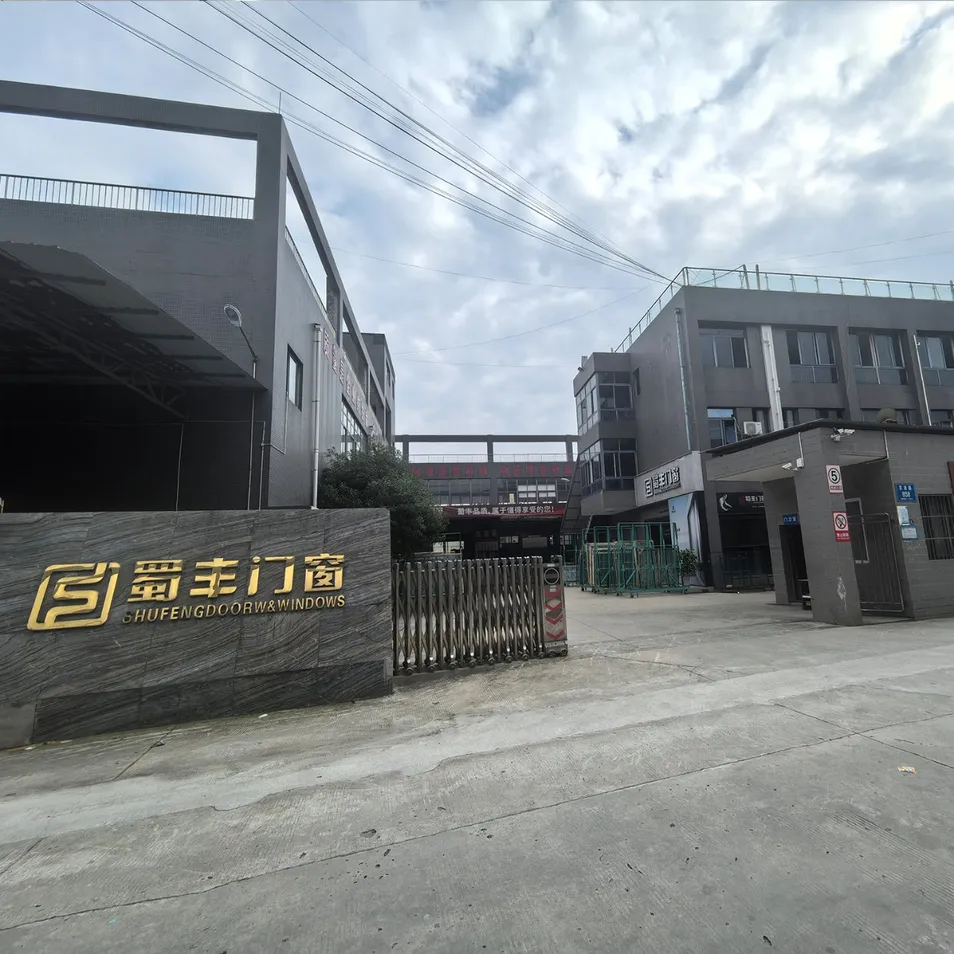

Factory View 1
Factory View 2
Production Line

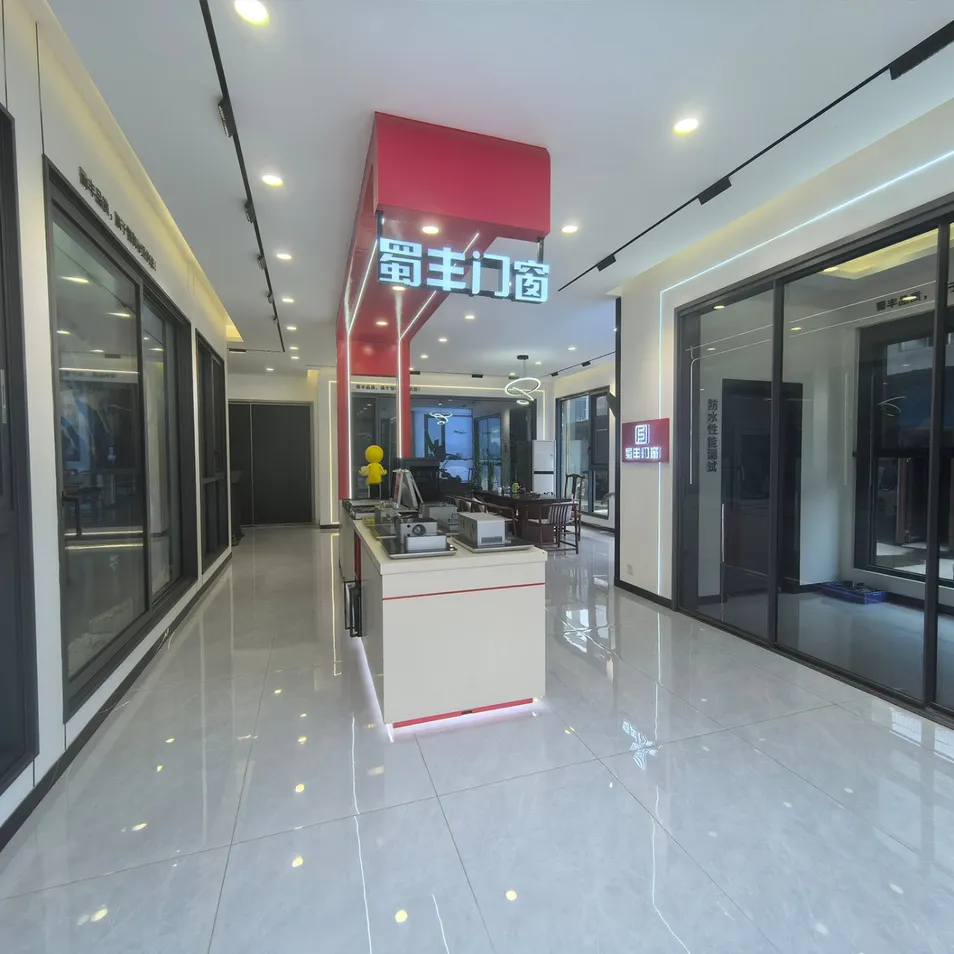

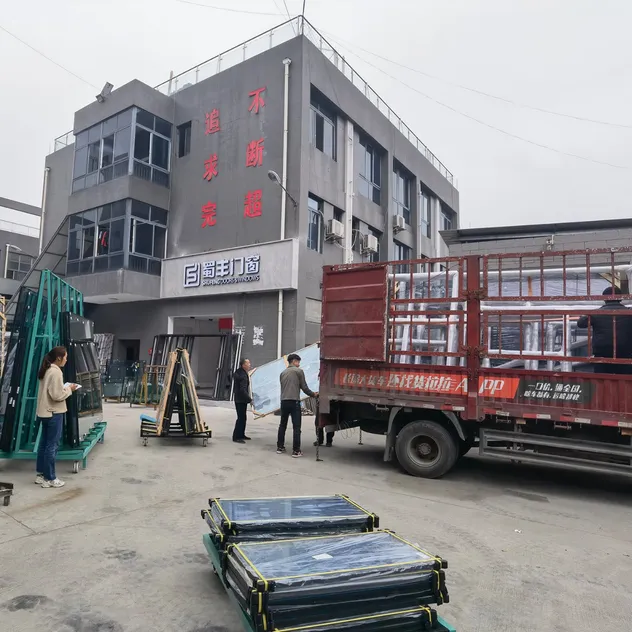

Product Showroom 1
Product Showroom 2
Frequently Asked Questions
What materials are used in the door frames?
We use high-precision 6063-T5 aluminum with a wall thickness ranging from 2.0mm to 3.0mm for maximum durability.
Can the size and color of the doors be customized?
Yes, all products are customized to your specific size requirements. Standard colors include Grey, Black, White, and Coffee, with custom colors available for large orders.
What kind of glass is used?
We primarily use tempered glass. Options include double-glazed units (e.g., 5mm+12A+5mm), laminated glass, and Low-E glass for better thermal performance.
Is the hardware durable?
Absolutely. We use premium hardware from brands like German VBH and top Chinese suppliers, tested for over 100,000 opening cycles.

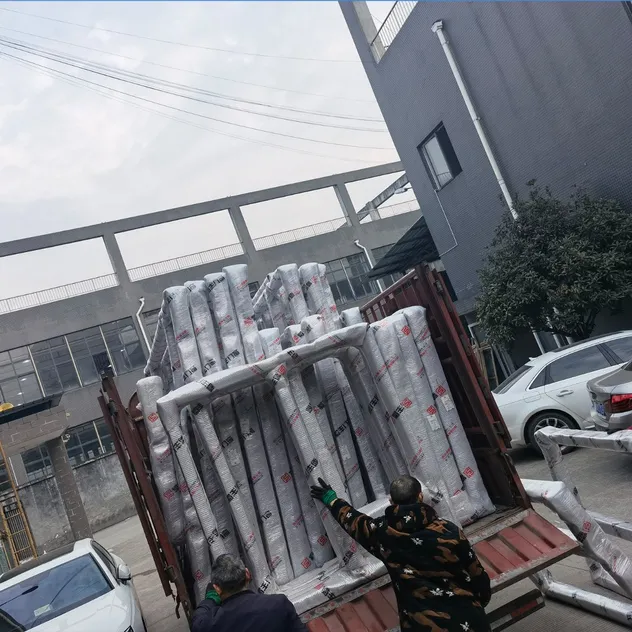

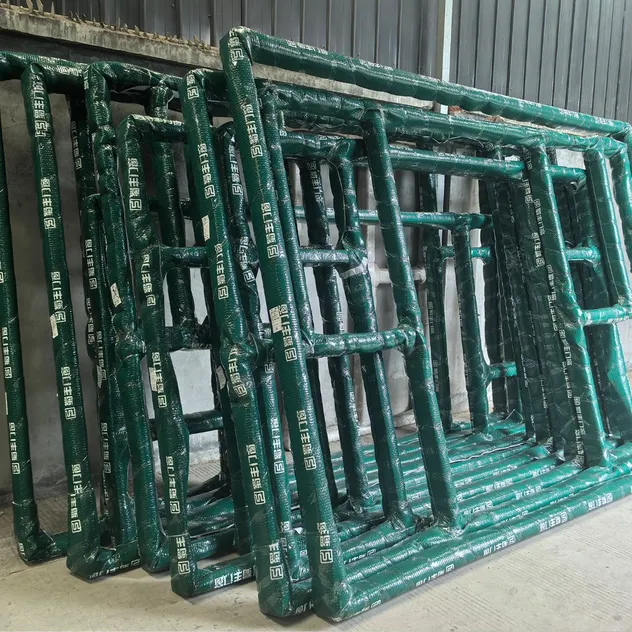

How are the products packaged for shipping?
We use thickened brand pearl cotton and sturdy wooden boxes to ensure the products remain safe during transport.
What is your annual production capacity?
Our facility has a production capacity of approximately 50,000 square meters per year.
