Silent Hospital Door System - Automatic Hermetic Door
Technical Specifications
Gate Width:
1070mm to 1570MM
Power Supply:
AC110V/220V 50-60HZ
Opening Speed:
250 to 550mm/s
Working Temp:
-20°C to +50°C
Airproof Force:
70N < F < 200N
Key Features & Standards
Hermetically sealed to maintain sterility and correct air pressure.

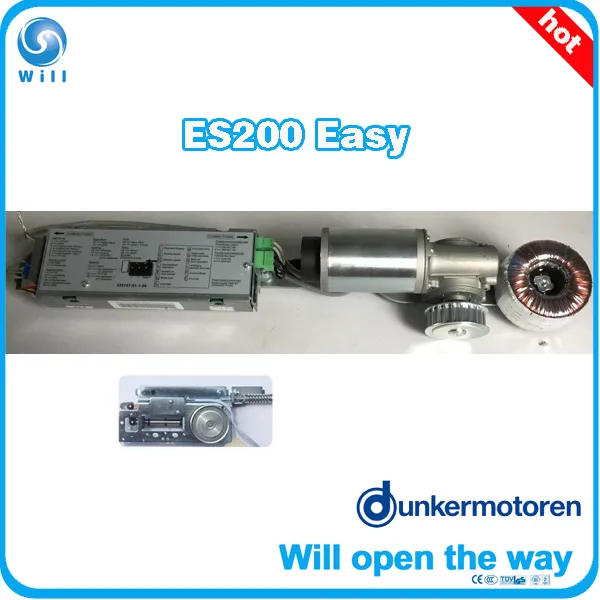

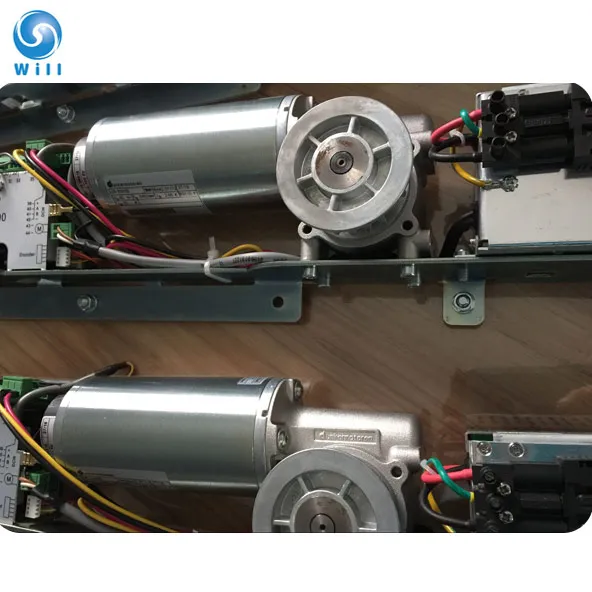

DC 24V 70W brushless DC motor for silent operation (below 60 decibels).
Microprocessor-based controller for precise movement.
High-quality 304 Stainless Steel door panels with anodized aluminium frames.
Equipped with safety sensors (elbow/foot/radar) and automatic reverse function.
Compliant with HTM 2020/2021, BS7971, and IEE regulations.
Includes 300 x 300mm vision panels.

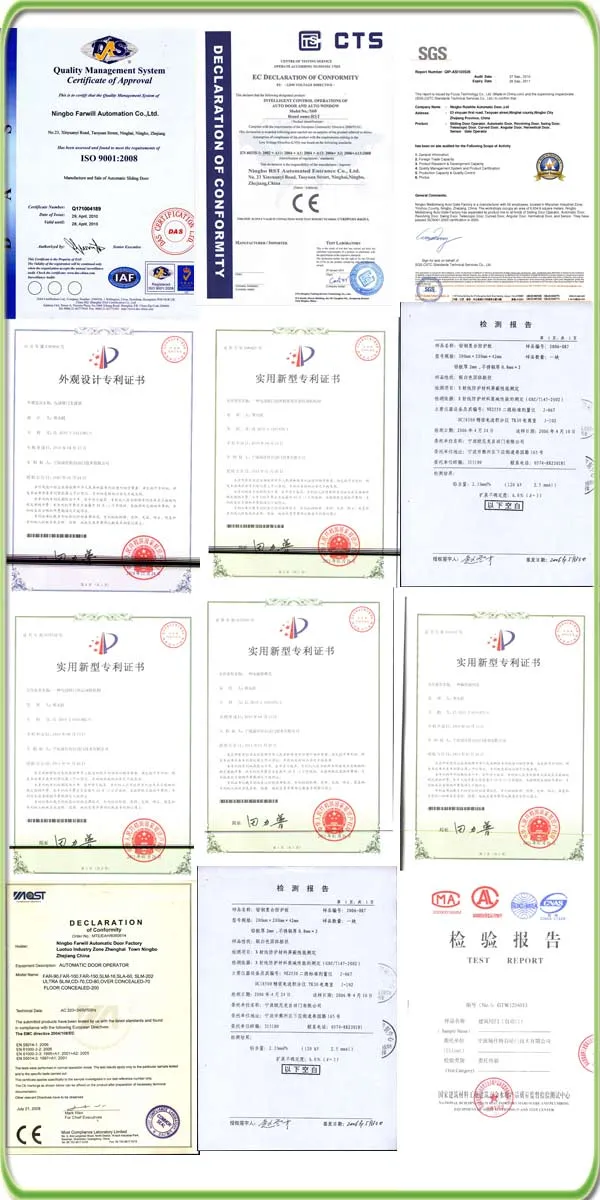

Certificates & Applications
Frequently Asked Questions
What are the main applications for these doors?

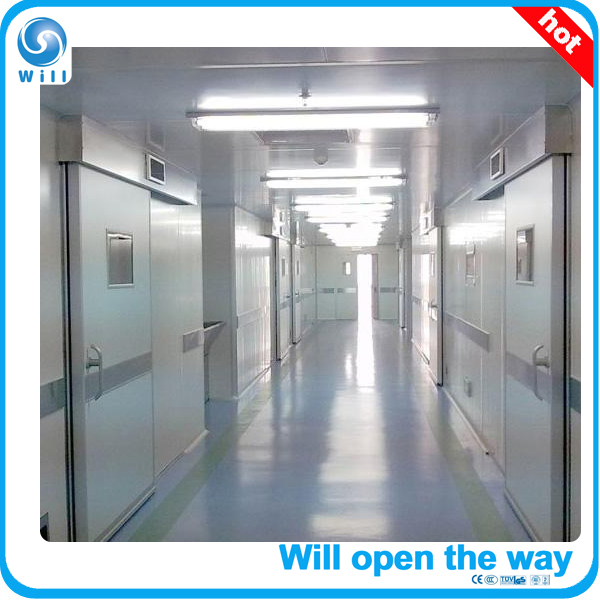

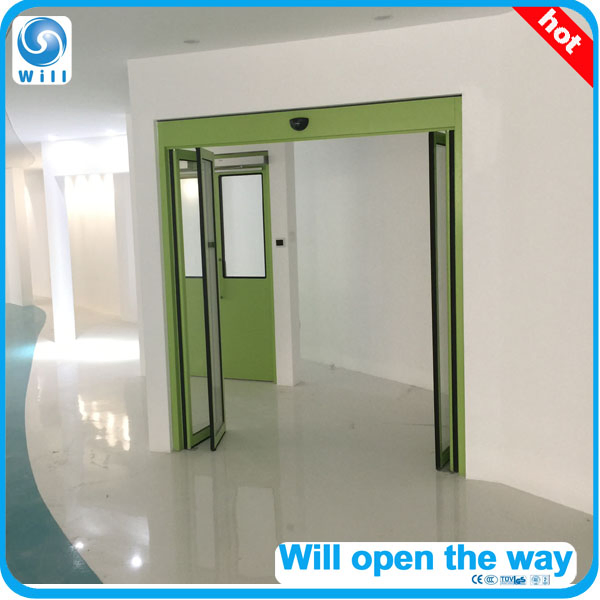

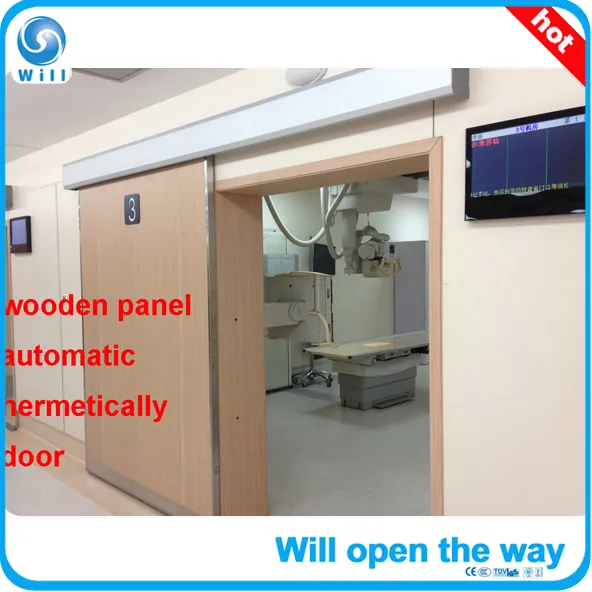

These hermetic doors are primarily designed for hospitals, X-ray rooms, sterile environments, and cold storage rooms where air pressure and hygiene control are critical.
How does the hermetic sealing work?
The door is designed to seal on all four edges when in the closed position, using high-quality extrusions to maintain air pressure and sterility within the room.
What safety features are included?
The system includes sensing for overload conditions, where the door will automatically stop and reverse. It also supports elbow switches, foot switches, and touchless radar sensors.
Can the door be operated during a power failure?
Yes, all doors are designed to be operated easily by hand in the event of a power supply failure or automation unit malfunction.
What materials are used for construction?

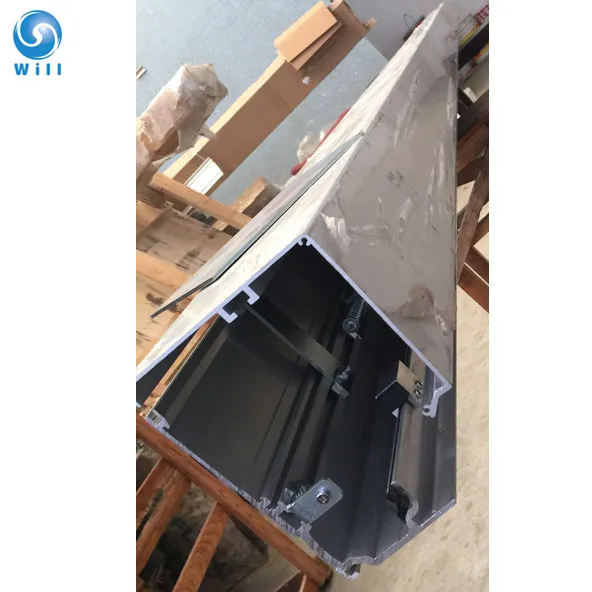

The door panels are made of high-quality 304 stainless steel or galvanized steel, while the frames and tracks use high-grade anodized aluminium for durability and corrosion resistance.
Are the doors customizable?
Yes, the size, color (Ral colors), surface finish, and internal foam materials can all be customized to meet specific project requirements.
