China Industrial Dust-Proof Safety PVC Fast Rolling High Speed Fast Shutter Door
China Industrial Dust-Proof Safety PVC Fast Rolling High Speed Fast Shutter Door
China Industrial Dust-Proof Safety PVC Fast Rolling High Speed Fast Shutter Door
China Industrial Dust-Proof Safety PVC Fast Rolling High Speed Fast Shutter Door
China Industrial Dust-Proof Safety PVC Fast Rolling High Speed Fast Shutter Door
1 / 5
China Industrial Dust-Proof Safety PVC Fast Rolling High Speed Fast Shutter Door
China Industrial Dust-Proof Safety PVC Fast Rolling High Speed Fast Shutter Door
China Industrial Dust-Proof Safety PVC Fast Rolling High Speed Fast Shutter Door
China Industrial Dust-Proof Safety PVC Fast Rolling High Speed Fast Shutter Door
China Industrial Dust-Proof Safety PVC Fast Rolling High Speed Fast Shutter Door

China Industrial Dust-Proof Safety PVC Fast Rolling High Speed Fast Shutter Door

Customization: Available
After-sales Service: Yes
Warranty: 13 Months After Delivery
Send Inquiry

Product Description

Basic Information
Model NO.
XF-H-1500
Material
PVC + Steel
Type
Rolling
Open Style
Rolling
Opening Type
Power Driven
Special Function
Security
Color
Customer-Tailor
Certification
CE
Position
Industrial
Surface
Finished
Speed
0.6-1.2m/S
Voltage
220V / 380V 50Hz
Power
0.75 ~ 2.2kw
Specification
3000*3000mm
Trademark
XIFEI
Capacity
8000/Year
Packaging & Delivery
Package Size
220.00cm * 100.00cm * 60.00cm
Gross Weight
100.000kg
Package Type
Wooden Case
Product Description

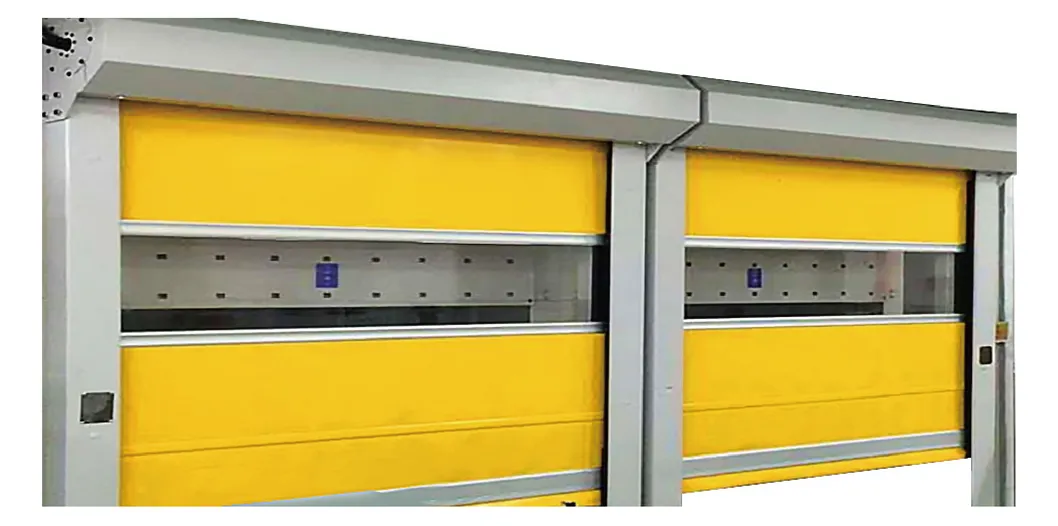

Industrial Safety PVC Fast Door

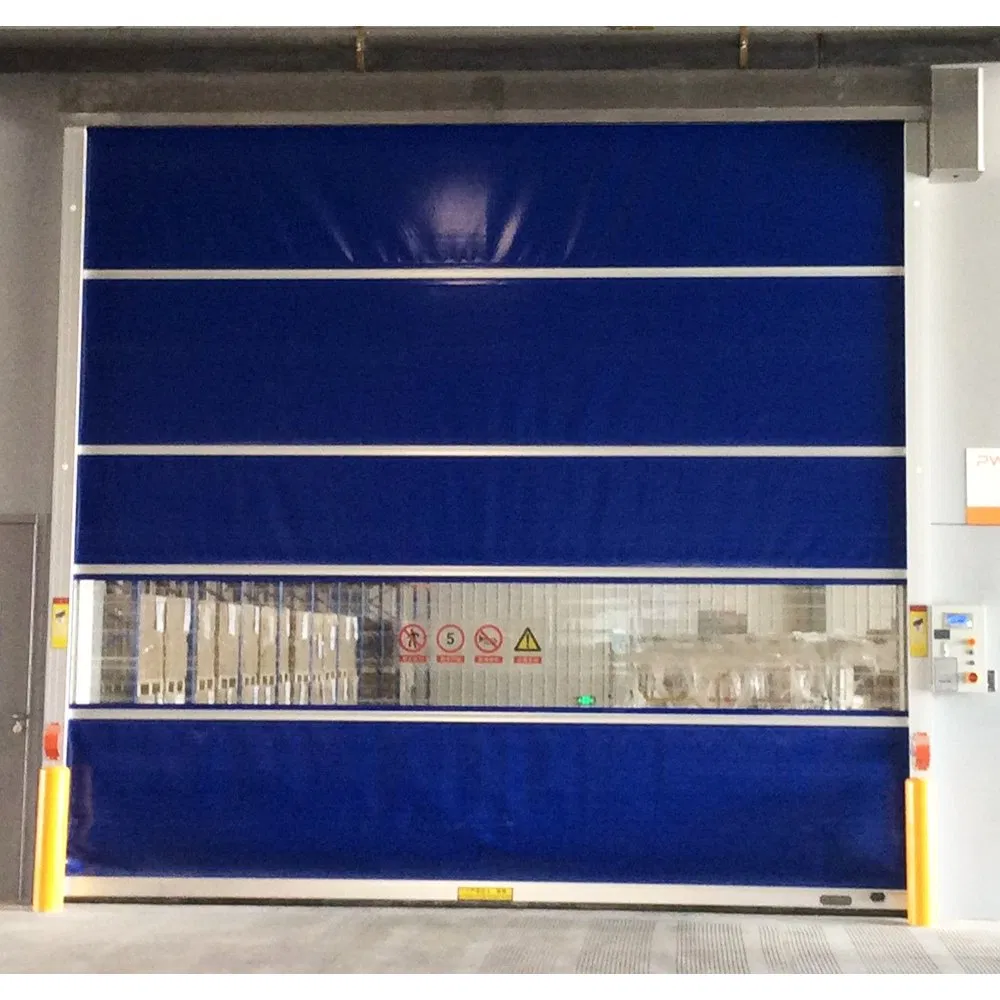

High Speed Fast Shutter Door

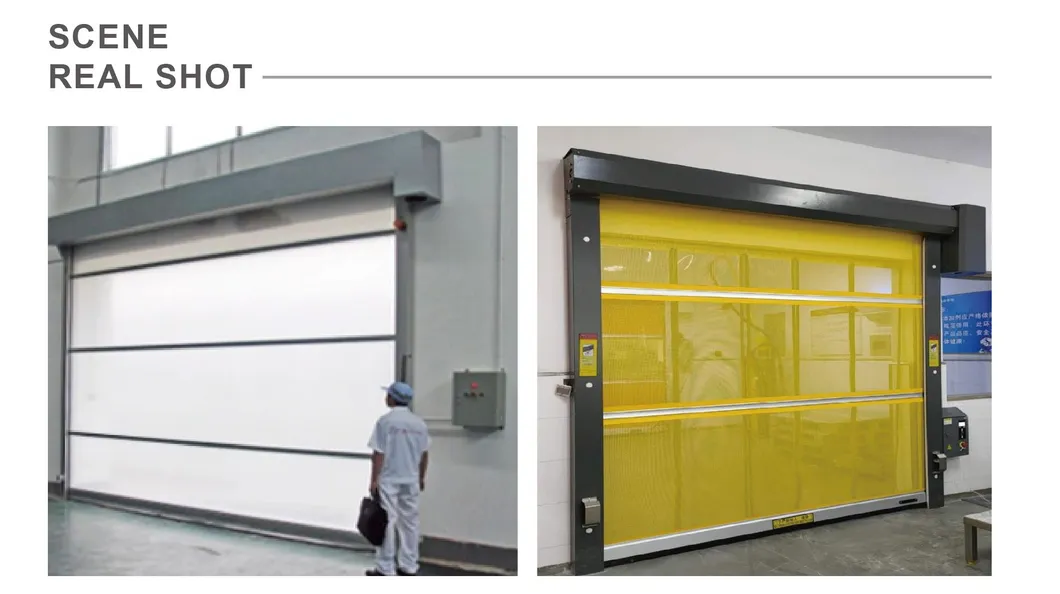

PVC Fast Rolling Door

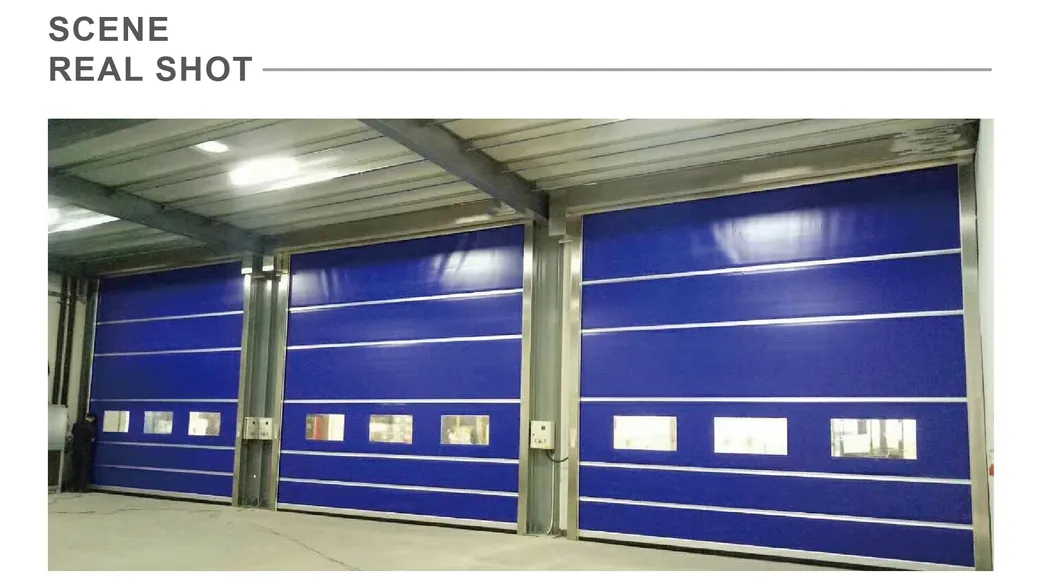

Dust-Proof High Speed Door

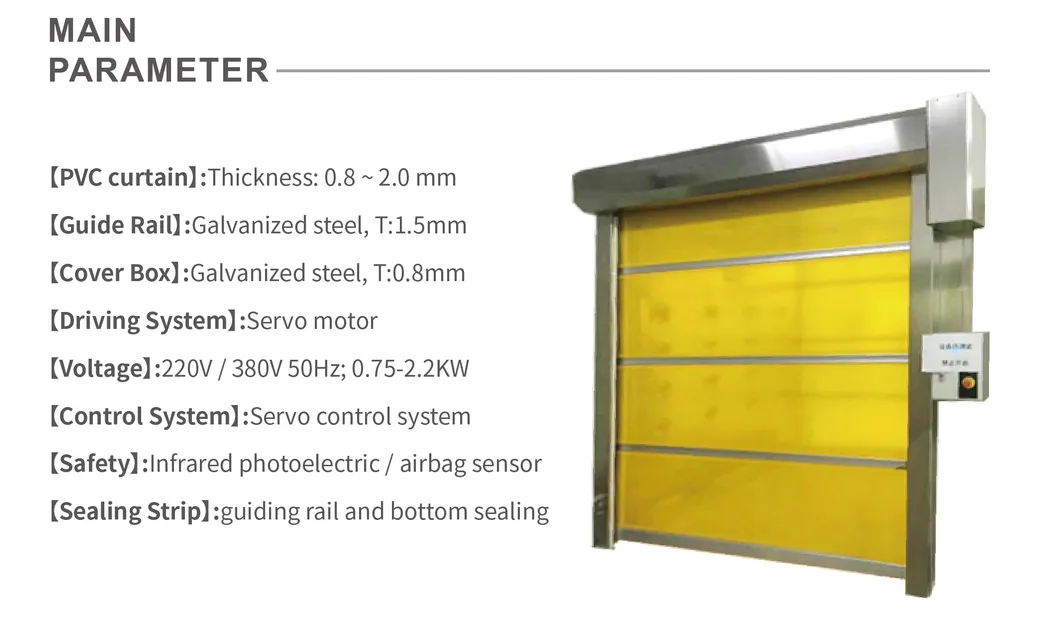

Technical Drawing
TECHNICAL PARAMETERS
Door Curtaina. PVC thickness: 0.8-2.0mm | b. Transparent Strip: 1.2-1.5mm | c. Brand: SOIEN | d. Retarding: B1
Motora. Brand: ABB / Servo motor | b. Protection: IP55
Control Systema. Frequency converter + PLC | b. Servo control system
Working Frequency1000 Times/day
Guide RailStainless steel / Aluminum alloy (Optional), T:2.0mm
Safety Featuresa. Photoelectric protection / Optical grating | b. Bottom air chamber
SealingEPDM Rubber: Heat, weather and aging resistance
EmergencyManual Swing Bar

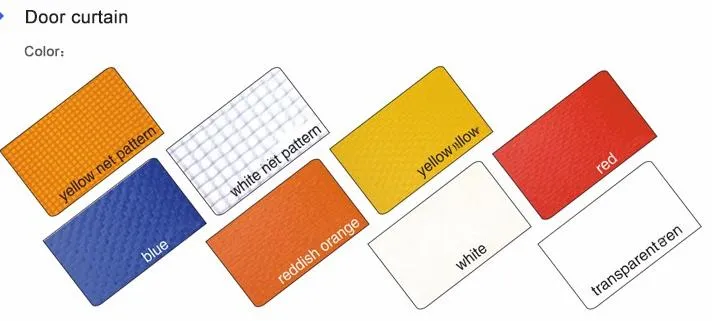

Detail 1

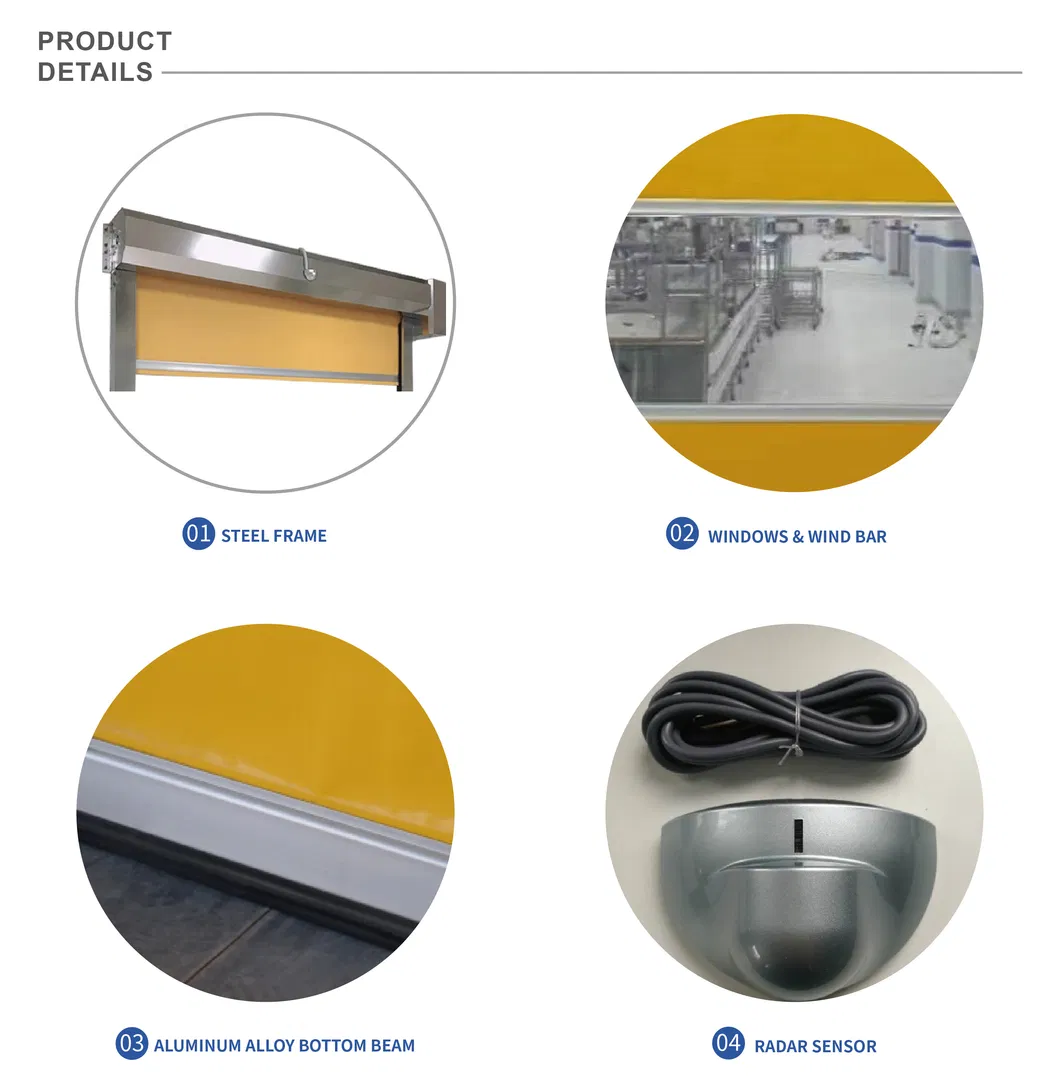

Detail 2

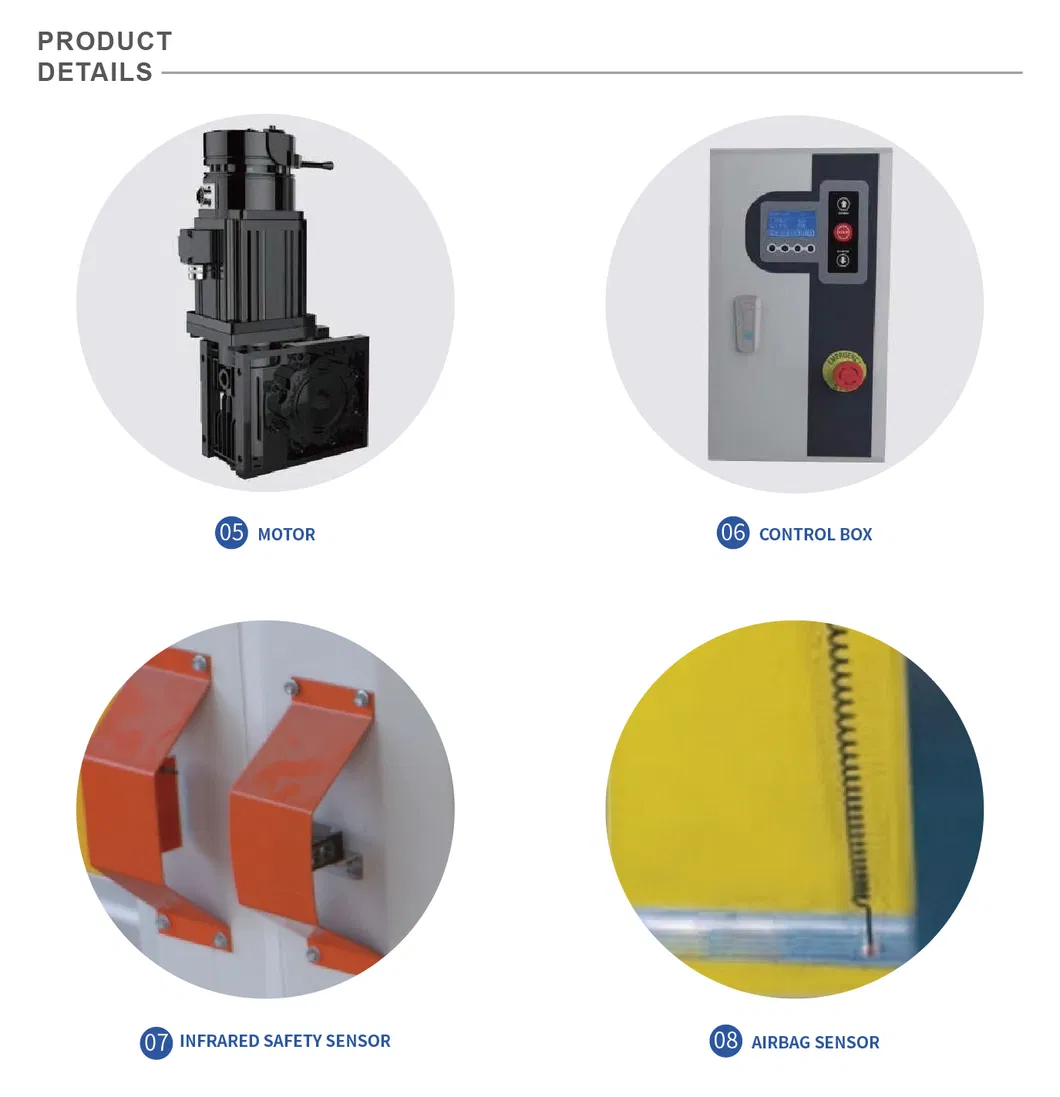

Detail 3
Detail 4
Detail 5
Key Advantages
  • ✅ Professional Design: Integrated industrial door solutions including manufacturing and installation.
  • ✅ Customized Solutions: Products designed according to specific customer needs with advanced technology.
  • ✅ Diverse Product Range: High speed doors, fire doors, sectional doors, and logistics docking systems.
  • ✅ Certified Quality: ISO9001:2000 management certification and CE Certification.
Frequently Asked Questions
What is the maximum opening speed of the door?
The opening and closing speed ranges from 0.6 to 1.2 meters per second, ensuring efficient traffic flow and environmental control.
What safety features are included?
The doors come with a photoelectric protection system or optional optical grating, plus an optional air chamber at the bottom for maximum safety.
Can the door color be customized?
Yes, we provide customer-tailored color options with electrostatic painting to match your facility's aesthetic requirements.
What materials are used for the door curtain?
The curtain is made of high-quality PVC with thicknesses ranging from 0.8mm to 2.0mm, featuring B1-grade flame retardancy.
What is the expected daily duty cycle?
These industrial doors are designed for high-frequency use, rated for approximately 1000 cycles per day.
How is the door operated during a power failure?
Every unit is equipped with a manual swing bar for emergency operation during power outages.
