Fastlink Commercial Cold Storage Panel Lift Garage Overhead Insulated Sectional Doors

1 / 5

Fastlink Commercial Cold Storage Panel Lift Garage Overhead Insulated Sectional Doors

Customization:	Available
After-sales Service:	2year
Warranty:	1 Yearg

Send Inquiry

Product Description

📋 Basic Specification

Model NO.

SSD-CAV

Material

Aluminum Alloy

Type

Sliding Sectional

Special Function

Fire Proofing / Windproof

Certification

TUV, RoHS, CE, UL

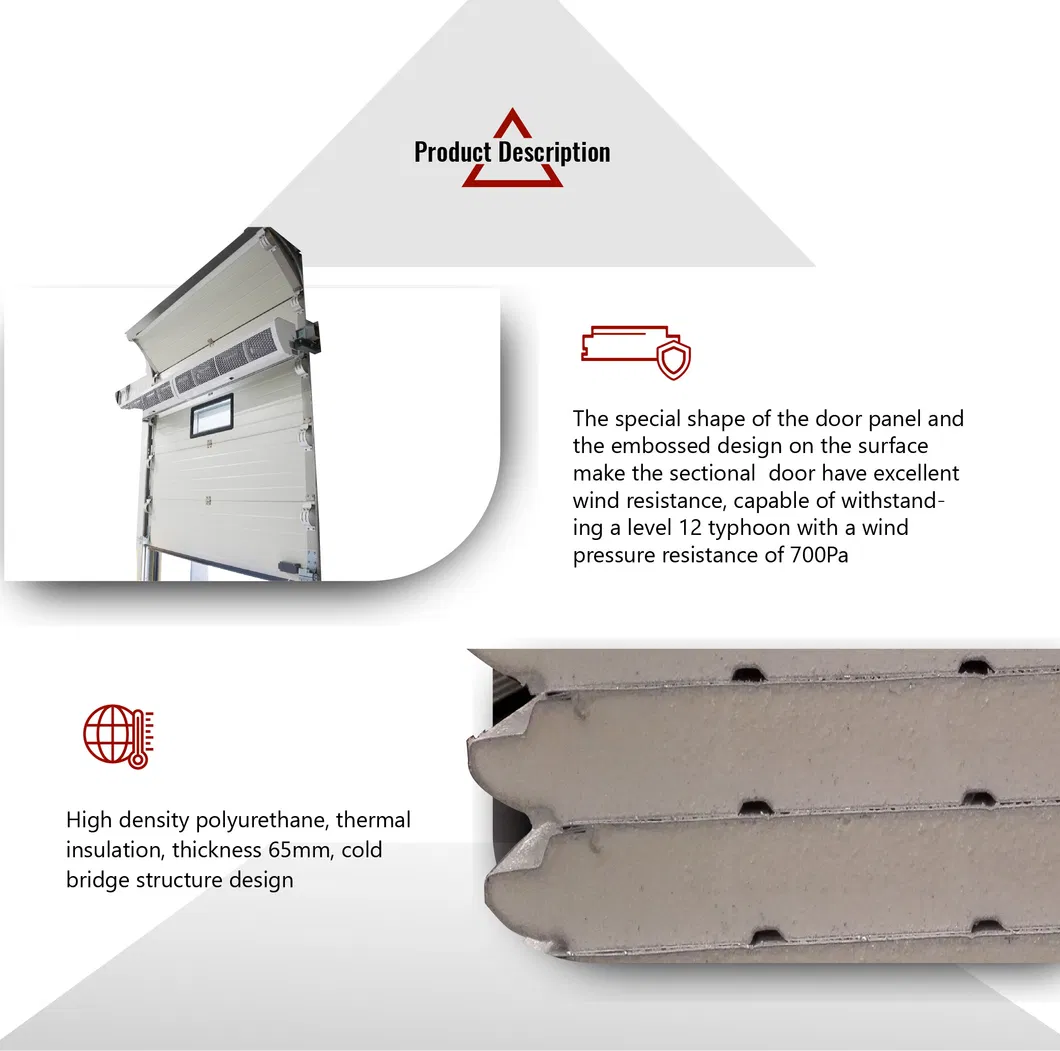

Door Panel

PU Sandwich Panel (42mm)

Opening Mode

Electric / Manual

Thermal Insulation

K=0.7W/(m².K)

Wind Resistance

700pa (Grade 1)

Surface Finishing

Embossed Finished

⚙️ Technical Attributes

Attribute	Details
Polyurethane	Huntsman brand, freon-free, density: 48kg/m³, closed-cell rate >95%

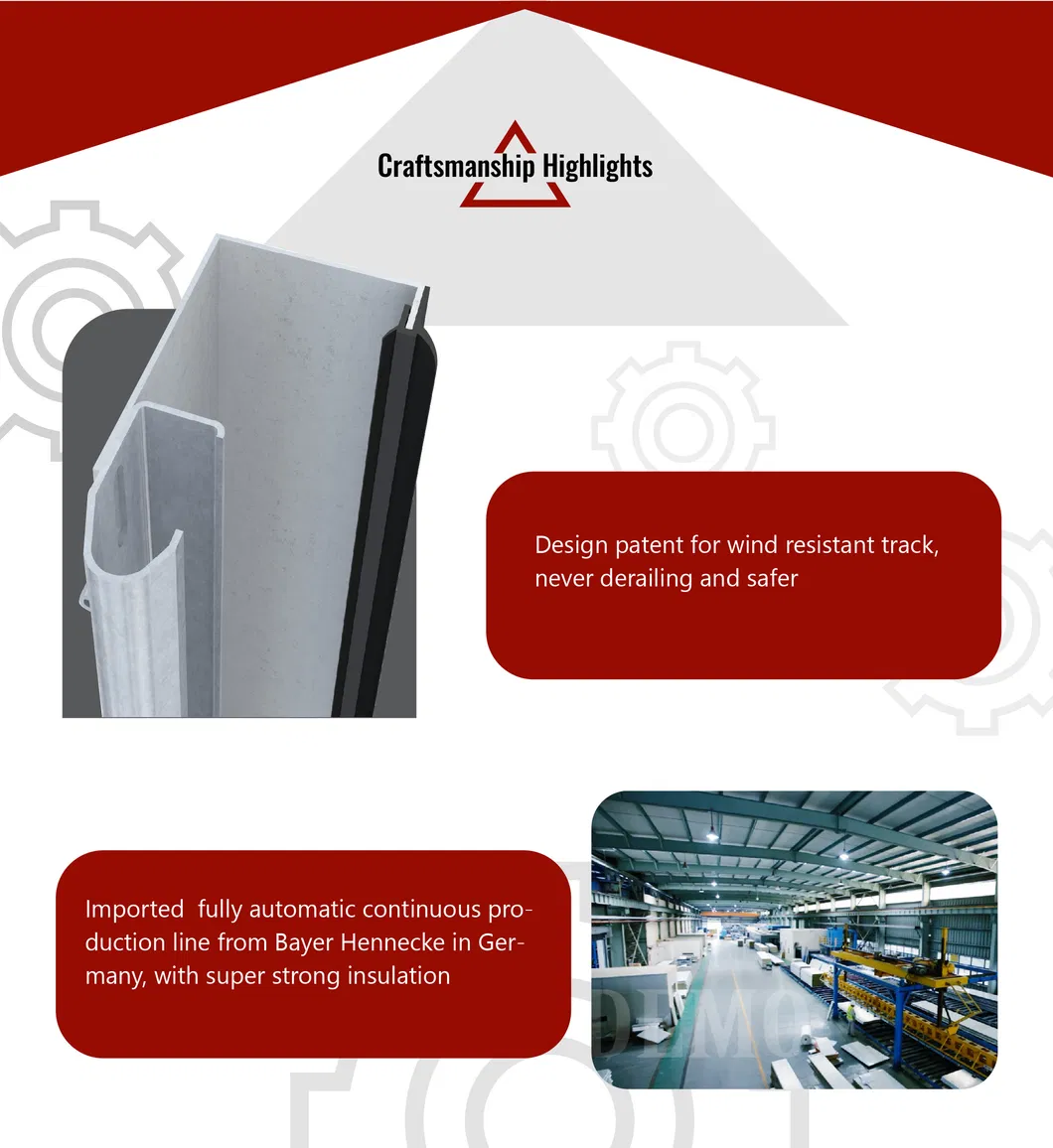

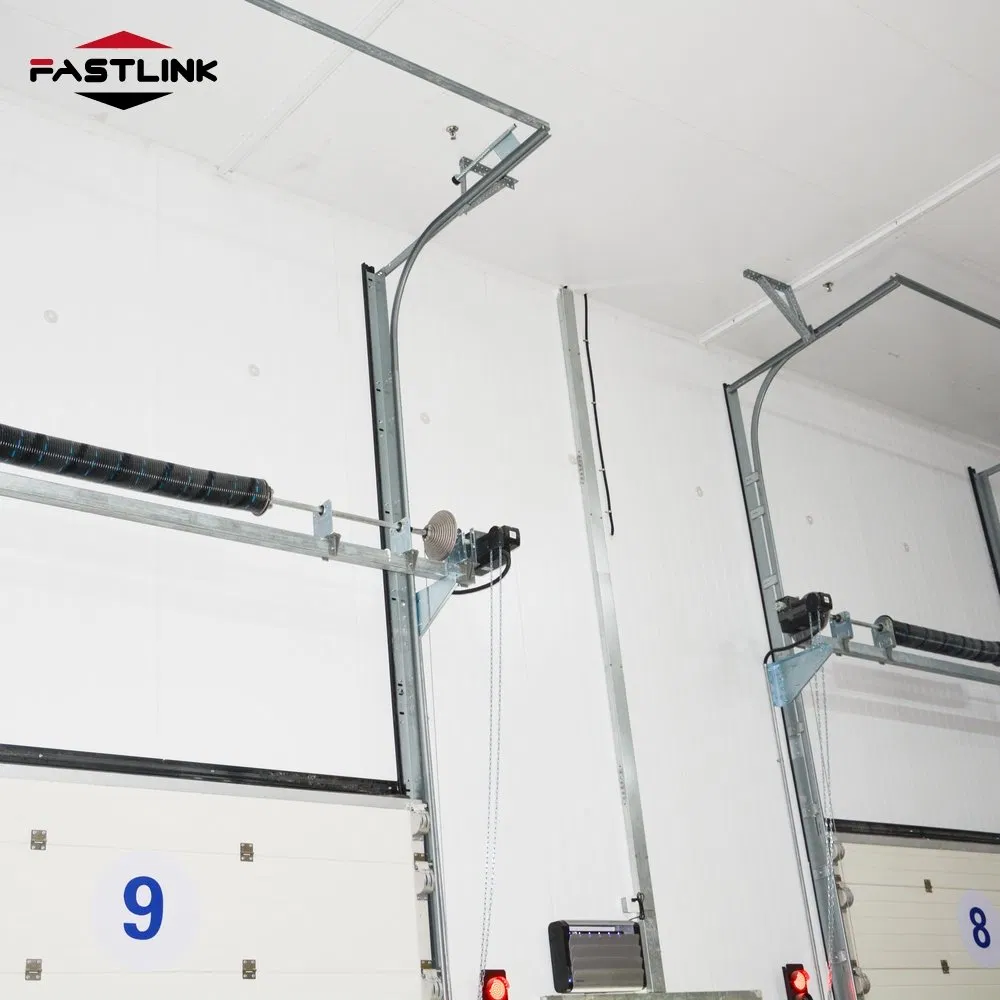

Track Design	Patented wind-resistant track with insulation cotton

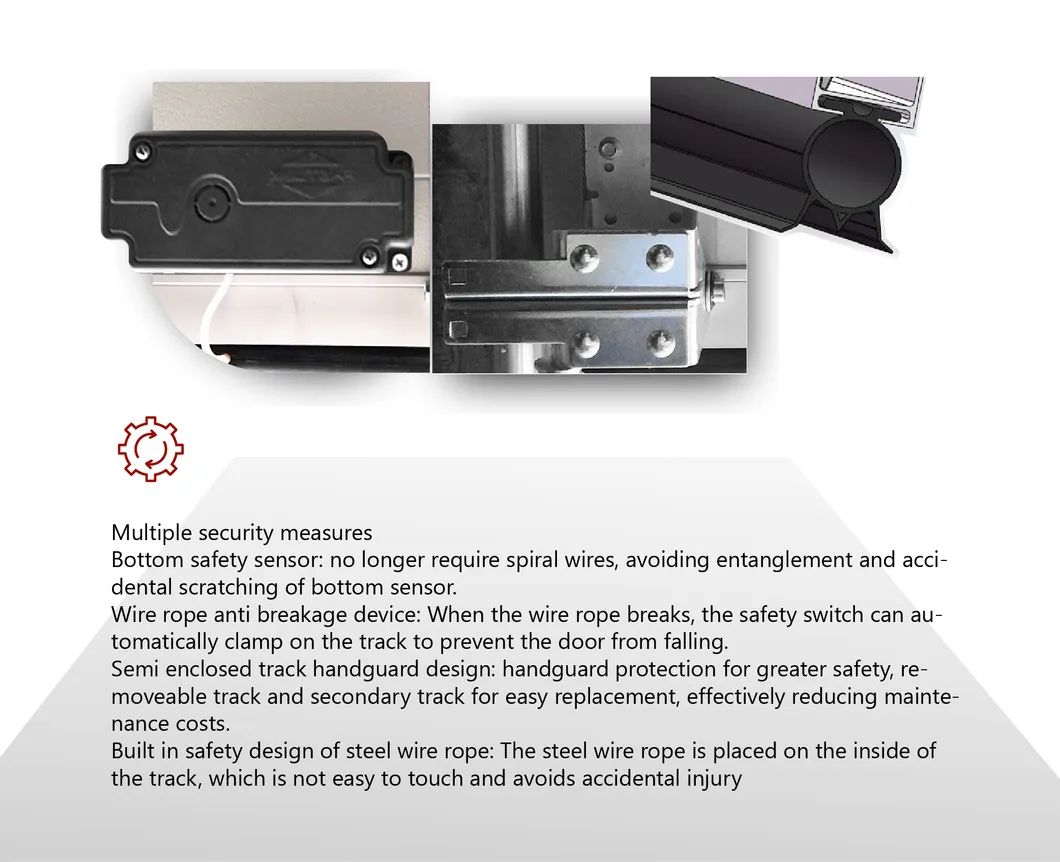

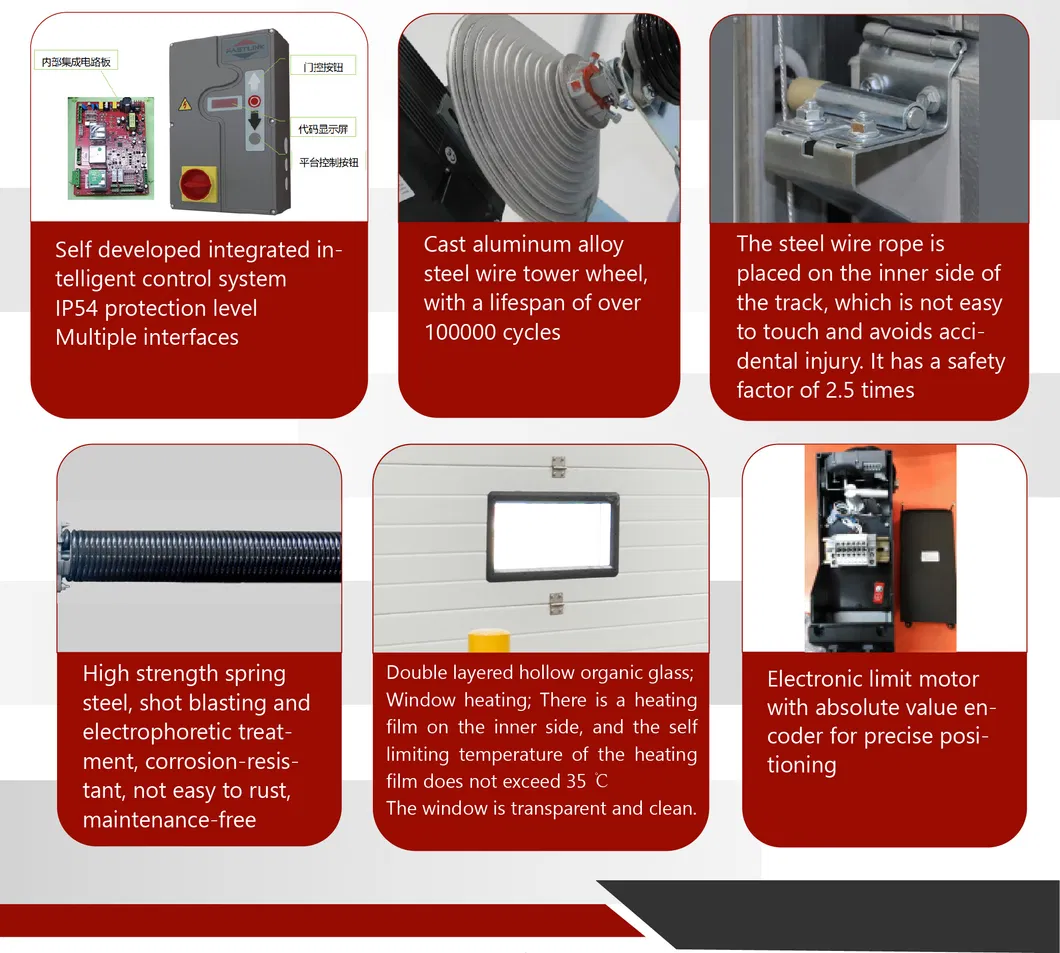

Safety Devices	Wire rope anti-breaking, Spring anti-breakage, Anti-pinch panel

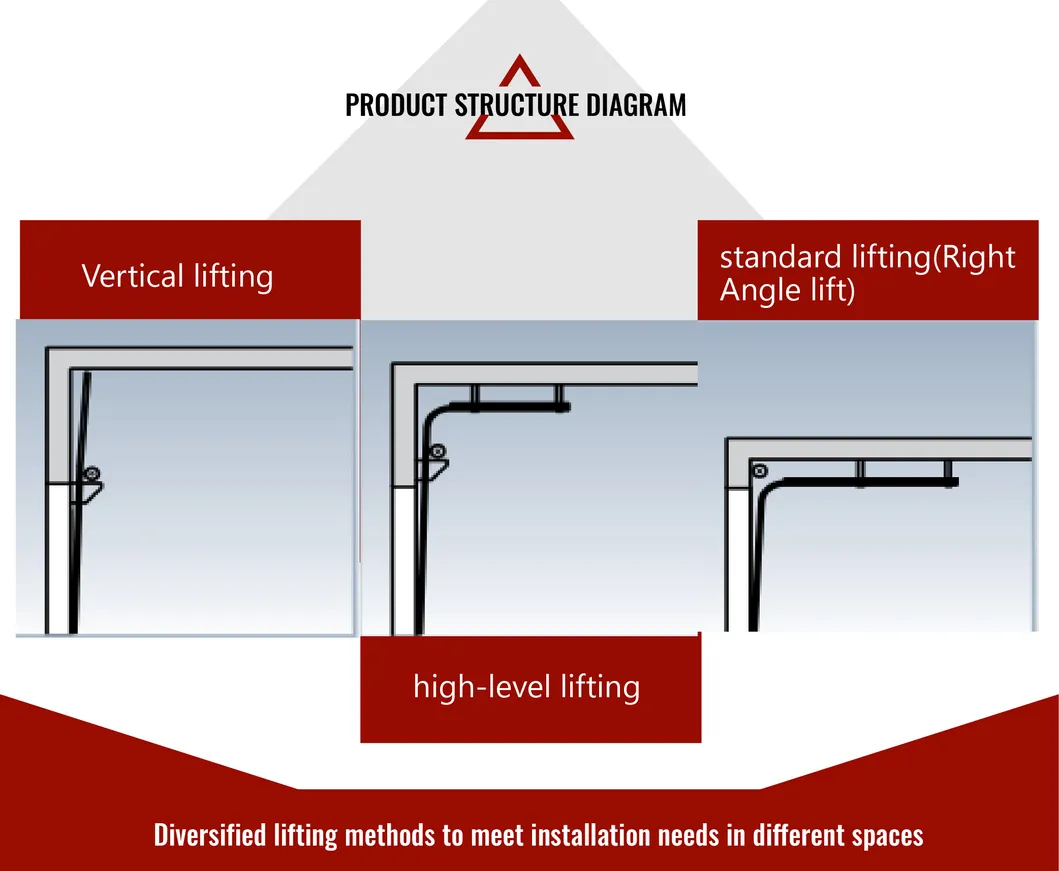

Lifting Mode	Vertical Lift / High Lift / Standard Lift
Motor	Electronic limit motor with absolute encoder
Control System	Fault code display, fire linkage, interlock function

📦 Packaging & Logistics

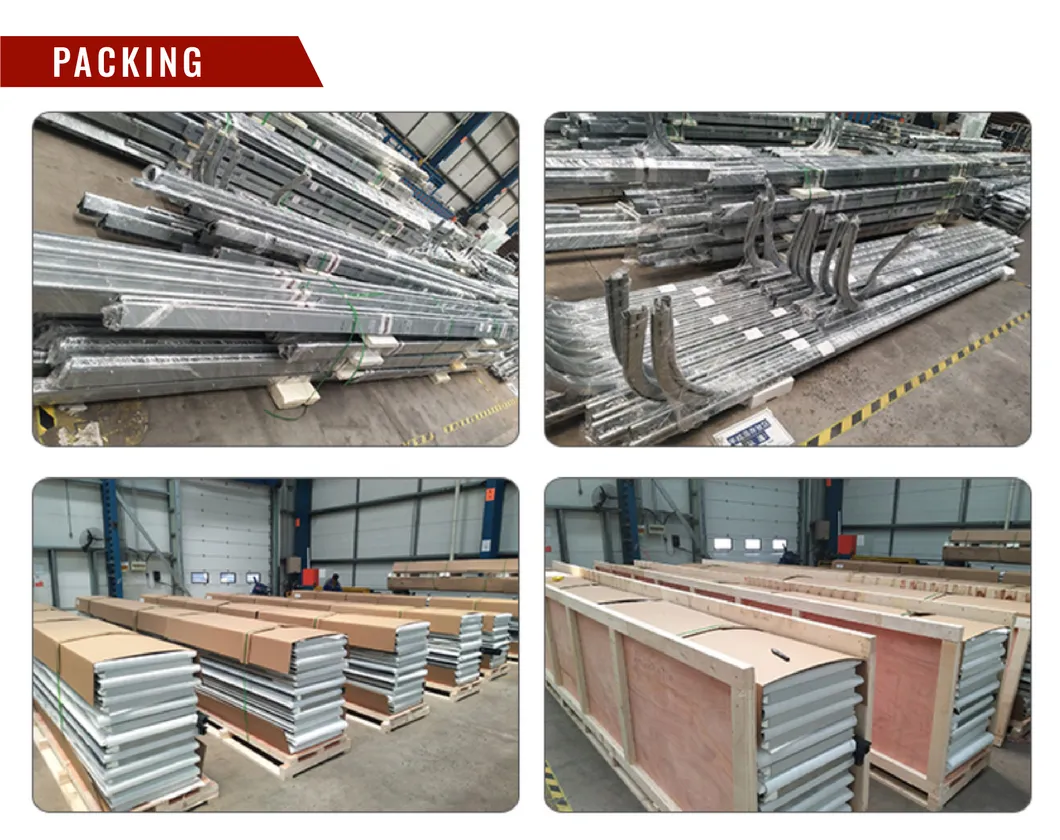

Package

Export Wooden Box

Gross Weight

580.00kg (Bulk) / 240kg (Unit)

Lead Time

30 Days

Production

5000 pieces / Year

💡 Frequently Asked Questions

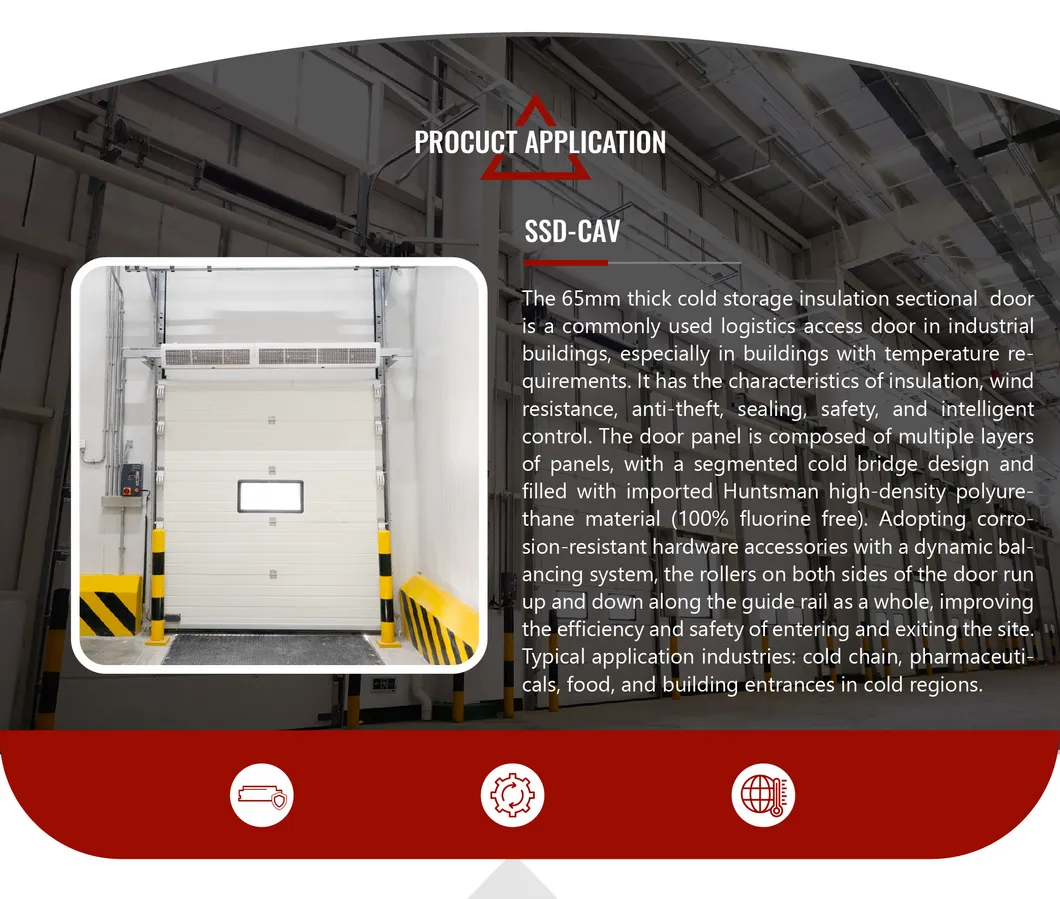

What environments can this door be used in?

The unique cold-breaking structure and sealing design allow for use in cold storage environments above 0°C and natural environments as low as -30°C with excellent insulation.

Is the Insulated Sectional Door safe to use?

Yes, it is CE certified with safety features including bottom rebound sensors, anti-breakage protection for wire ropes and springs, and anti-pinch panel designs.

Sectional Door vs Rolling Shutter Door?

Sectional doors offer superior wind resistance (700Pa) compared to rolling shutters (250Pa), making them much more suitable for coastal or typhoon-prone industrial areas.

How much installation space is needed?

A minimum headroom space of 500mm is required above the door opening.

Can these doors be used in residential garages?

As long as the installation space is sufficient, these industrial-grade doors can certainly be installed in garages for vehicle access.

What is the expected service life?

With proper usage and regular maintenance, these sectional doors can be used for more than 10 years.
