Fastlink Premium Industrial PU Dust-Proof Automatic Energy Efficient Air Tight Insulated Electric Sectional Doors

1 / 5

Fastlink Premium Industrial PU Dust-Proof Automatic Energy Efficient Air Tight Insulated Electric Sectional Doors

Customization:	Available
After-sales Service:	2 Years
Warranty:	1year

Send Inquiry

Product Description

📋 Basic Information

Model NO.

SSD-IAS

Material

Aluminum/Steel

Type

Sliding Sectional

Opening Type

Electric/Manual

Function

Insulation, Wind Resistance

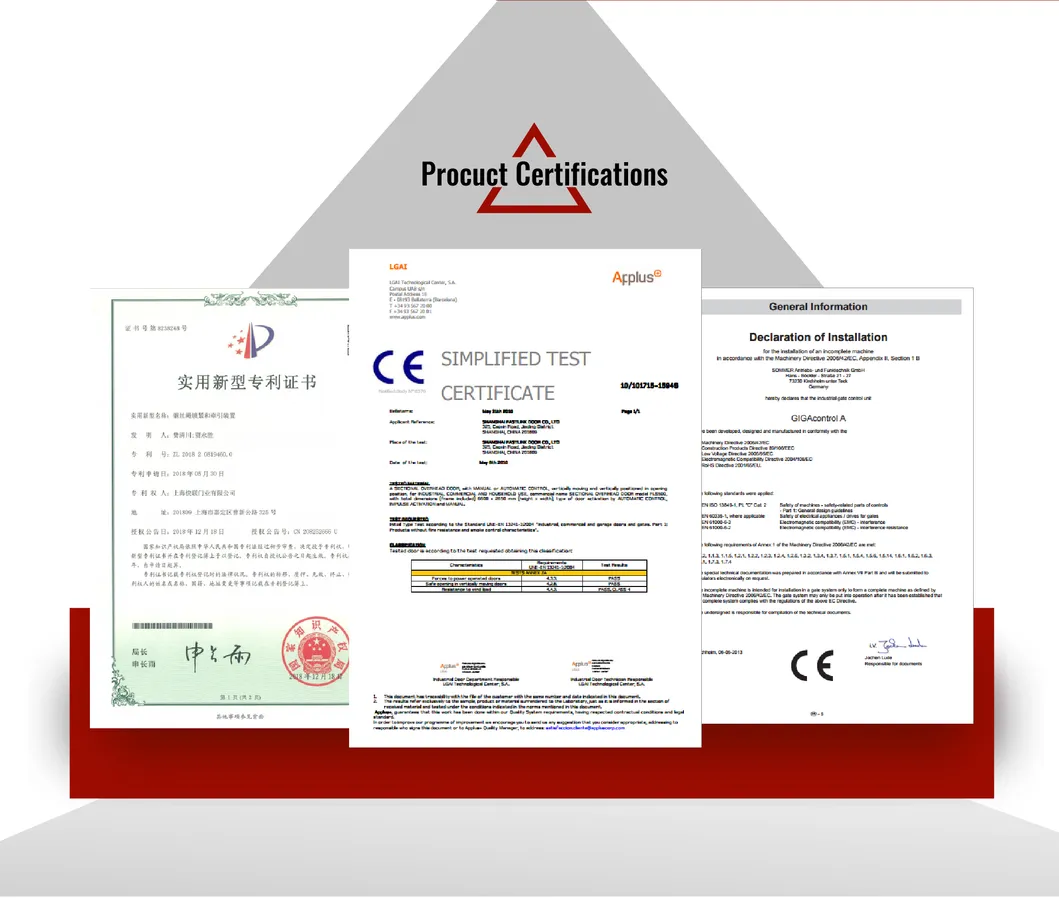

Certification

CE, CPR, UL

Panel Thickness

42mm PU Sandwich

Wind Rating

700pa

Thermal Property

K=1.1W/(M².K)

Max Size

W11500mm * H6000mm

⚙️ Technical Specifications

Attribute	Details
Polyurethane	Huntsman brand, freon-free, density: 48kg/m³

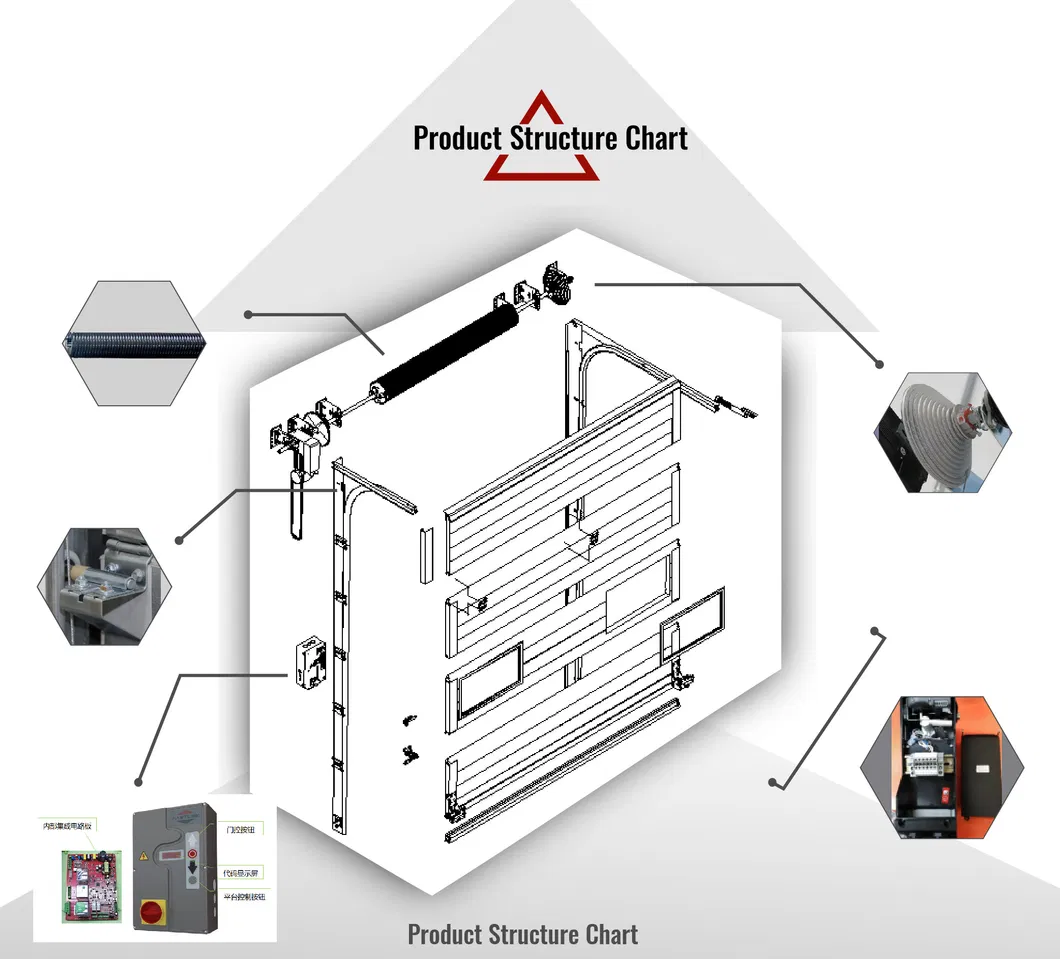

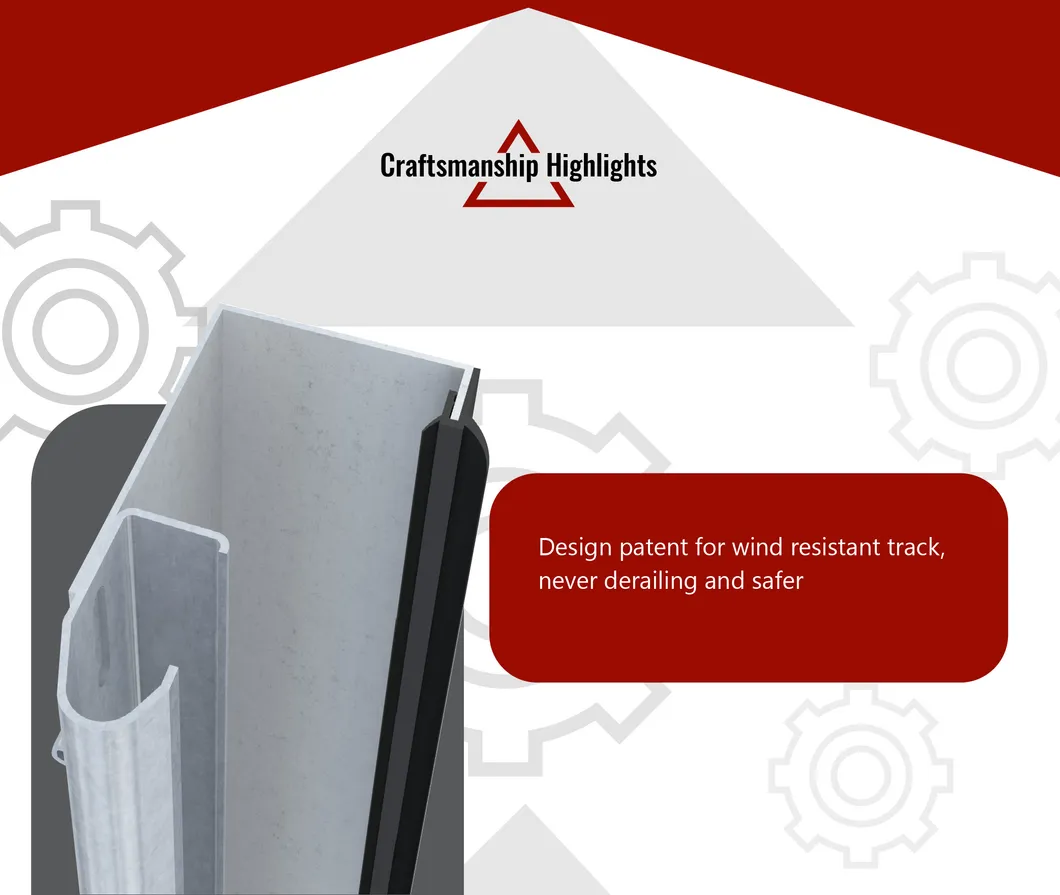

Rail Design	Patented wind-resistant track design

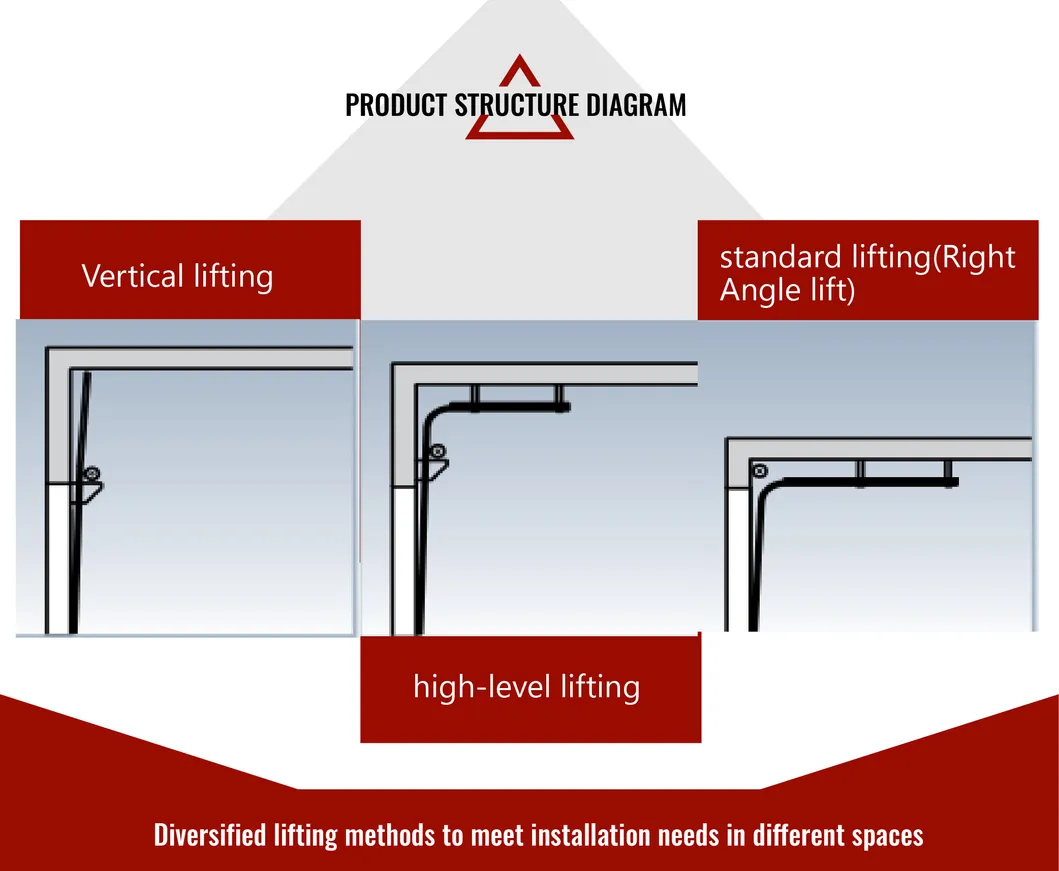

Lifting Mode	Vertical Lift / High Lift / Standard Lift

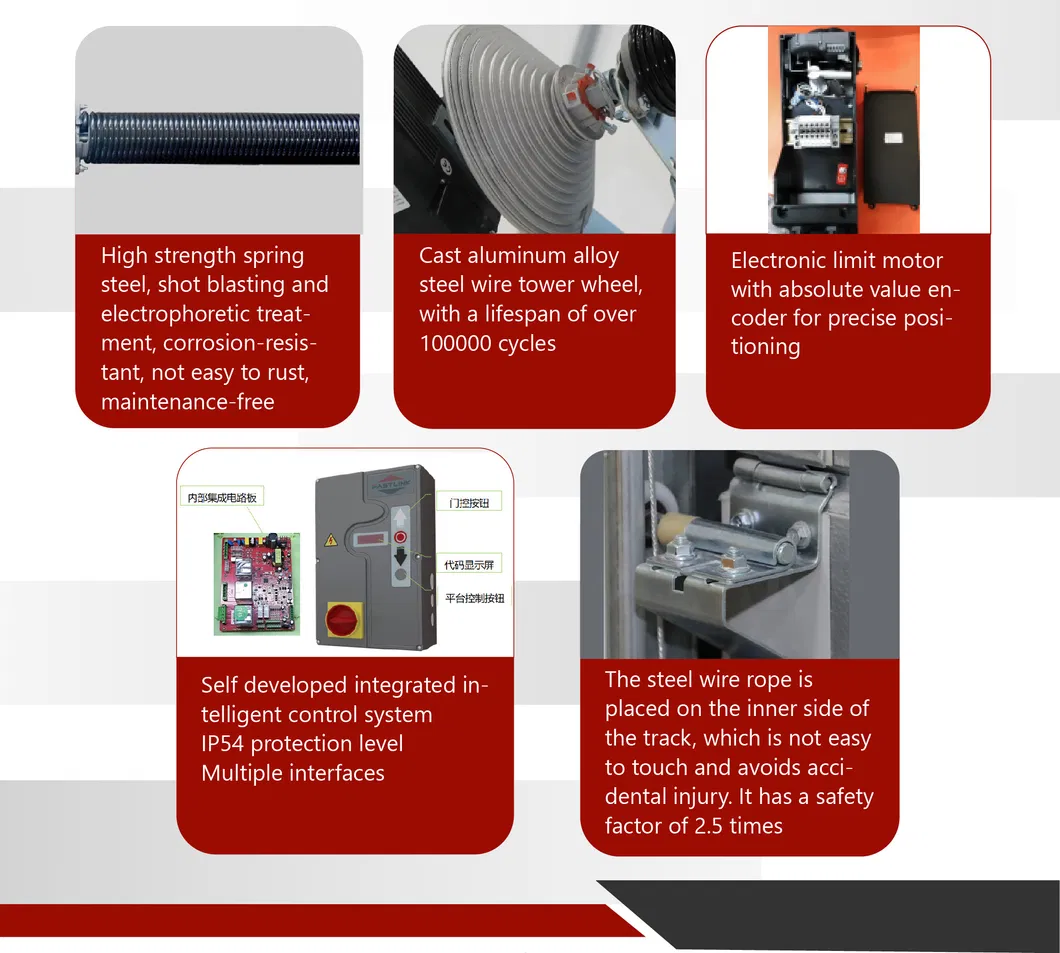

Motor	Electronic limit motor with absolute encoder
Spring	High-strength spring steel, corrosion resistance
Airtightness	Grade 7 (GB/T 7106-2008)

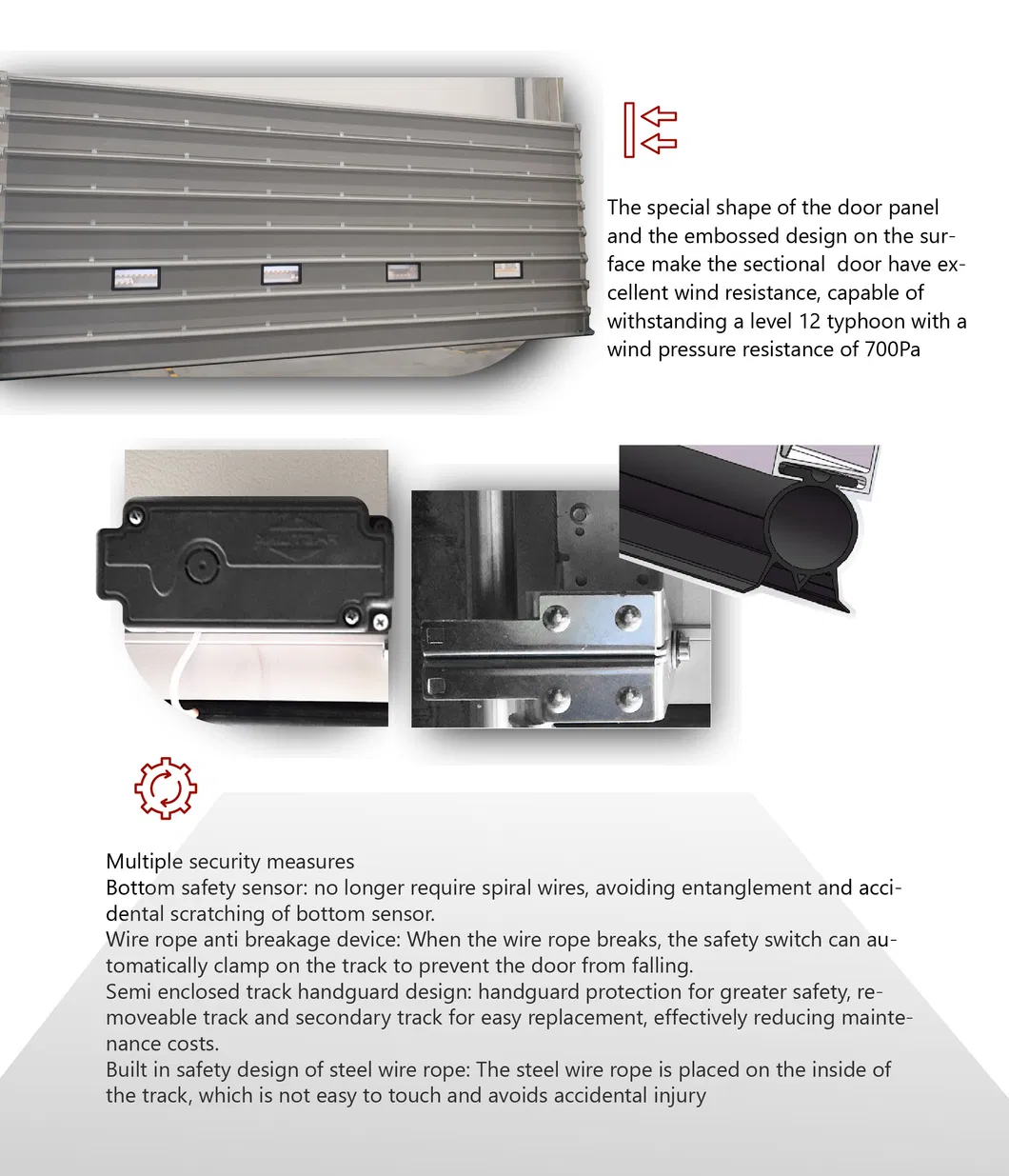

Safety Devices	Wireless bottom safety device, Wire rope anti-breaking

🛡️ Safety & Design Features

❓ Frequently Asked Questions

1. Is the Insulated Sectional Door safe to use?

Yes, it has passed CE certification and includes safety features like rebounding bottom panels, anti-breakage protection for wire ropes/springs, and anti-pinch designs.

2. How much installation space is needed above the door opening?

A minimum space of 500mm is required for installation.

3. Can sectional doors be used in garages?

As long as the installation space is sufficient, it can be installed in a garage for vehicle access.

4. How many years can these sectional doors be used?

With normal maintenance, they can be used for more than 10 years. Proper usage extends their service life.

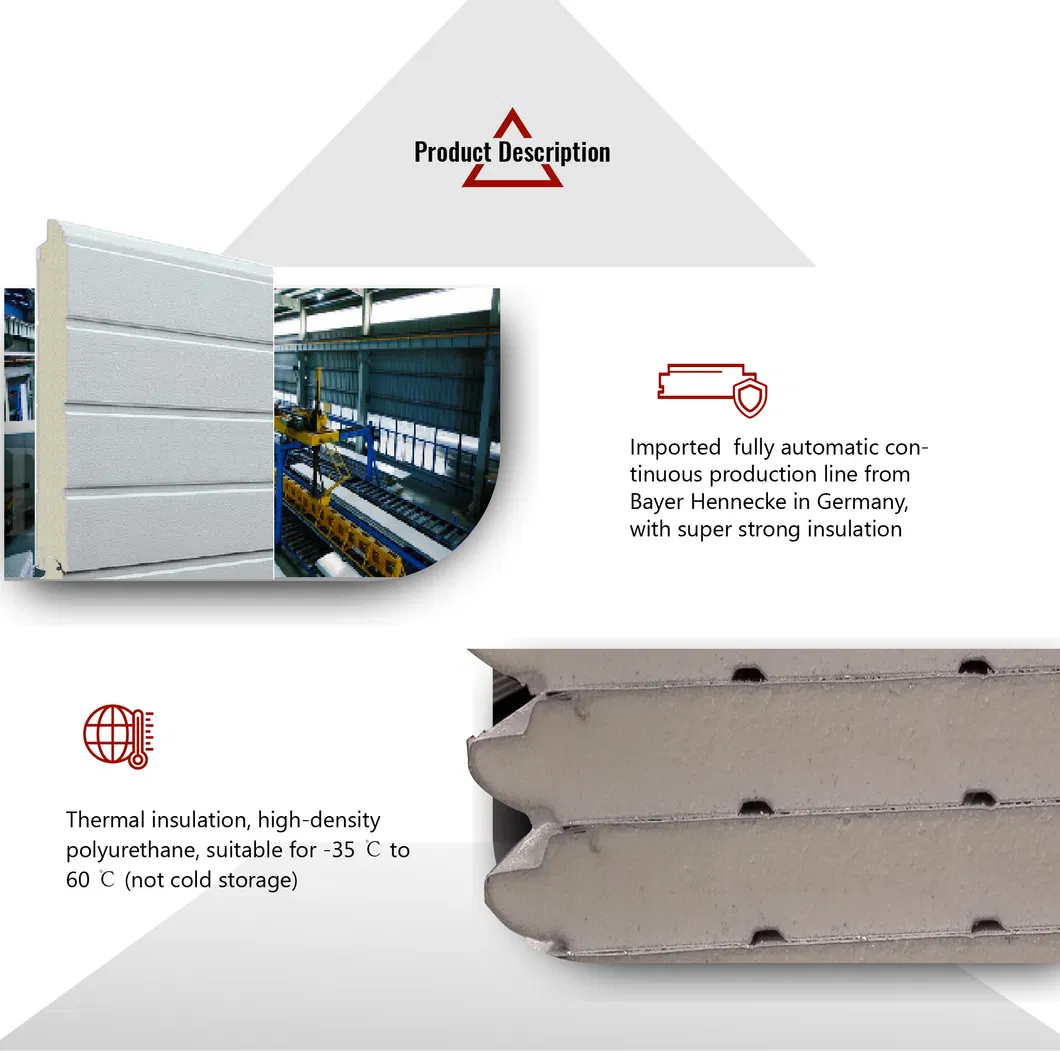

5. What materials are used for the insulation?

The panels use high-density (48kg/m³) freon-free Polyurethane from the Huntsman brand, providing excellent thermal insulation.

6. Are the doors resistant to wind?

Yes, they feature a patented wind-resistant track design and have a wind resistance rating of 700pa.

Fastlink Premium Industrial PU Dust-Proof Automatic Energy Efficient Air Tight Insulated Electric Sectional Doors

Product Description
