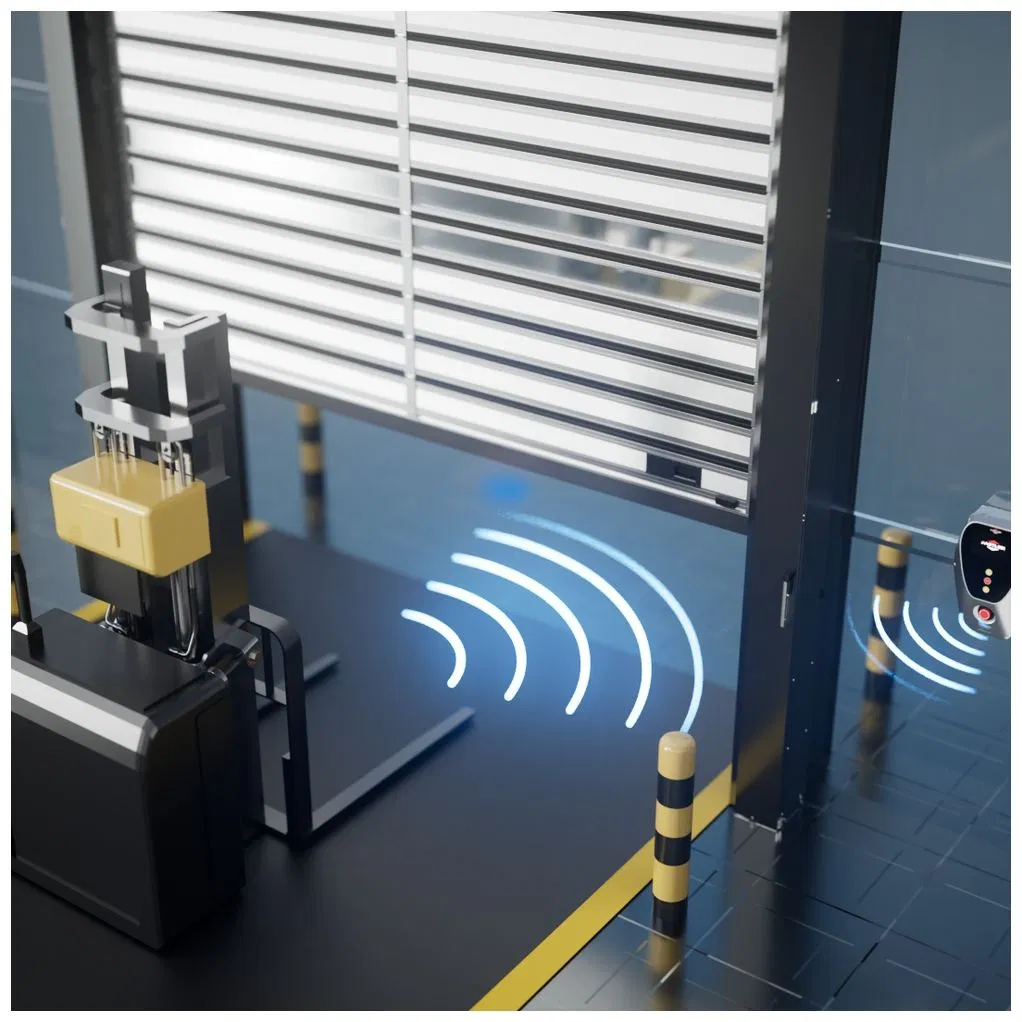

Fastlink High Performance Industrial Logistic Electric Automatic Rapid Roll up Spiral High Speed Doors

1 / 5

Fastlink High Performance Industrial Logistic Electric Automatic Rapid Roll up Spiral High Speed Doors

Customization:	Available
After-sales Service:	2 Years
Warranty:	1 Year

Send Inquiry

Product Description

📊 Basic Specifications

Model NO.

HSV-HAS

Material

Aluminum Alloy

Type

Sliding

Open Style

Electric

Wind Resistance

1500PA~3000PA

Motor

Servo Motor

Certification

Thickness

40mm

⚙️ Technical Parameters

Critical Attributes
Product Name	Spiral High-Speed Door

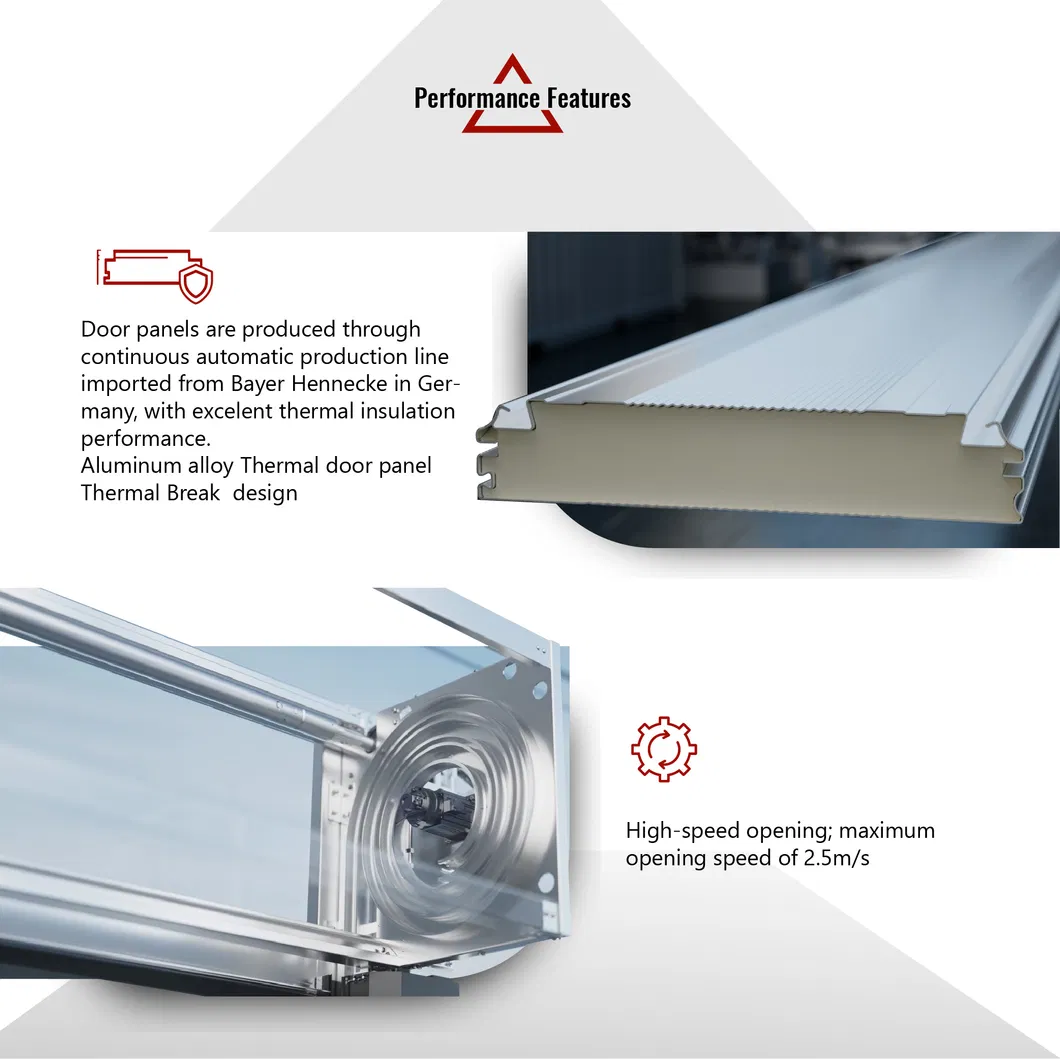

Door Panel Material	Aluminum alloy

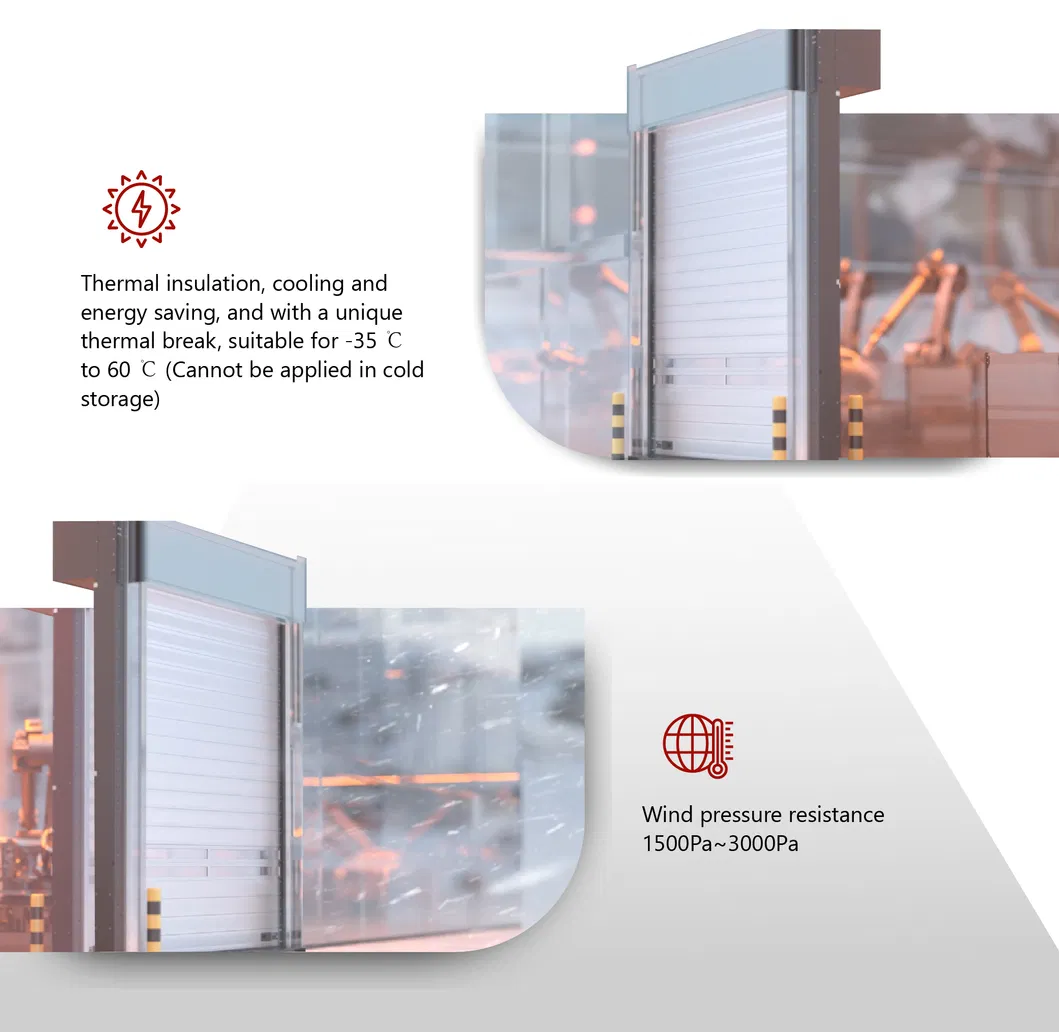

Characteristics	Thermal insulation, wind resistance, anti-theft, sealing, safety, intelligent control
Maximum Size	W8000mm * H9000mm
Speed	Max opening speed 2.5m/s, closing speed 0.8m/s
Water Tightness	Level 6 (GB/T 7106-2019)
Air Tightness	Level 8 (GB/T 7106-2019)
Thermal Insulation	K=1.1W/(m². K)

🖼️ Product Details

📦 Packaging & Delivery

Package Size

464.80cm * 104.80cm * 106.40cm

Gross Weight

580.000kg

Lead Time

30 Days

Package Type

Export Wooden Box

❓ Frequently Asked Questions

How much installation space needs to be reserved above the doorway?

A minimum space of 1000mm is required for standard installation.

Can it withstand typhoon conditions?

The spiral high-speed door features a unique door panel structure and hinge design, providing remarkable stability. A frontal pressure of 700pa will not have any impact on the door.

Can Spiral high-speed doors be used in garages?

Yes, they are widely used in civil and commercial garages. They can be controlled via remote control or mobile app, providing security, anti-theft, and wind resistance.

Is this door convenient to operate?

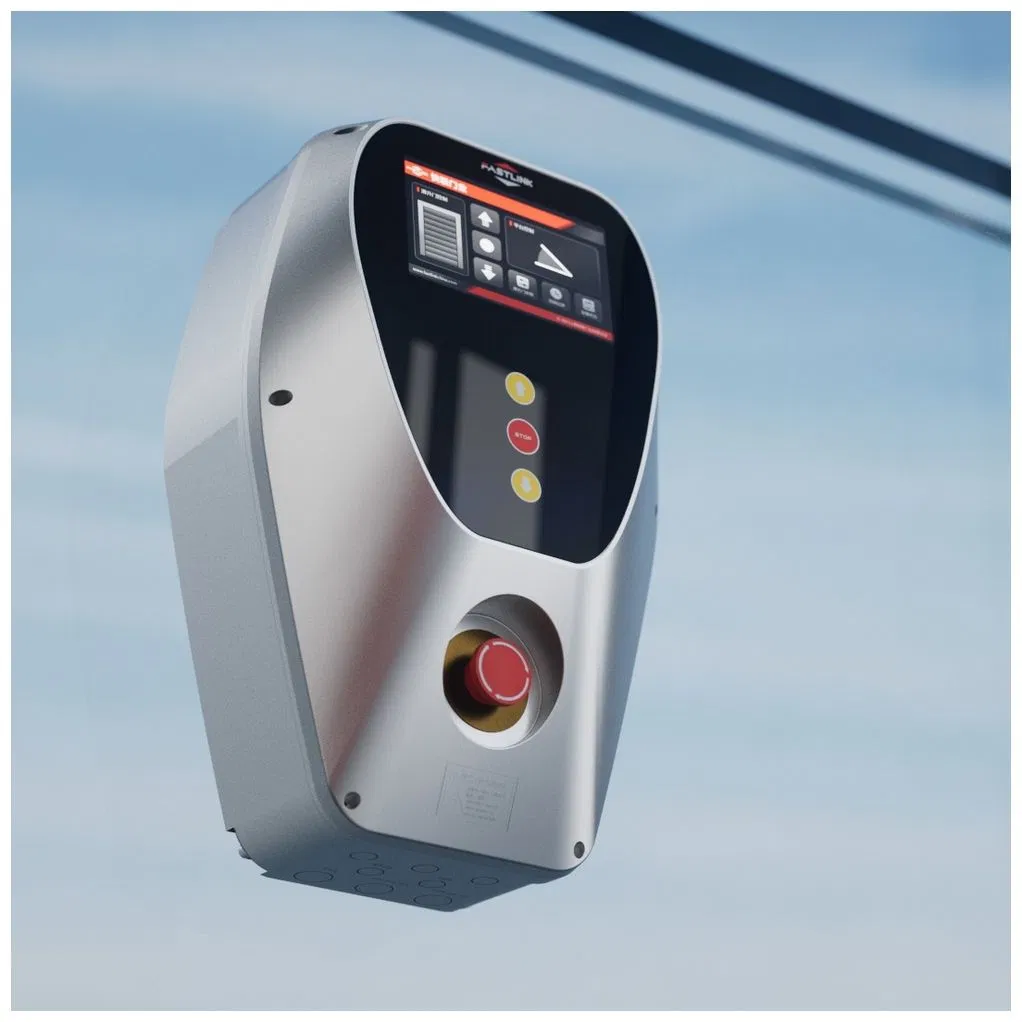

The door is designed with modular integrated circuits. The control box features simple on/off/stop buttons. We also provide recommended operating guides and 24-hour remote guidance.

How often do spiral high-speed doors need to be maintained?

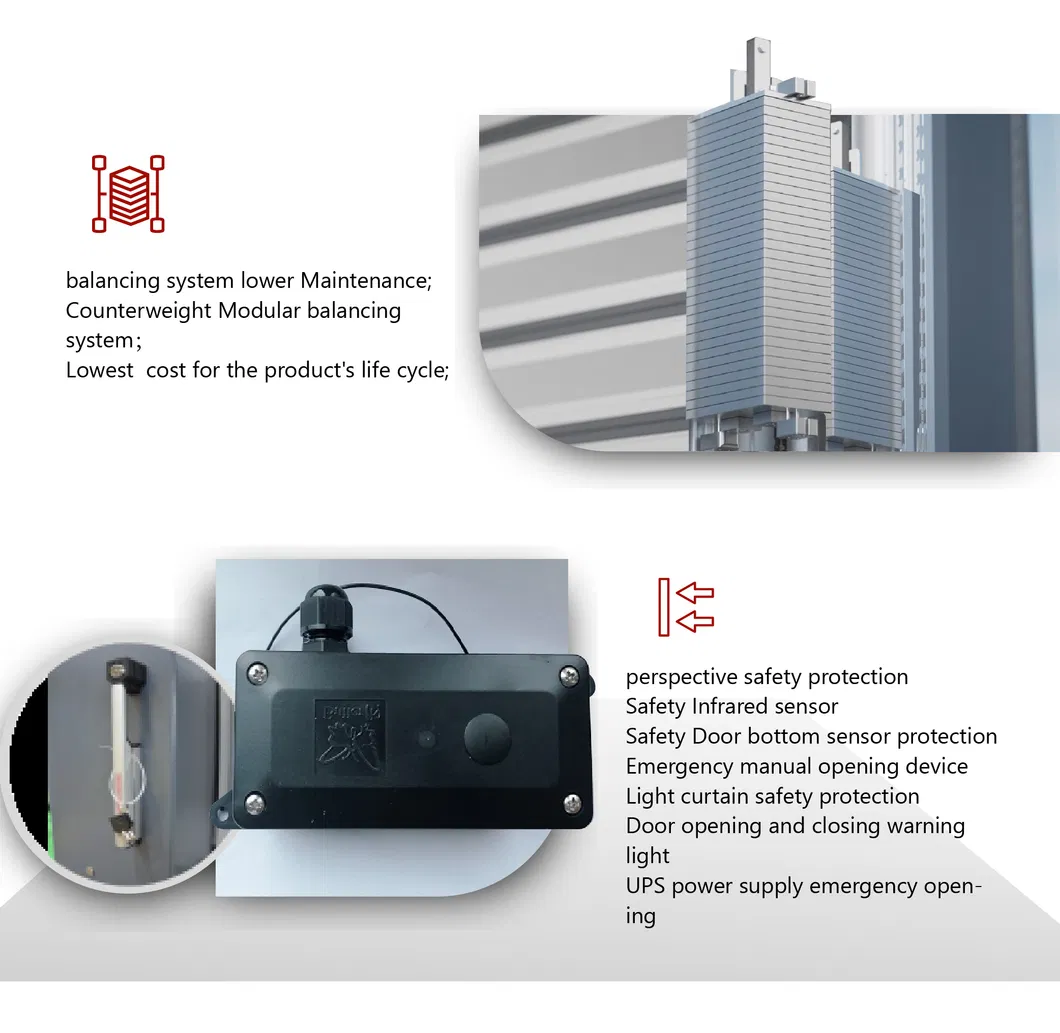

Thanks to the counterweight balancing system, they do not require maintenance for up to 1 million uses. However, a maintenance check once a year or every 200,000 times is recommended for optimal performance.

What is the wind-resistant performance rating?

The wind-resistant performance is rated between 1500pa and 3000pa according to JG/T302-2022 standards.
