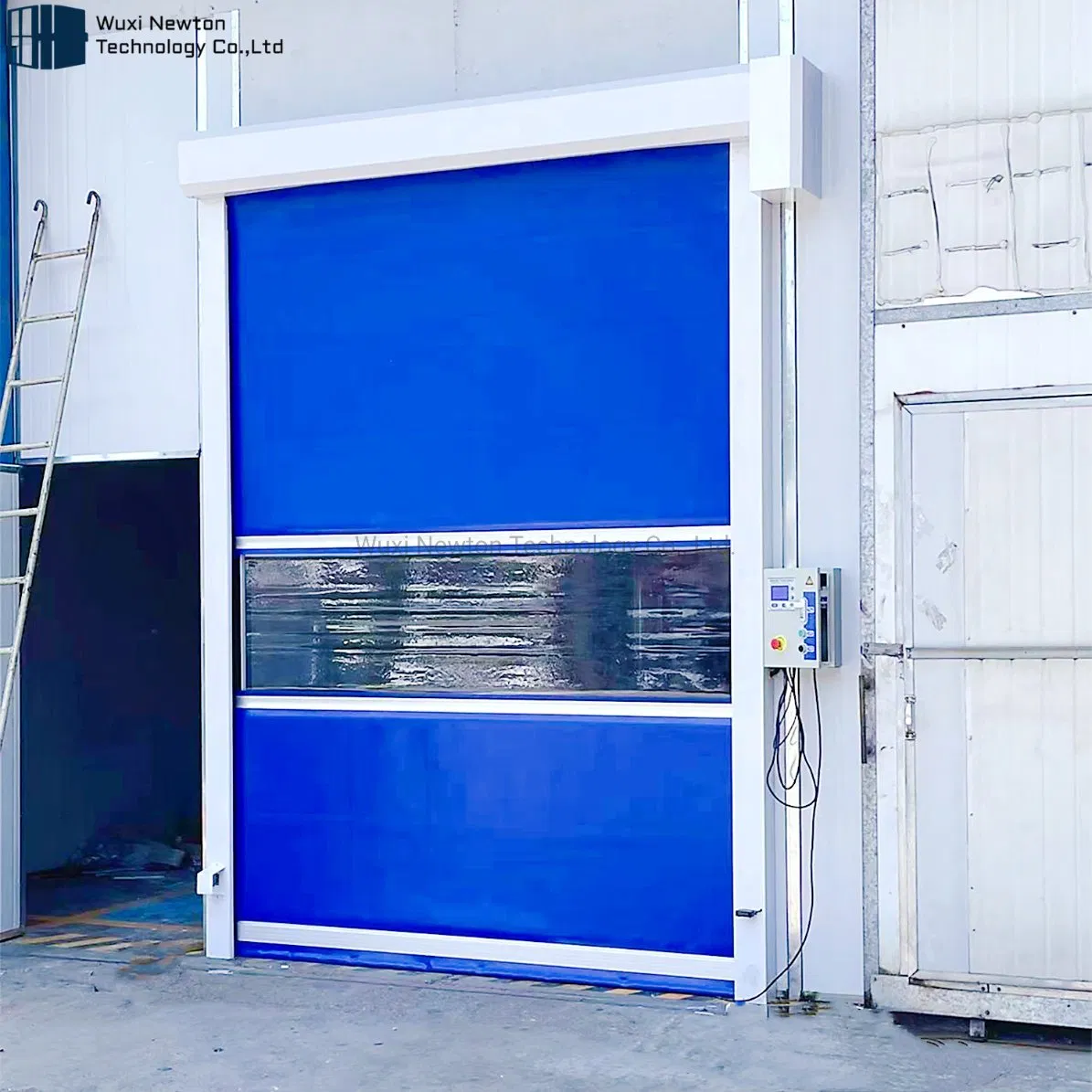

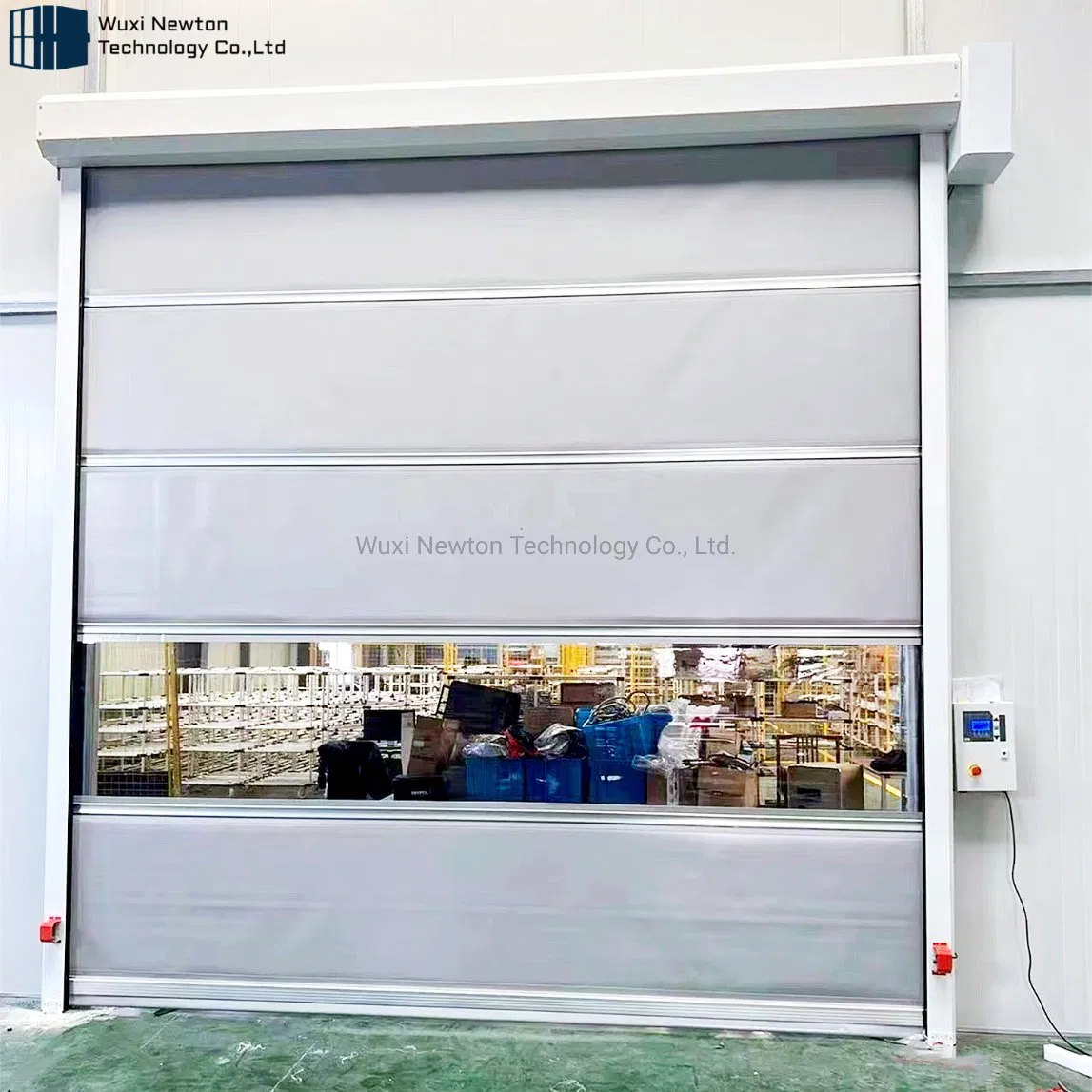

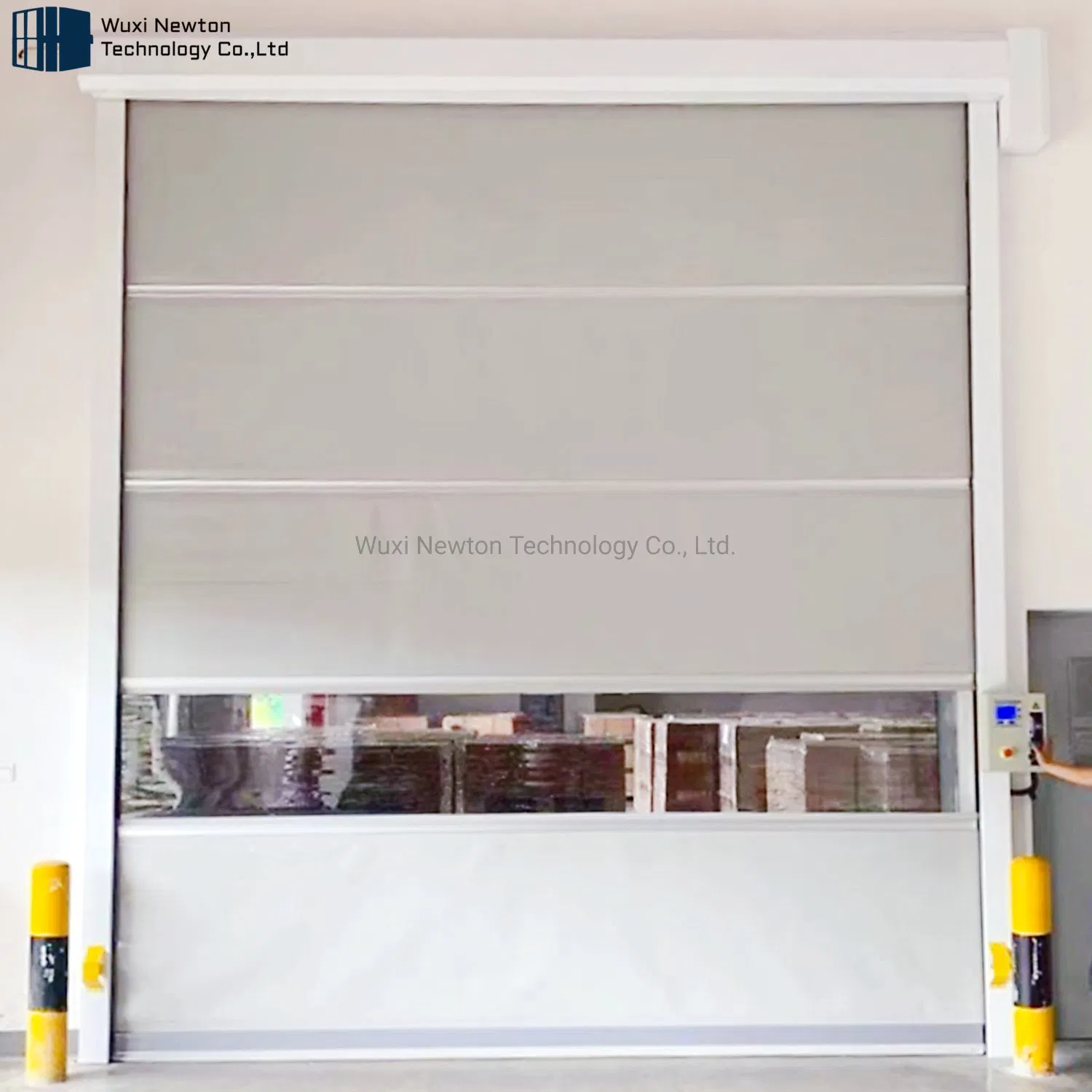

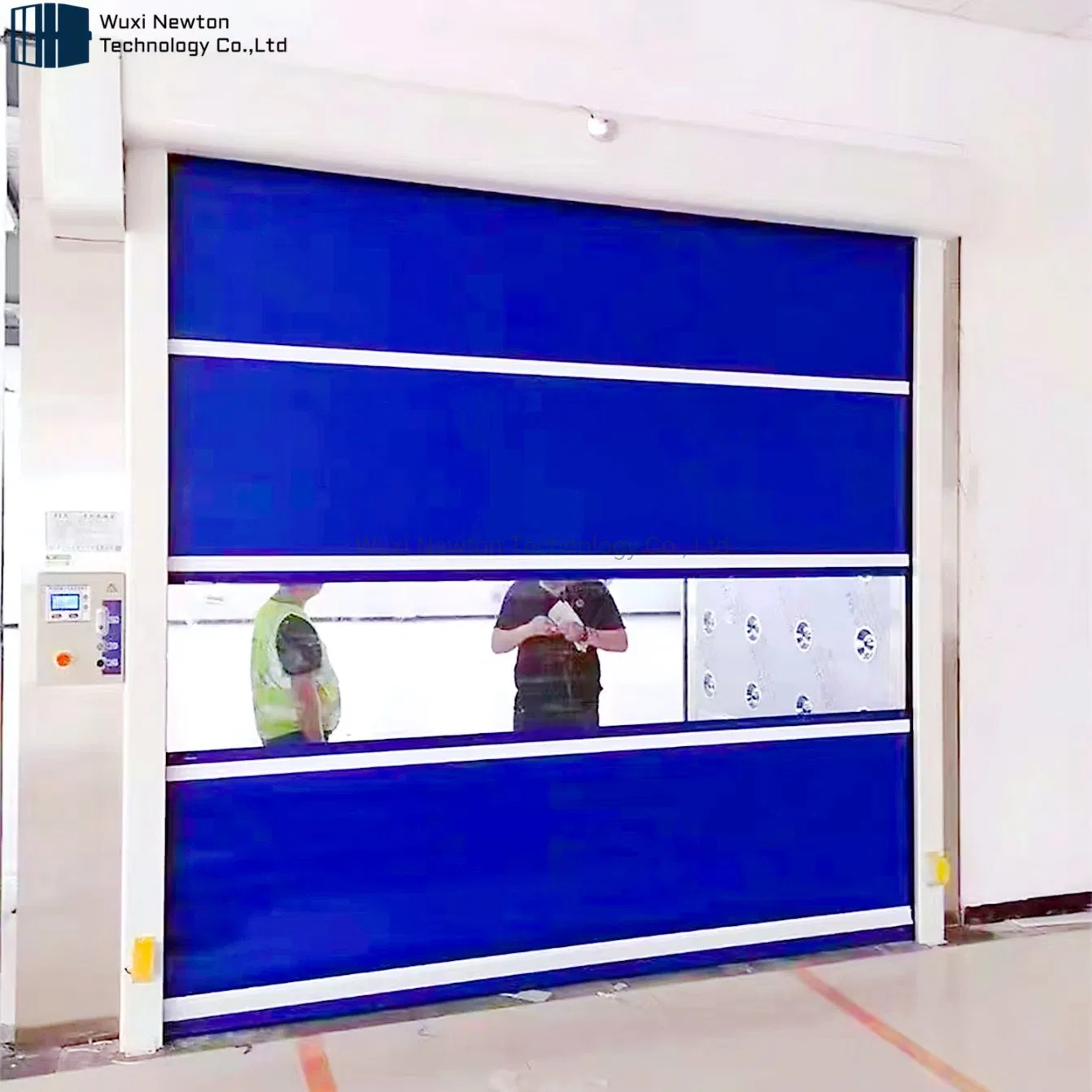

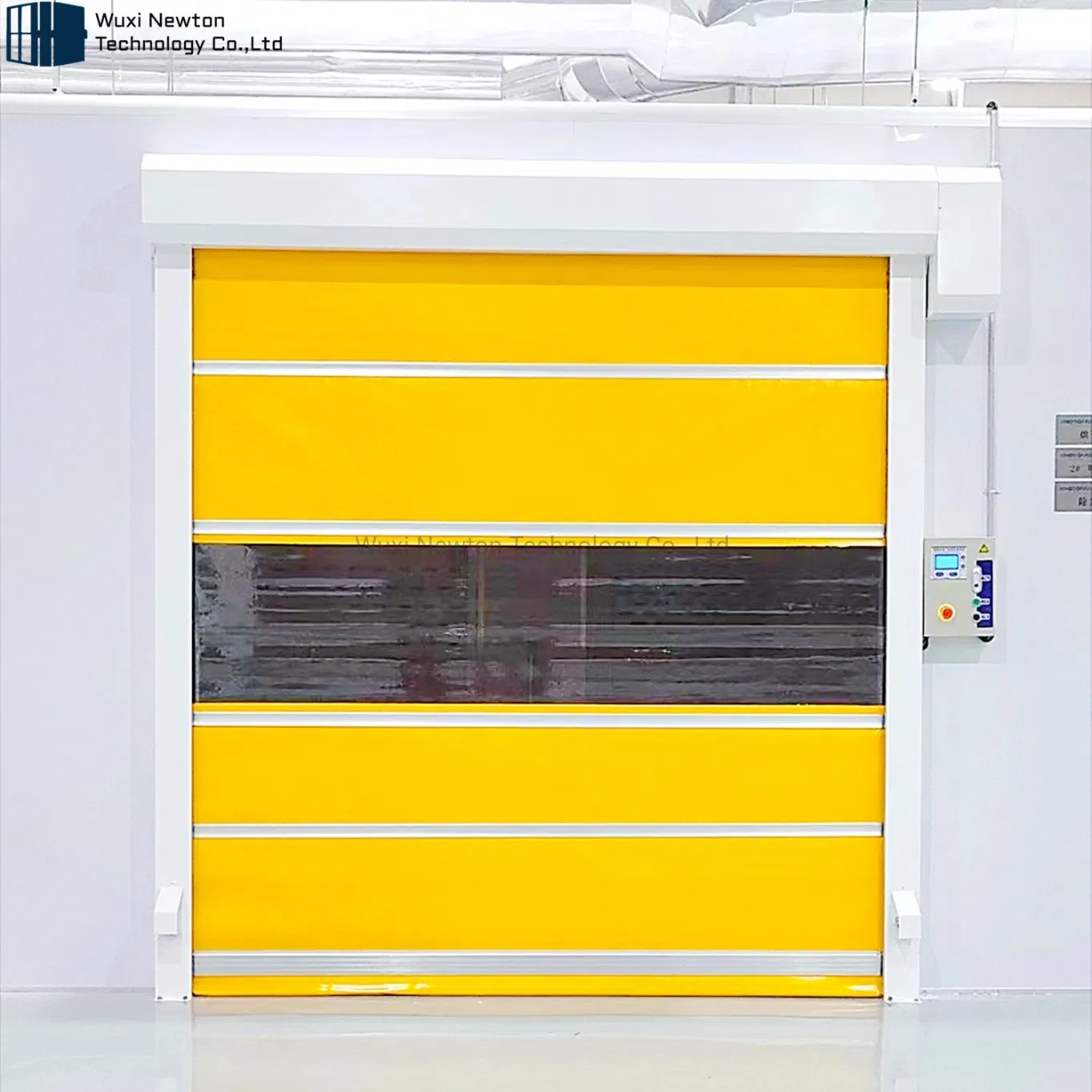

High Speed Roll PVC Windproof Anti-Dust Industrial Automatic High Speed Door
High Speed Roll PVC Windproof Anti-Dust Industrial Automatic High Speed Door
High Speed Roll PVC Windproof Anti-Dust Industrial Automatic High Speed Door
High Speed Roll PVC Windproof Anti-Dust Industrial Automatic High Speed Door
High Speed Roll PVC Windproof Anti-Dust Industrial Automatic High Speed Door
1 / 5
High Speed Roll PVC Windproof Anti-Dust Industrial Automatic High Speed Door
High Speed Roll PVC Windproof Anti-Dust Industrial Automatic High Speed Door
High Speed Roll PVC Windproof Anti-Dust Industrial Automatic High Speed Door
High Speed Roll PVC Windproof Anti-Dust Industrial Automatic High Speed Door
High Speed Roll PVC Windproof Anti-Dust Industrial Automatic High Speed Door

High Speed Roll PVC Windproof Anti-Dust Industrial Automatic High Speed Door

Customization: Available
After-sales Service: Available
Warranty: 12 Months
Send Inquiry

Product Description

📦 Basic Information
Model NO.
NTHD
Material
Steel
Opening Type
Power Driven
Special Function
Wind and Insect Resistant
Certification
ISO9001
Application
Electrical, Food, Pharmacy, Chemical
Speed
0.8-1.5m/Sec
Max Size
5500*6500mm
Wind Resistance
Level 6
Safety Standard
En ISO 12100
📝 Product Overview

The PVC high speed roller shutters feature a specialized high-speed partition function. Utilizing a cold splicing process, the curtain remains smooth and aesthetically pleasing. Segmented splicing significantly reduces maintenance costs while ensuring reliability, practicality, and easy operation. This door is an economical selection for facility entrances to prevent environmental contamination, widely used in electrical, mechanical, food, pharmacy, chemical, textile, and logistics sectors.

High Speed Door Overview
⚙️ Technical Parameters
  • Opening/Closing speed: 0.8m-1.5m/sec
  • Control box: Digital tube, frequency conversion control system
  • Limit switch: Multi-turn absolute encoder
  • Wind resistance rating: Maximum level 6 with sectional wind-resistant ribs
  • Transparent window: PVC full transparent film, 1.5mm thickness
  • Sealing: U-shaped airbag cloth pocket and double-row brush seal
  • Test life cycle: Reaches 800,000 times per year
  • Safety configuration: Infrared photoelectric, pressure airbag, warning light

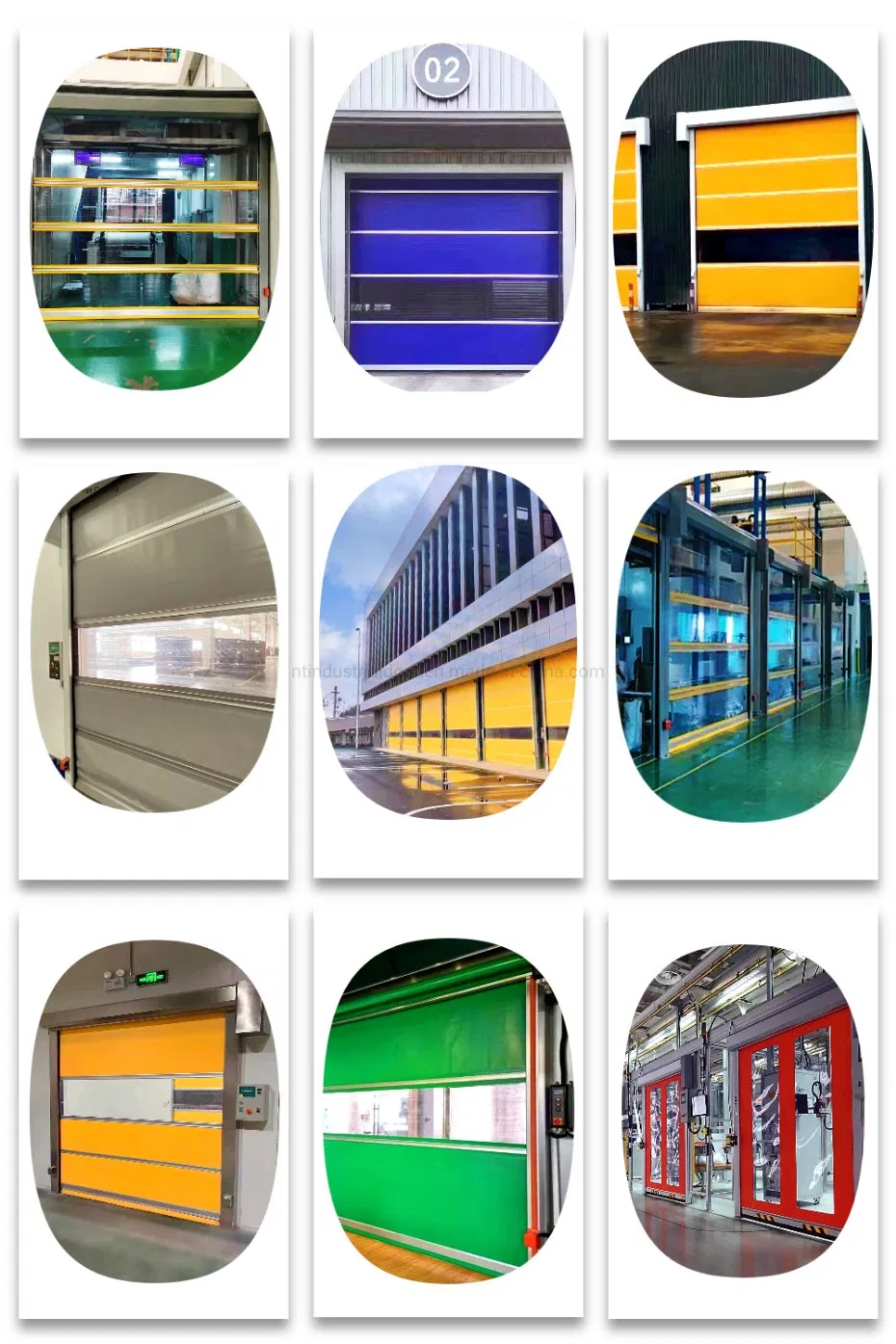

PVC Door Detail

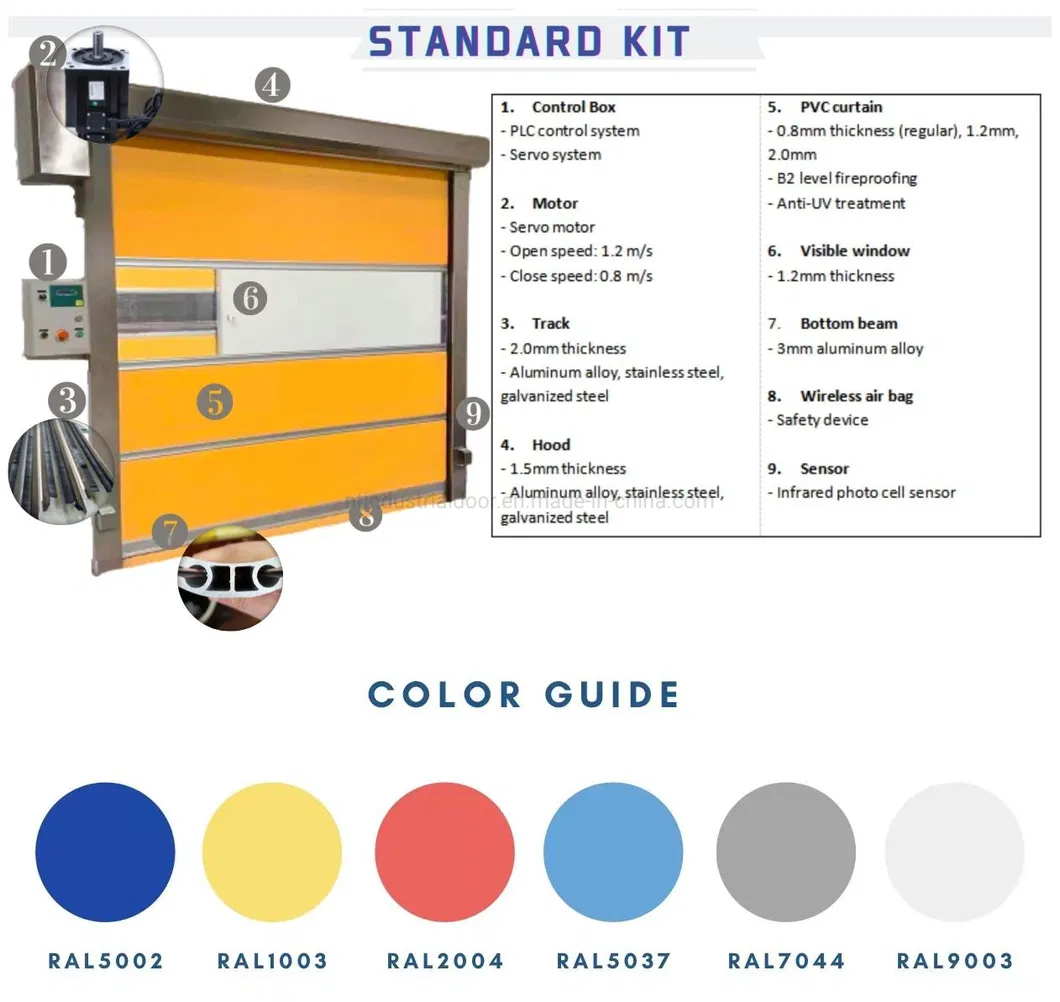

High Speed Door Operation
🕹️ Opening Methods

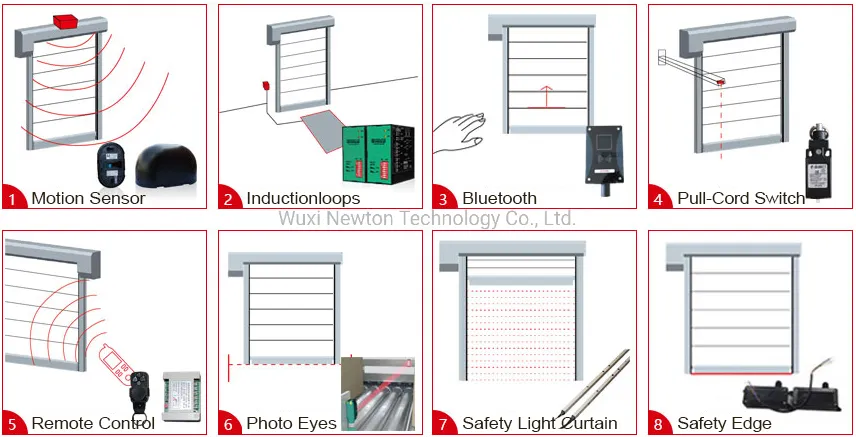

Opening Control Methods
  • Motion sensor / Induction loops
  • Bluetooth / Remote control
  • Pull-cord switch
  • Photo eyes / Safety light curtain
🛠️ Installation Steps
Step 1Door steel frame installation
Step 2Door curtain installation
Step 3Mount the motor
Step 4Mount the door cover
Step 5Safety device installation (Infrared, etc.)
Step 6Speed and stroke debugging
🚢 Package & Service

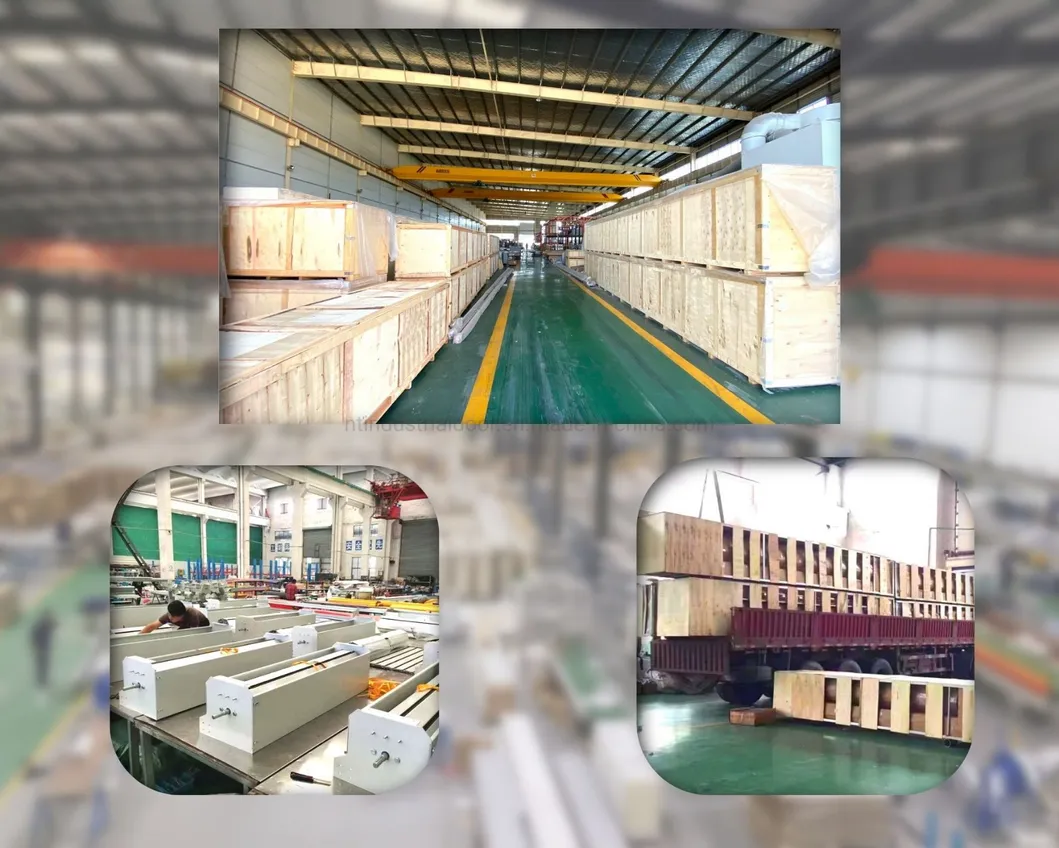

Package: Qualified plywood for LCL; Qualified carton or pallet for FCL. Custom packaging available based on specific requirements.

Packaging Detail
Service Scope
  • Factory and production online inspection
  • One year warranty for accessories free of charge
  • Full installation video and document support
  • Timely response for technical problem solving

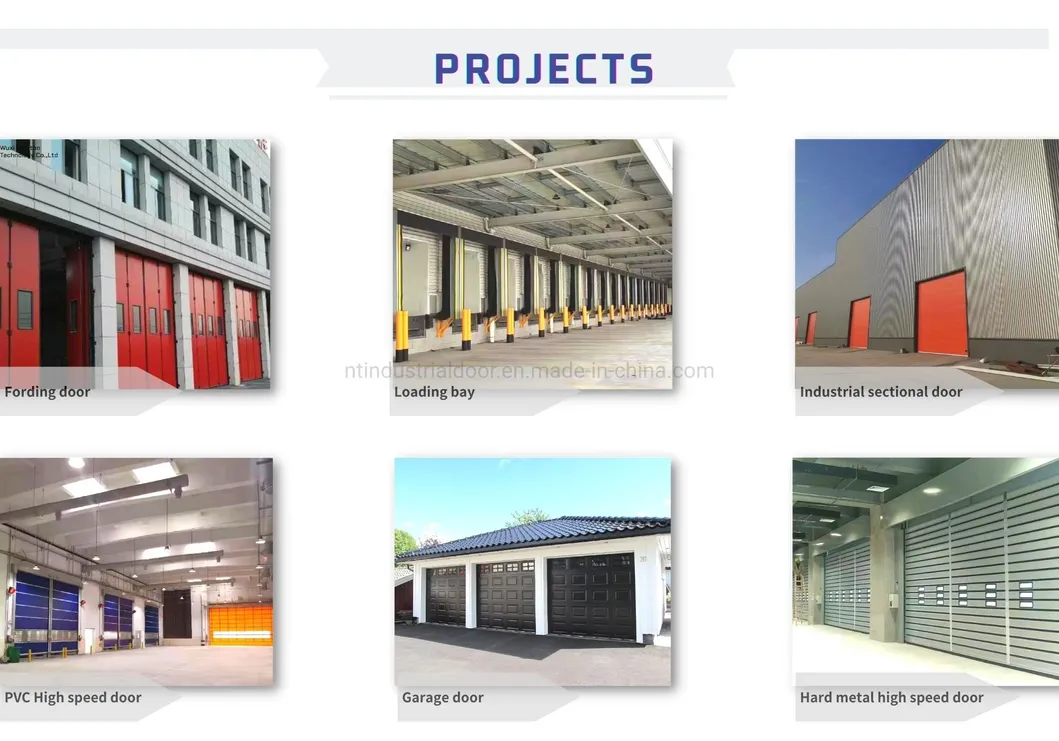

Product Range Exhibition
❓ Frequently Asked Questions
Q1: What is the maximum wind resistance of this high-speed door? The door features a sectional wind-resistant rib design, reaching a maximum wind resistance of Level 6.
Q2: How fast do these doors open and close? The opening and closing speed ranges from 0.8m/sec to 1.5m/sec, depending on your settings.
Q3: What safety features are included as standard? Standard configurations include infrared photoelectric protection, a pressure airbag, a warning light, and an anti-collision pillar.
Q4: Can the door be customized in terms of size? Yes, we support customization with a maximum standard size of up to 5500mm x 6500mm.
Q5: What is the expected service life of the door? The door is tested to reach a service cycle of 800,000 times per year, or approximately 500 operations per day.
Q6: Do you provide installation guidance? We provide comprehensive installation videos, technical documents, and online guidance to ensure successful setup.
