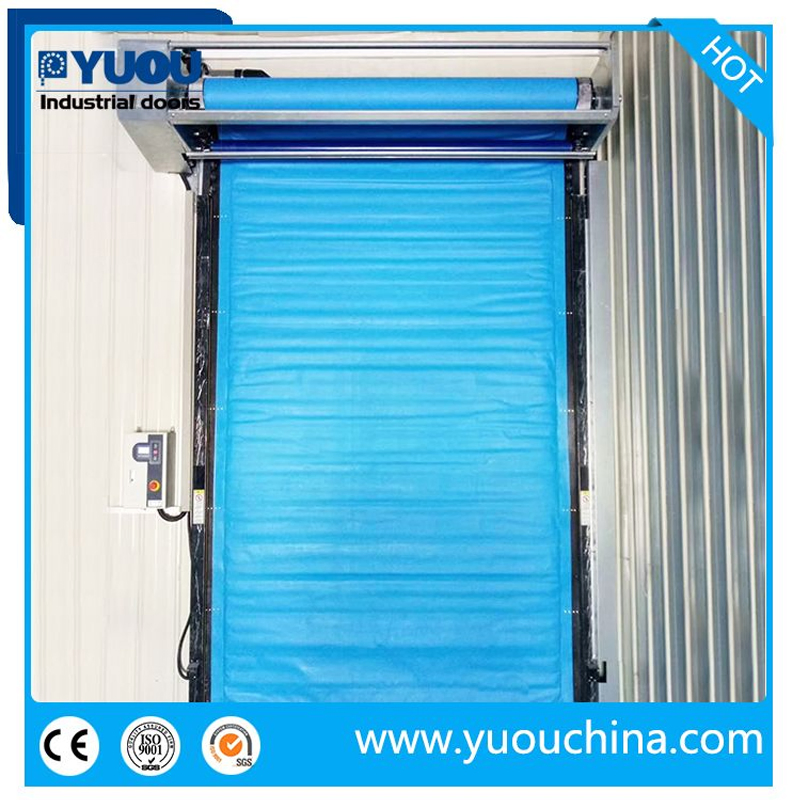

Industrial Automatic Thermal Insulated PVC Fabric Freezer Room High Speed Rolling Rapid Roll up Fast Roller Shutter Rapid Doors for Cold Storage/Room
Industrial Automatic Thermal Insulated PVC Fabric Freezer Room High Speed Rolling Rapid Roll up Fast Roller Shutter Rapid Doors for Cold Storage/Room
Industrial Automatic Thermal Insulated PVC Fabric Freezer Room High Speed Rolling Rapid Roll up Fast Roller Shutter Rapid Doors for Cold Storage/Room
Industrial Automatic Thermal Insulated PVC Fabric Freezer Room High Speed Rolling Rapid Roll up Fast Roller Shutter Rapid Doors for Cold Storage/Room
Industrial Automatic Thermal Insulated PVC Fabric Freezer Room High Speed Rolling Rapid Roll up Fast Roller Shutter Rapid Doors for Cold Storage/Room
1 / 5
Industrial Automatic Thermal Insulated PVC Fabric Freezer Room High Speed Rolling Rapid Roll up Fast Roller Shutter Rapid Doors for Cold Storage/Room
Industrial Automatic Thermal Insulated PVC Fabric Freezer Room High Speed Rolling Rapid Roll up Fast Roller Shutter Rapid Doors for Cold Storage/Room
Industrial Automatic Thermal Insulated PVC Fabric Freezer Room High Speed Rolling Rapid Roll up Fast Roller Shutter Rapid Doors for Cold Storage/Room
Industrial Automatic Thermal Insulated PVC Fabric Freezer Room High Speed Rolling Rapid Roll up Fast Roller Shutter Rapid Doors for Cold Storage/Room
Industrial Automatic Thermal Insulated PVC Fabric Freezer Room High Speed Rolling Rapid Roll up Fast Roller Shutter Rapid Doors for Cold Storage/Room

Industrial Automatic Thermal Insulated PVC Fabric Freezer Room High Speed Rolling Rapid Roll up Fast Roller Shutter Rapid Doors for Cold Storage/Room

Customization: Available
After-sales Service: Online Technical Support/Parts Replacement
Warranty: 1.5 Years
Send Inquiry

Product Description

📦 Basic Product Information
Model NO.
YO-Freezer
Material
PU Fabric
Special Function
Thermal Insulated
Opening Type
Induced / Rolling
Color
Red/Blue/Yellow/Green/Gray/Orange/Transparent
Certification
ISO9001, CE
Temperature
-35 to 65 Celsius Degree
Structure
304 Stainless Steel or Powder Coated Gi
Fabric Thickness
20mm
Max Size
3m * 4.5m
Production
5000 pieces/Year
🚚 Packaging & Delivery
Package Size
300cm * 50cm * 80cm
Gross Weight
400.00kg
Transport
Export Wooden Box
🔍 Product Description

Cold storage rapid door widely used in food, chemical, textile, electronics, supermarket, cold storage, logistics, warehousing and other production efficiency, dust-free and high temperature level requirements.

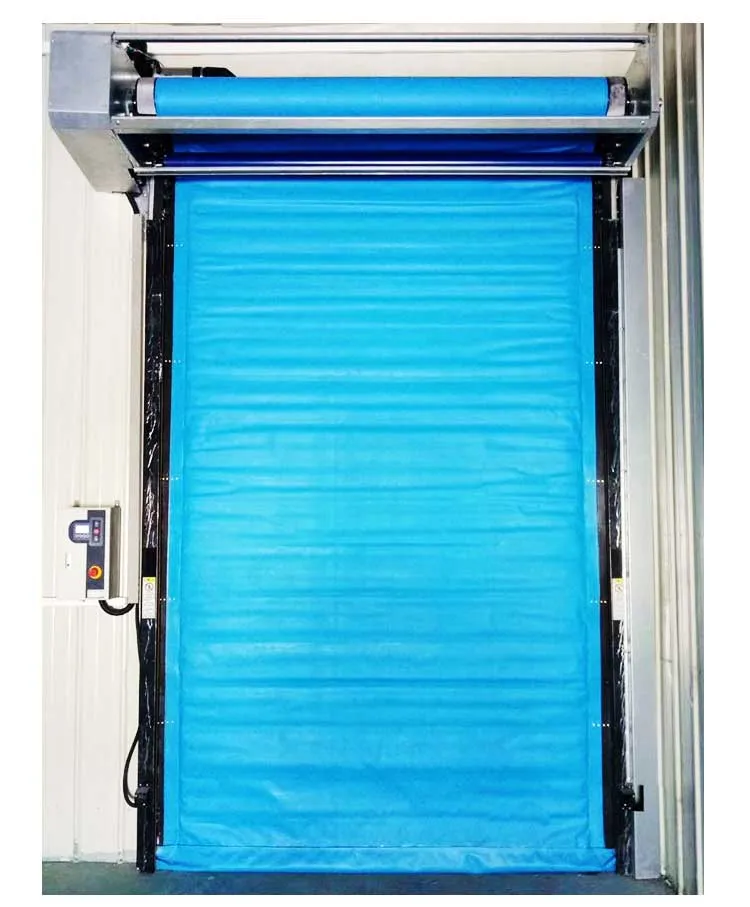

Freezer Room High Speed Door
⚙️ Technical Data
220 V Freezer Room Insulated Cold Storage Door
Max DimensionWidth 3500mm * Height 4000mm
Power Supply220±10%V, 50/60Hz. 0.75-1.5KW
Normal SpeedOpen 1.2m/s | Close 0.6m/s
Max SpeedOpen 2.0m/s | Close 1.0m/s
Opening Frequency1000 times/day
Wind Resistance28m/s (Class 10)

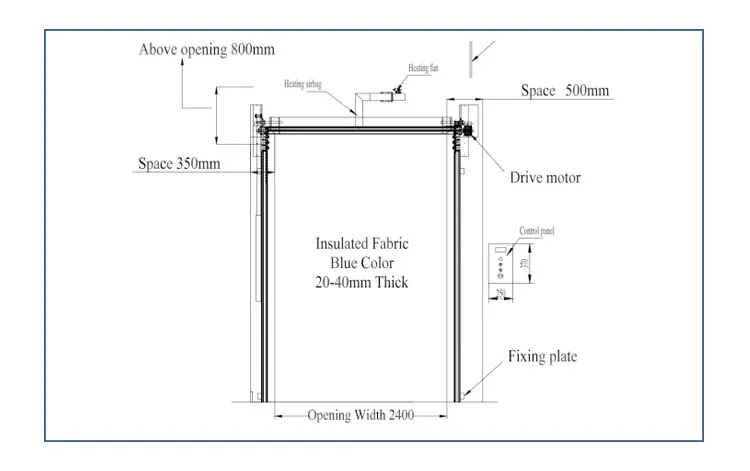

📐 Structure Diagram
Structure Diagram
💡 Product Details
1. PVC Fabric:

Insulated PVC sandwich fabric: double skin is 0.8mm PVC fabric, and inside is filled with high-density insulating rock wool, total thickness is 20mm.

PVC Fabric

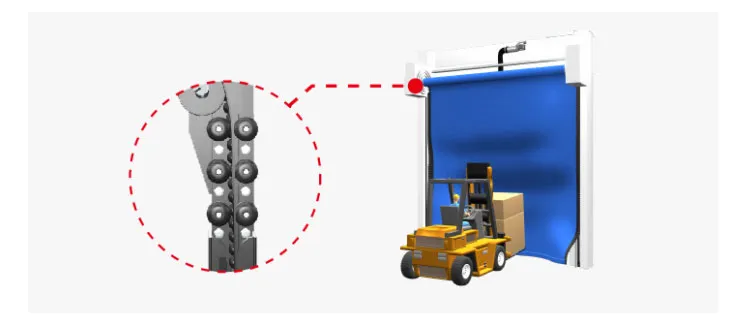

2. Zipper Design:

Use zipper to connect the fabric with frame side guide rail as a whole body, realizing better sealing performance. Self-repairing function allows fabric to return automatically after accidental collision.

Zipper Design

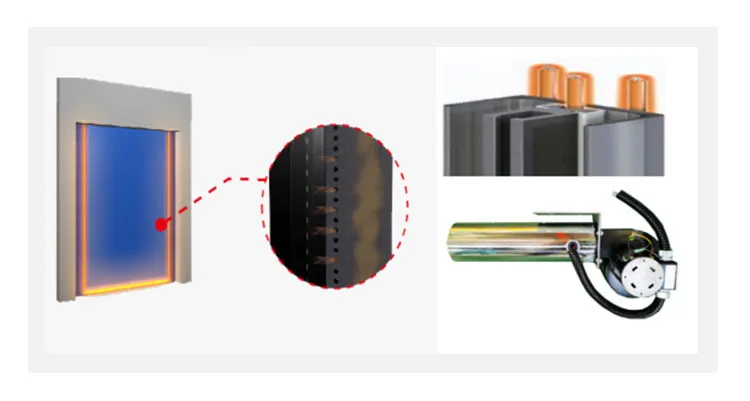

3. Anti-Freezing Heating Design:

All-round heating wire belts avoid freezing of door structure, protecting the driving system in low-temperature environments.

Heating Design
🛡️ Safety Devices

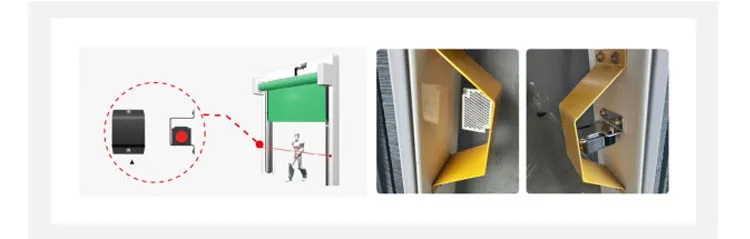

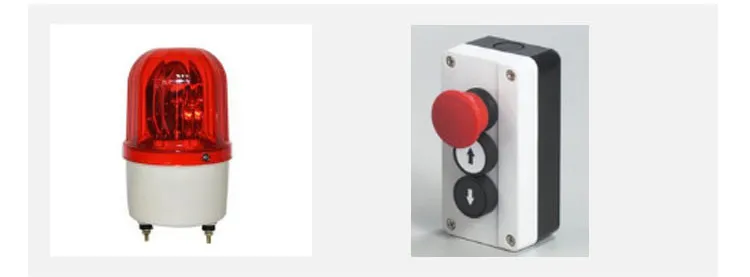

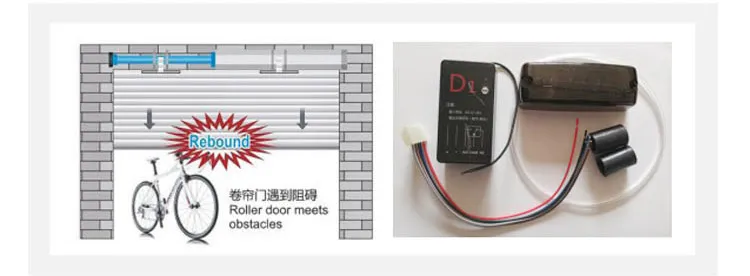

Photo Cell Sensor Bottom Airbag Alarm Light
🎮 Operation Methods

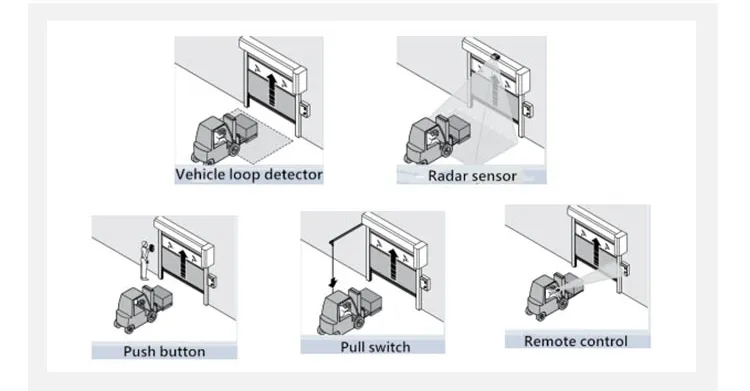

Vehicle loop detector, Radar sensor, Push button, Pull switch, Remote control.

Operation Methods
📸 Real Shots & Package

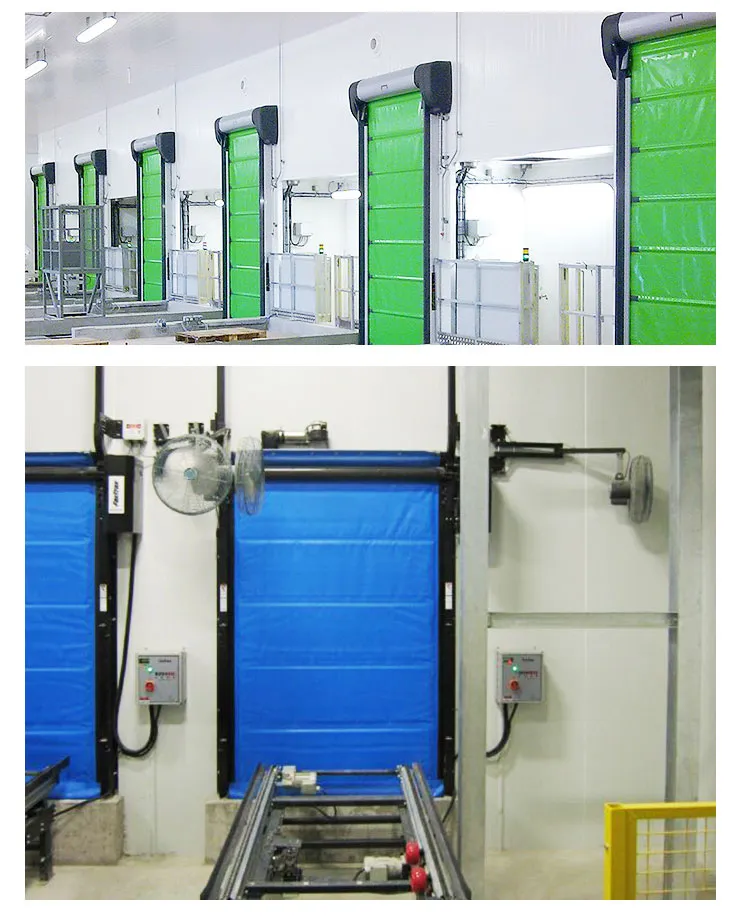

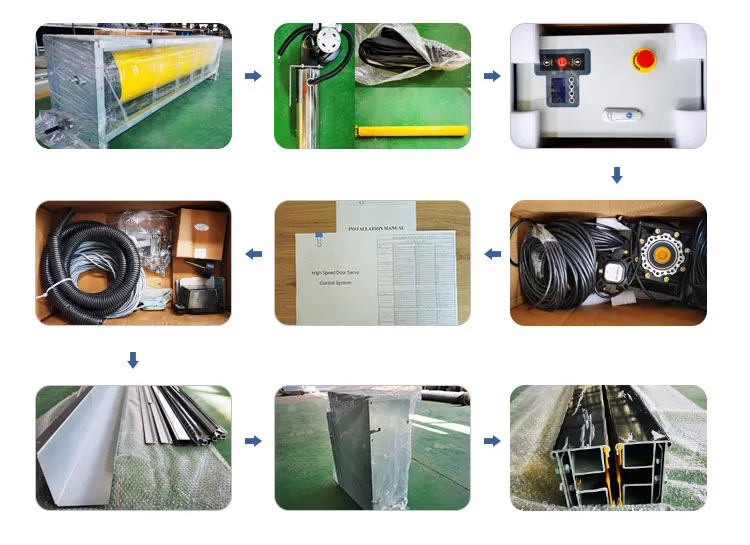

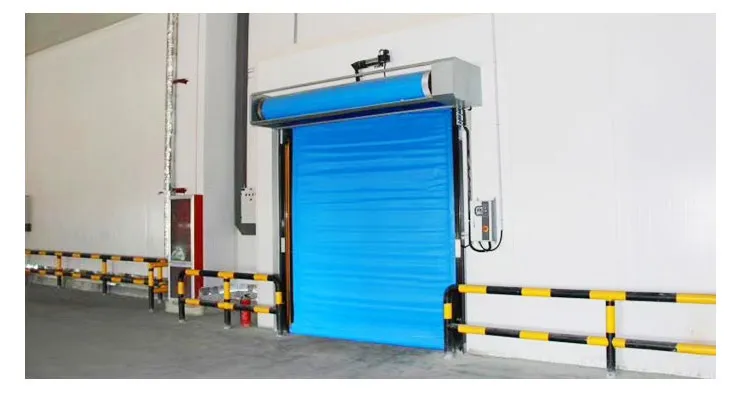

Package Details Real Shot 1 Real Shot 2 Real Shot 3 Real Shot 4 Real Shot 5
❓ Frequently Asked Questions
Q1: What is the lowest temperature this door can handle?
A: The door is designed to work efficiently in temperatures as low as -35 Celsius degrees, thanks to its 20mm insulated PVC fabric and anti-freezing heating design.
Q2: Does the door have a self-repairing function?
A: Yes, the zipper design allows the fabric to dislodge from the guide rails during an accidental collision and automatically reset during the next cycle.
Q3: What safety features are included as standard?
A: Standard safety devices include a safety photo cell sensor, a safety bottom airbag sensor, and an alarm light with emergency buttons.
Q4: What materials are used for the door frame?
A: The standard material is Galvanized steel with a painted surface. Optional materials include 304 stainless steel or aluminum alloy.
Q5: How fast does the door operate?
A: The normal opening speed is 1.2m/s and closing speed is 0.6m/s. It can reach a maximum opening speed of 2.0m/s for high-traffic areas.
Q6: Is it suitable for high-frequency use?
A: Yes, the system is designed for an opening frequency of up to 1000 times per day, making it ideal for industrial cold storage environments.
