Model NO.:CCX-QM01
Material:Lead, Stainless Steel
Type:X-ray Shield
Lead Equivalent:1-5mmpb
Transport Package:Standard Export Package
Origin:China
Capacity:500units/Month

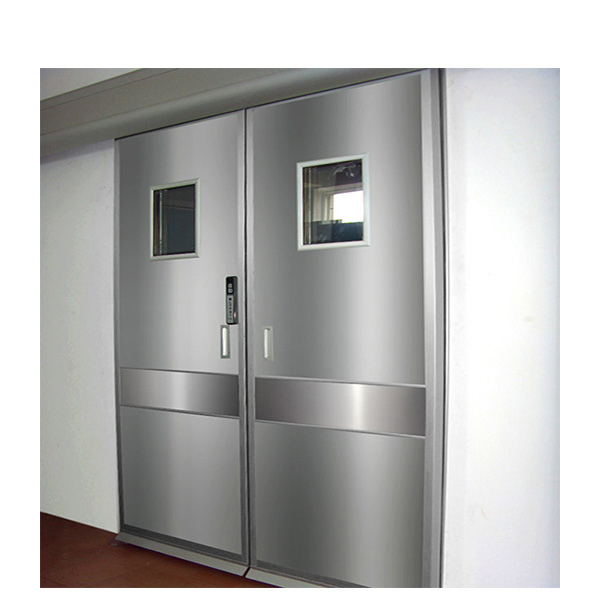

Medical X-Ray Radiation Shielding Sliding Lead Door
High-quality stainless steel hospital manual and automatic radiation shielding doors, available in 2mmpb, 3mmpb, 4mmpb, and 5mmpb lead equivalents.
Key Specifications:
- Material: Quality Stainless Steel
- Lead Equivalent Options: 2mmpb, 3mmpb, 4mmpb, 5mmpb
Production Technology & Process:
- Precise measurement of door openings
- Custom size calculation based on site requirements
- Professional welding of steel frames
- Rigorous door body construction and material production
- Integration of door fans and frames
- Advanced installation with wall protection lap processing
- Precision gap control (bottom gap 5-8mm)

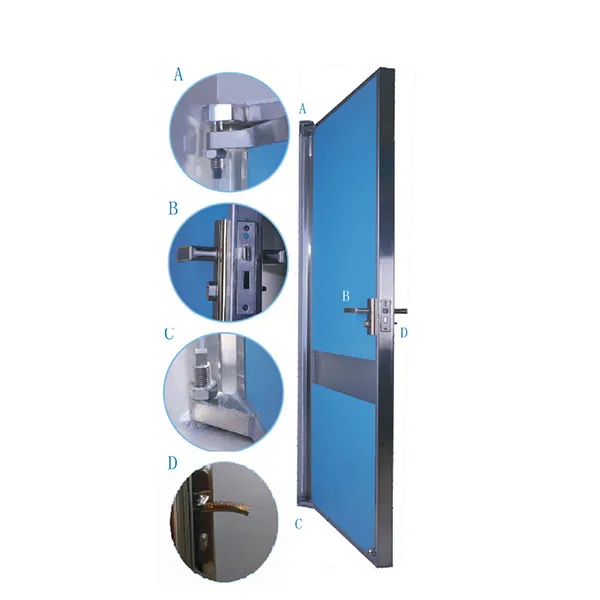

- Internal lead protection for locks to ensure zero radiation exposure
Our comprehensive protection solutions include:

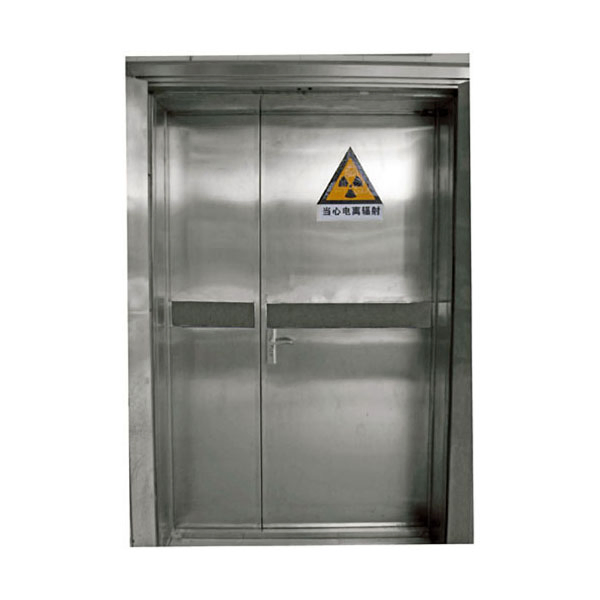

- Manual Doors: Single door, pair door (child-mother), manual sliding door

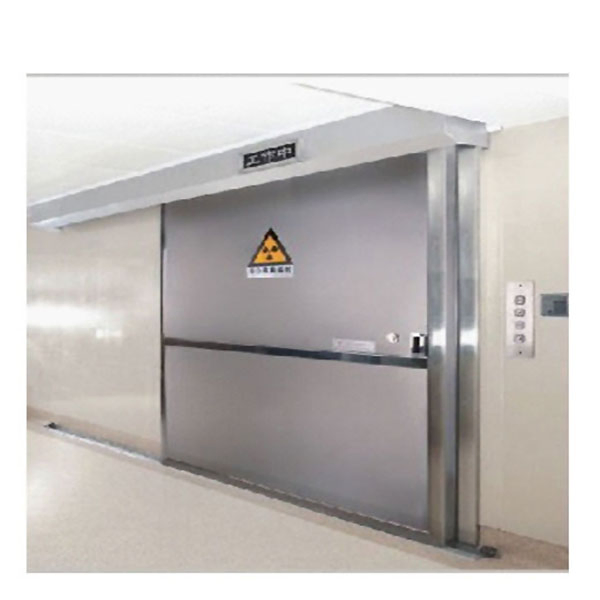

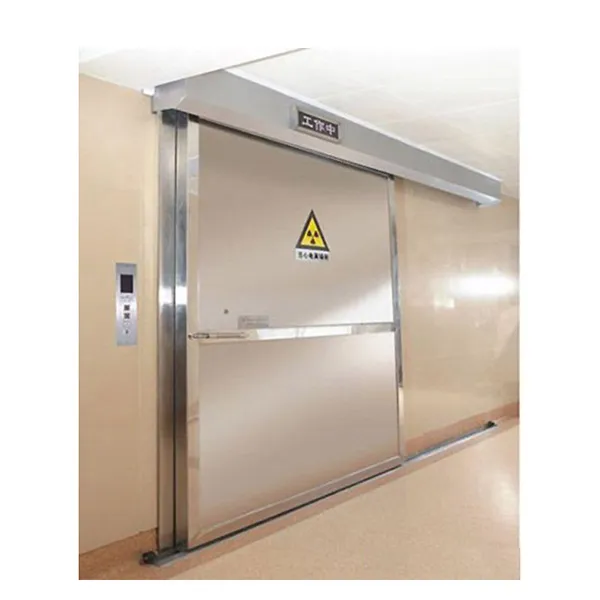

- Automatic Doors: Electric push-pull translation, induction protective doors, and operating room doors
Frequently Asked Questions
Q1: What lead equivalent options are available for the doors?
We provide a range of protection levels including 1mmpb, 2mmpb, 3mmpb, 4mmpb, and up to 5mmpb depending on your radiation safety requirements.
Q2: Can the doors be customized to specific sizes?
Yes, our production process involves measuring the door opening first and then calculating the exact frame and body size to ensure a perfect fit and maximum protection.
Q3: What types of automatic opening mechanisms are available?
We offer automatic push-and-pull translation doors, induction-based protective doors, and specialized electric doors for operating rooms.
Q4: How do you ensure there is no radiation leakage at the lock area?
We use special protection locks and apply internal lead shielding treatment to the lock parts so that no radiation can penetrate through the hardware.
Q5: What is the standard gap between the door and the floor?
For optimal shielding and smooth operation, the gap between the lower part of the door and the ground is strictly controlled between 5mm and 8mm.
Q6: Are the doors suitable for high-traffic hospital environments?
Absolutely. Constructed with high-quality stainless steel and reinforced steel frames, our doors are designed for the durability required in busy medical facilities.
