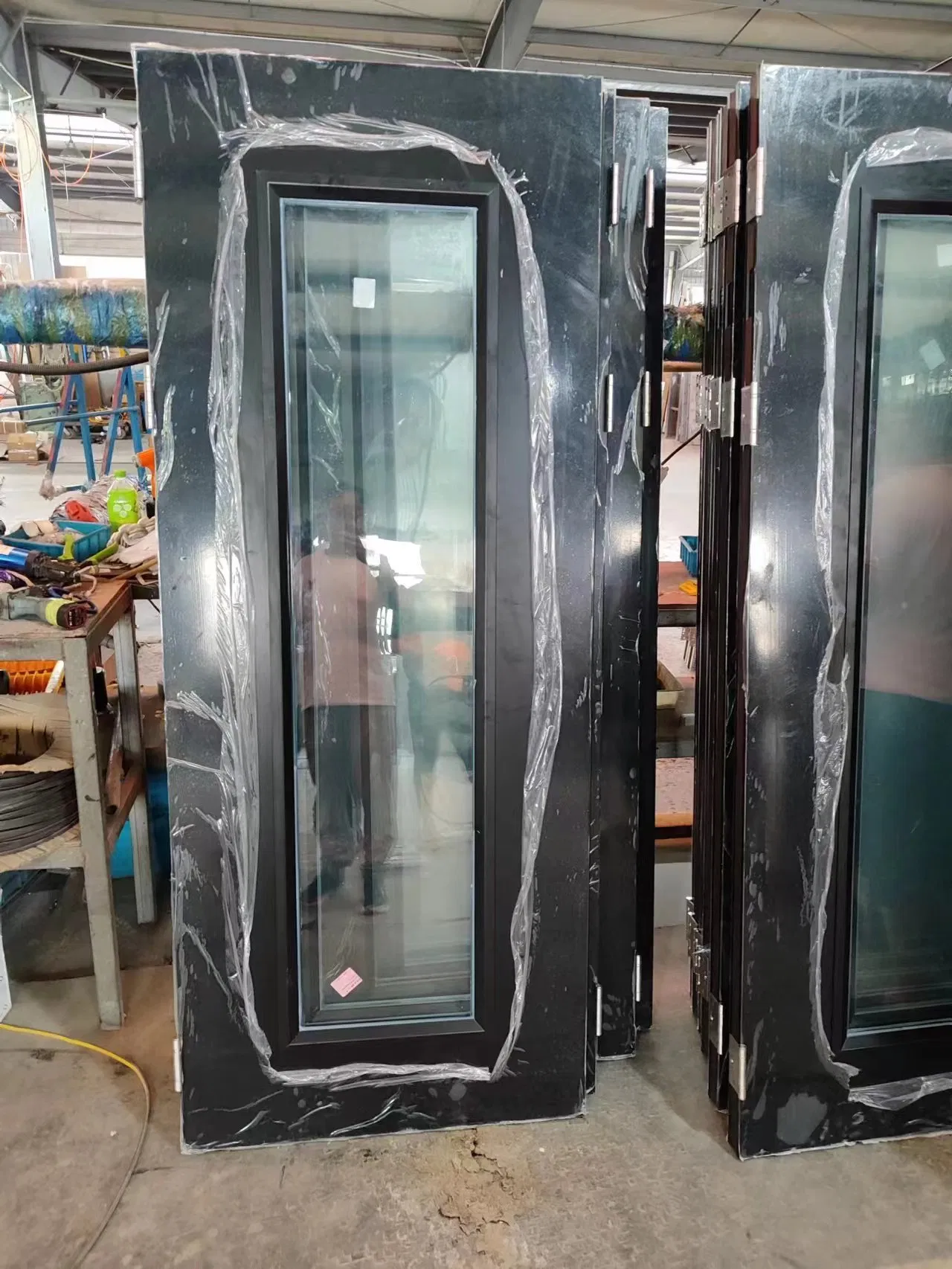

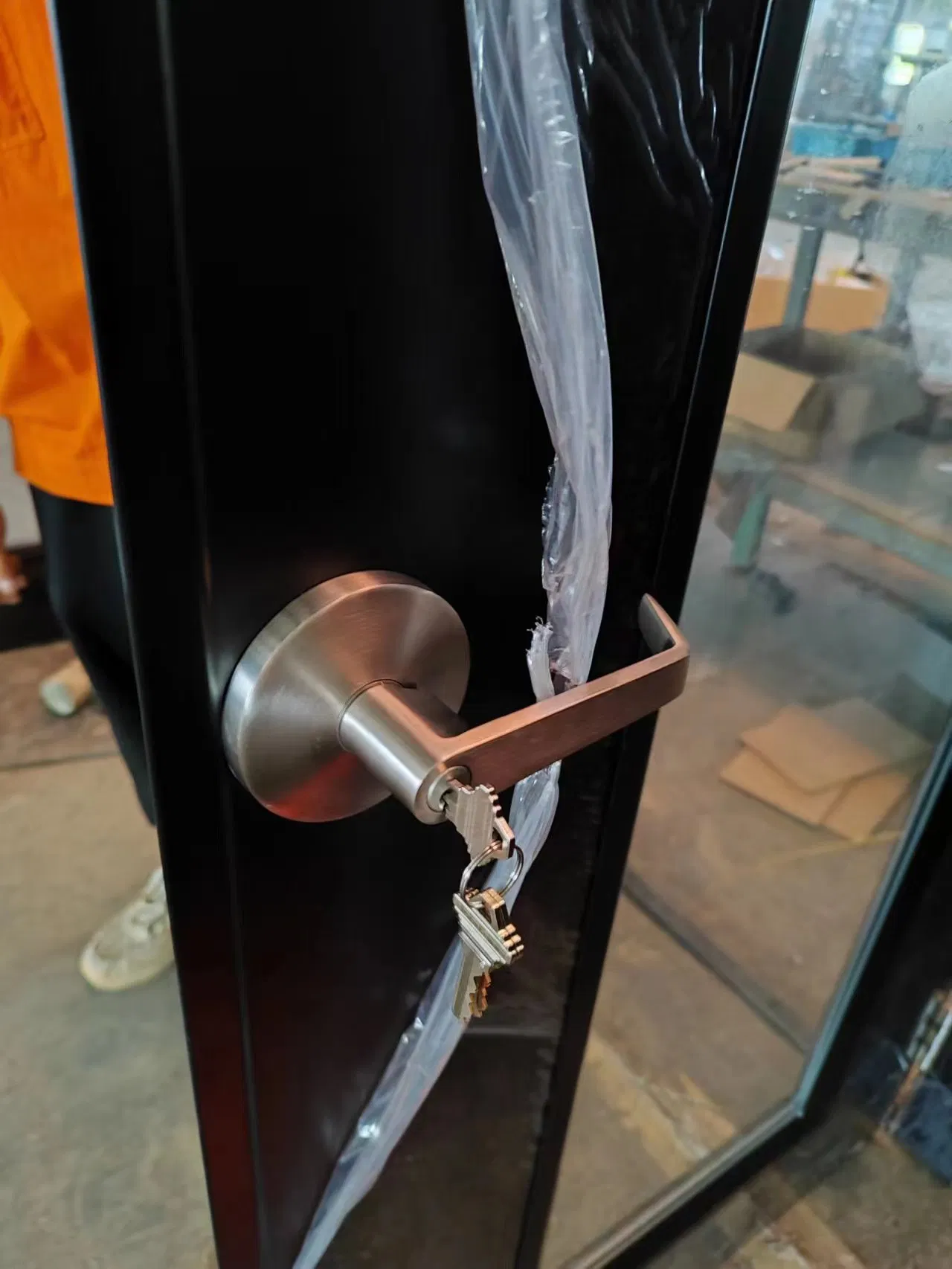

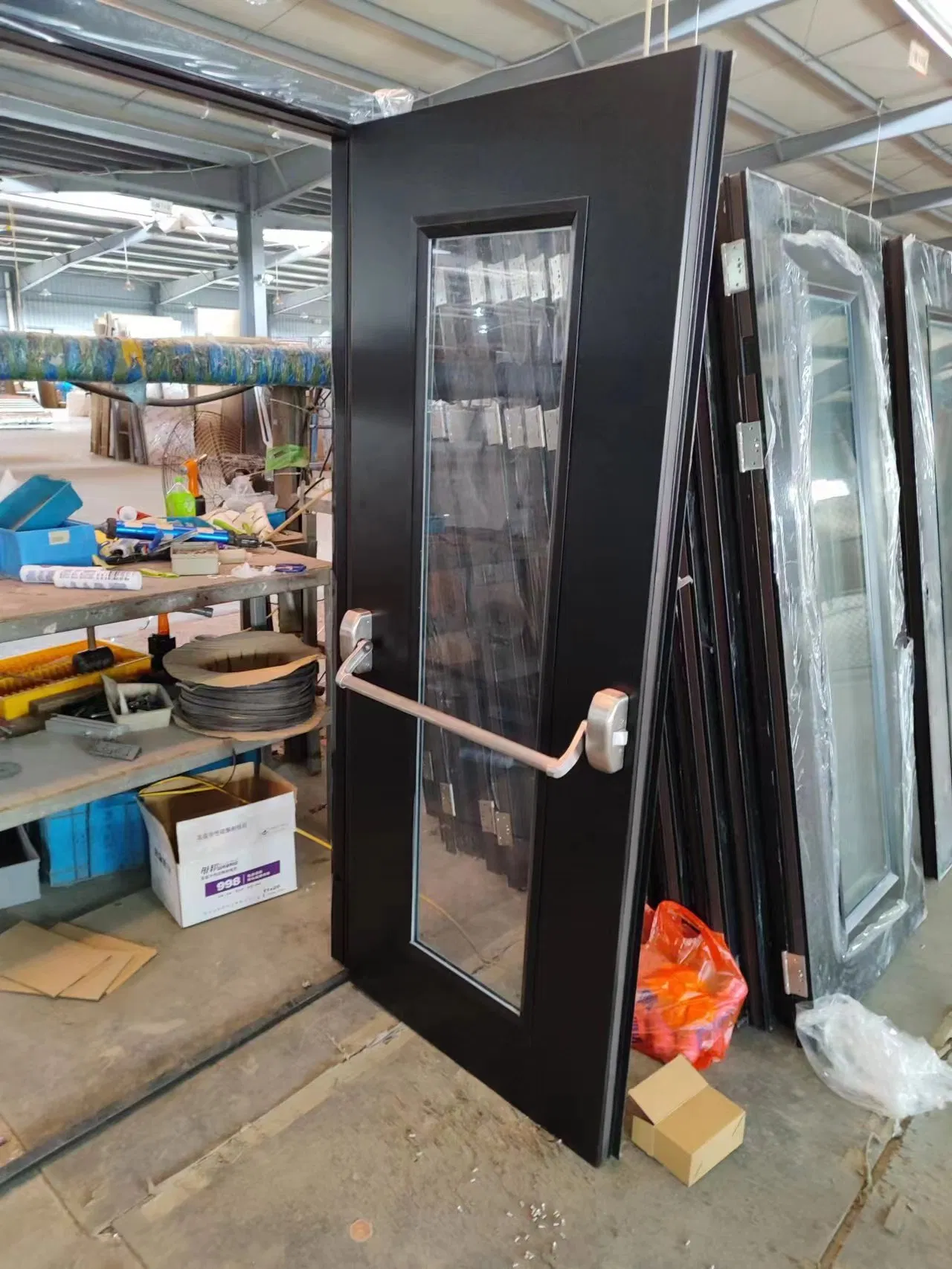

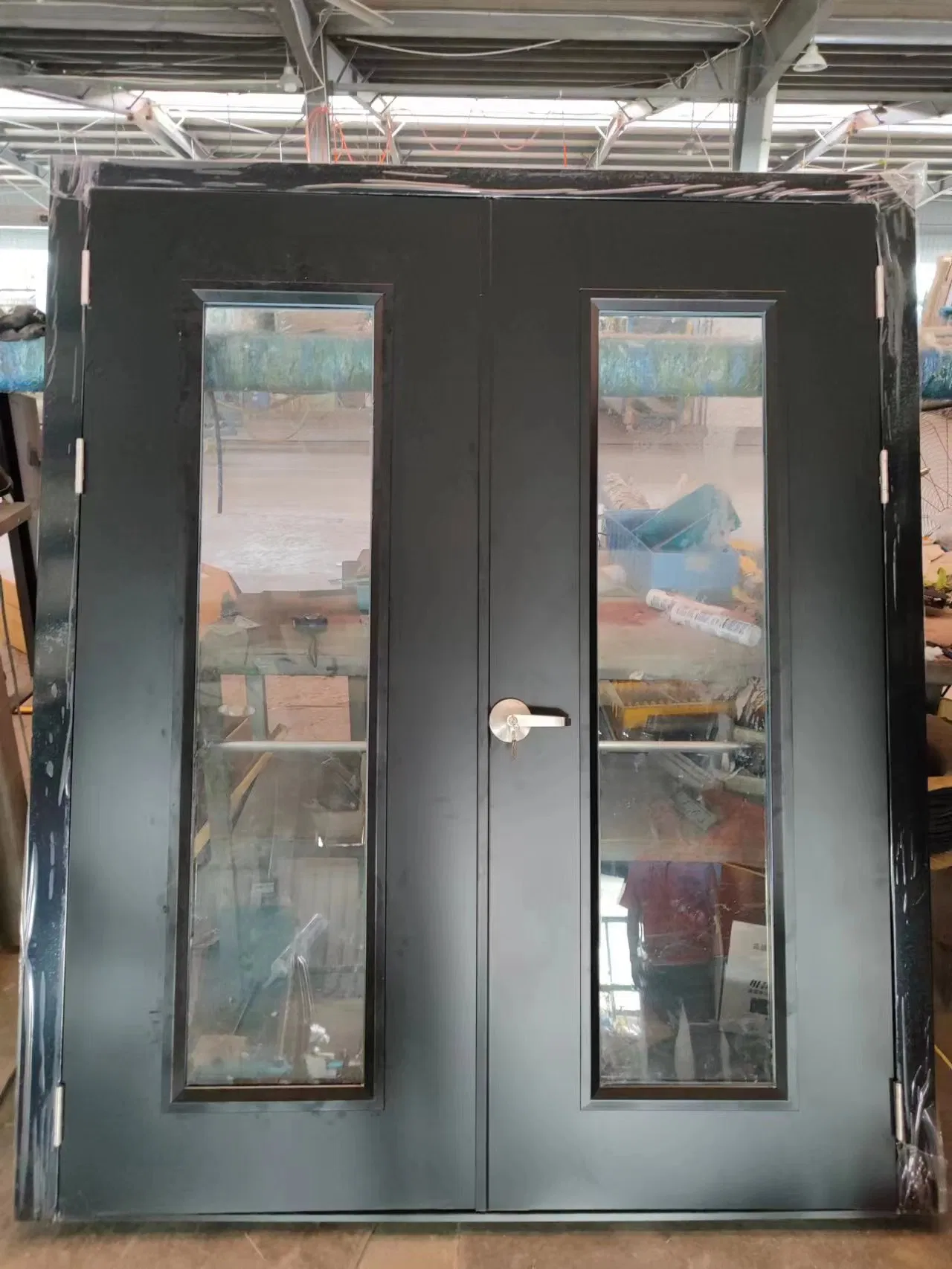

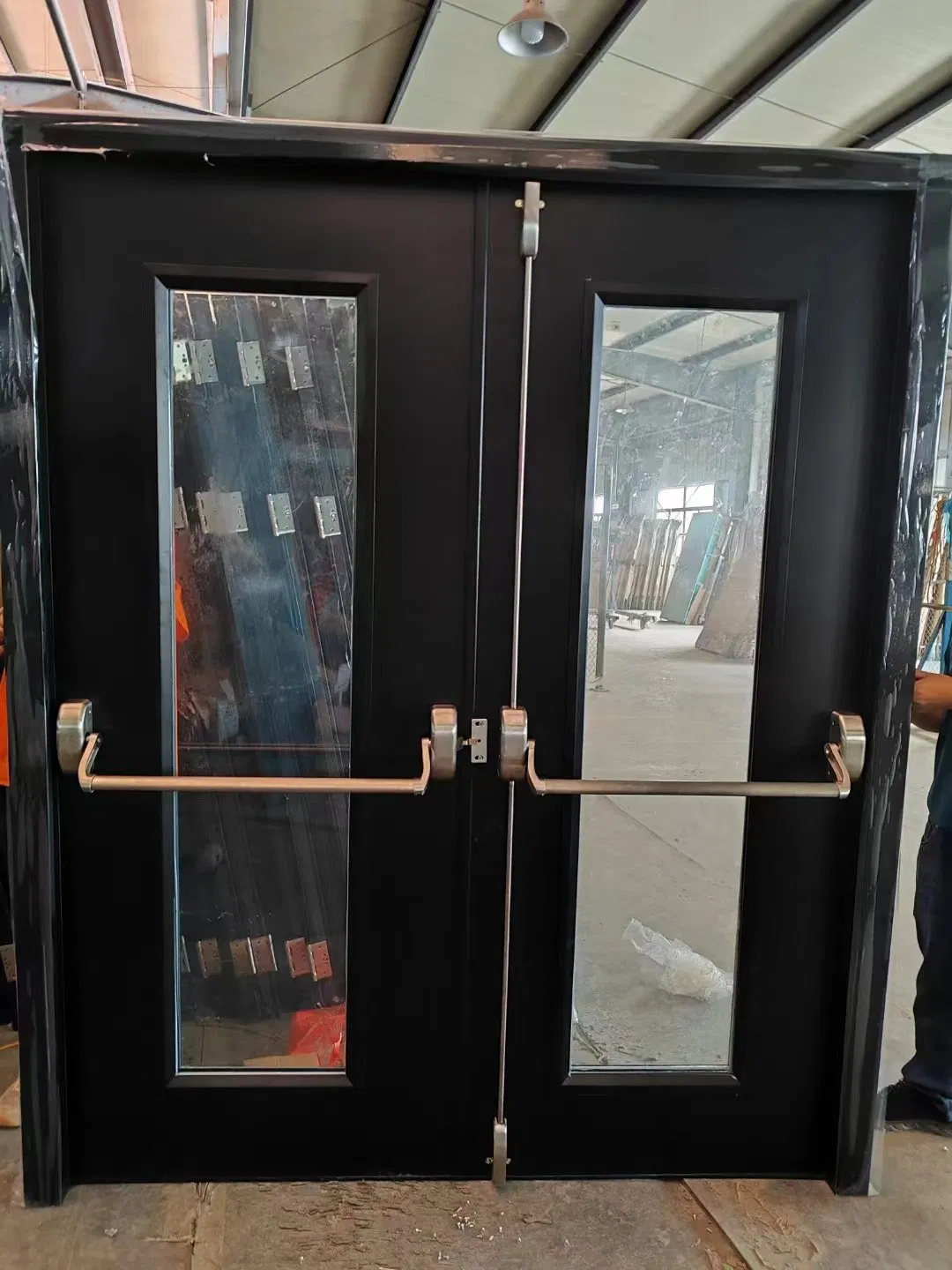

UL Fire Rated Glass Door Emergency Fire Exit Fireproof Door
UL Fire Rated Glass Door Emergency Fire Exit Fireproof Door
UL Fire Rated Glass Door Emergency Fire Exit Fireproof Door
UL Fire Rated Glass Door Emergency Fire Exit Fireproof Door
UL Fire Rated Glass Door Emergency Fire Exit Fireproof Door
1 / 5
UL Fire Rated Glass Door Emergency Fire Exit Fireproof Door
UL Fire Rated Glass Door Emergency Fire Exit Fireproof Door
UL Fire Rated Glass Door Emergency Fire Exit Fireproof Door
UL Fire Rated Glass Door Emergency Fire Exit Fireproof Door
UL Fire Rated Glass Door Emergency Fire Exit Fireproof Door

UL Fire Rated Glass Door Emergency Fire Exit Fireproof Door

Customization: Available
After-sales Service: Online Technical Support
Warranty: 2 Years
Send Inquiry

Product Description

Basic Information
Model NO.
FD-2023037
Material
Steel
Style
Classic
Open Style
Swing
Fire Rated Time
120 Minutes
Function
Security, UL 2 Hours Fire Rated
Security Rating
C
Certificated
UL Listed
Packaging & Delivery
Package Size
210.00cm * 900.00cm * 5.00cm
Gross Weight
120.000kg
Product Description
UL (Underwriters Laboratories) Listed fire rated steel doors are tested and certified to prevent the spread of fire and smoke for 20 minutes to 3 hours.

Key Features:

  • Steel Construction: Durable protection against heat and smoke.
  • Fire-resistant Core: Internal materials like gypsum or mineral wool for insulation.
  • Intumescent Seals: Barriers that expand under heat to block smoke.
  • Self-closing Mechanism: Automatically closes when sensing heat or smoke.
Fire Rated Door
Detailed Photos

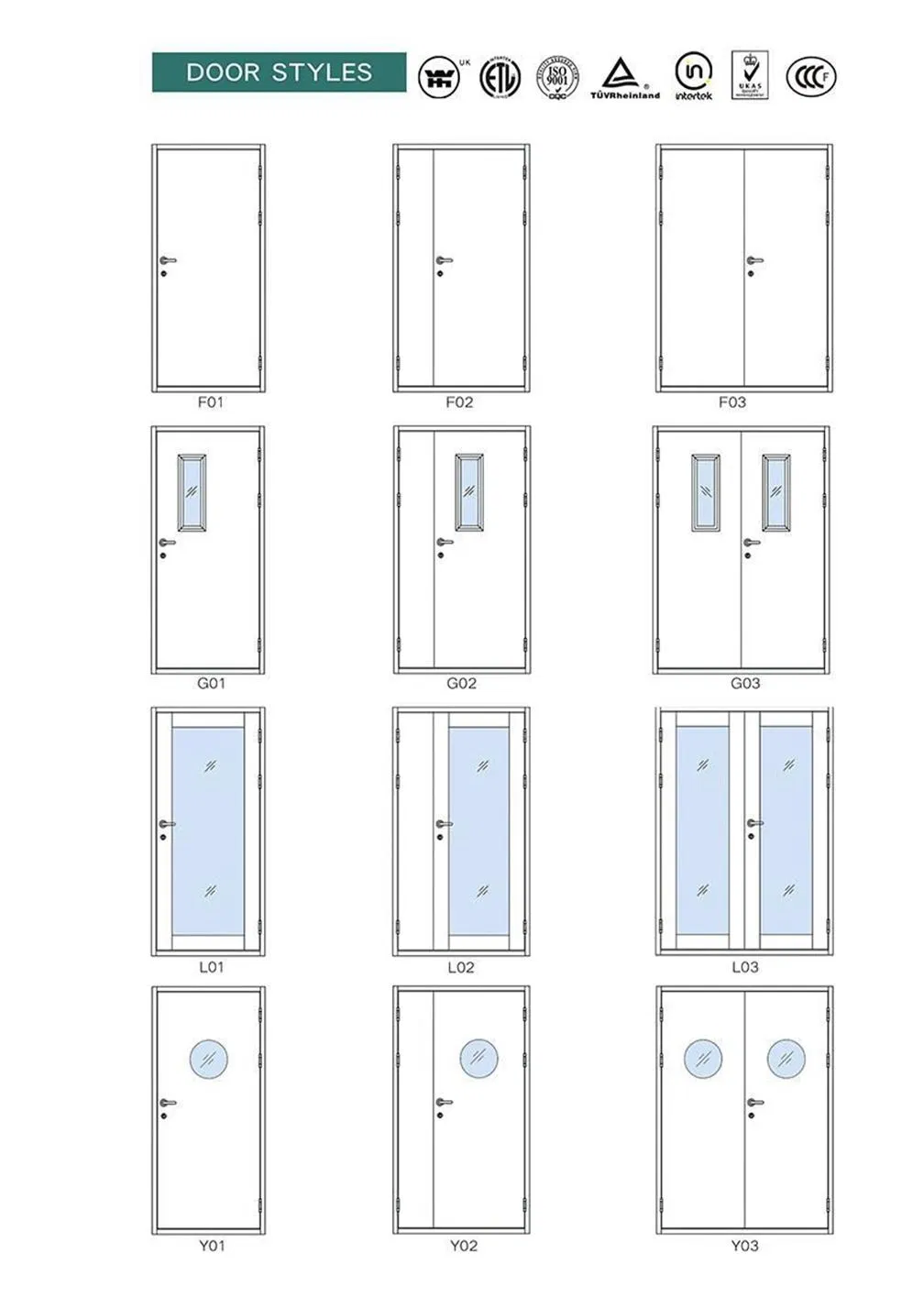

Detail 1

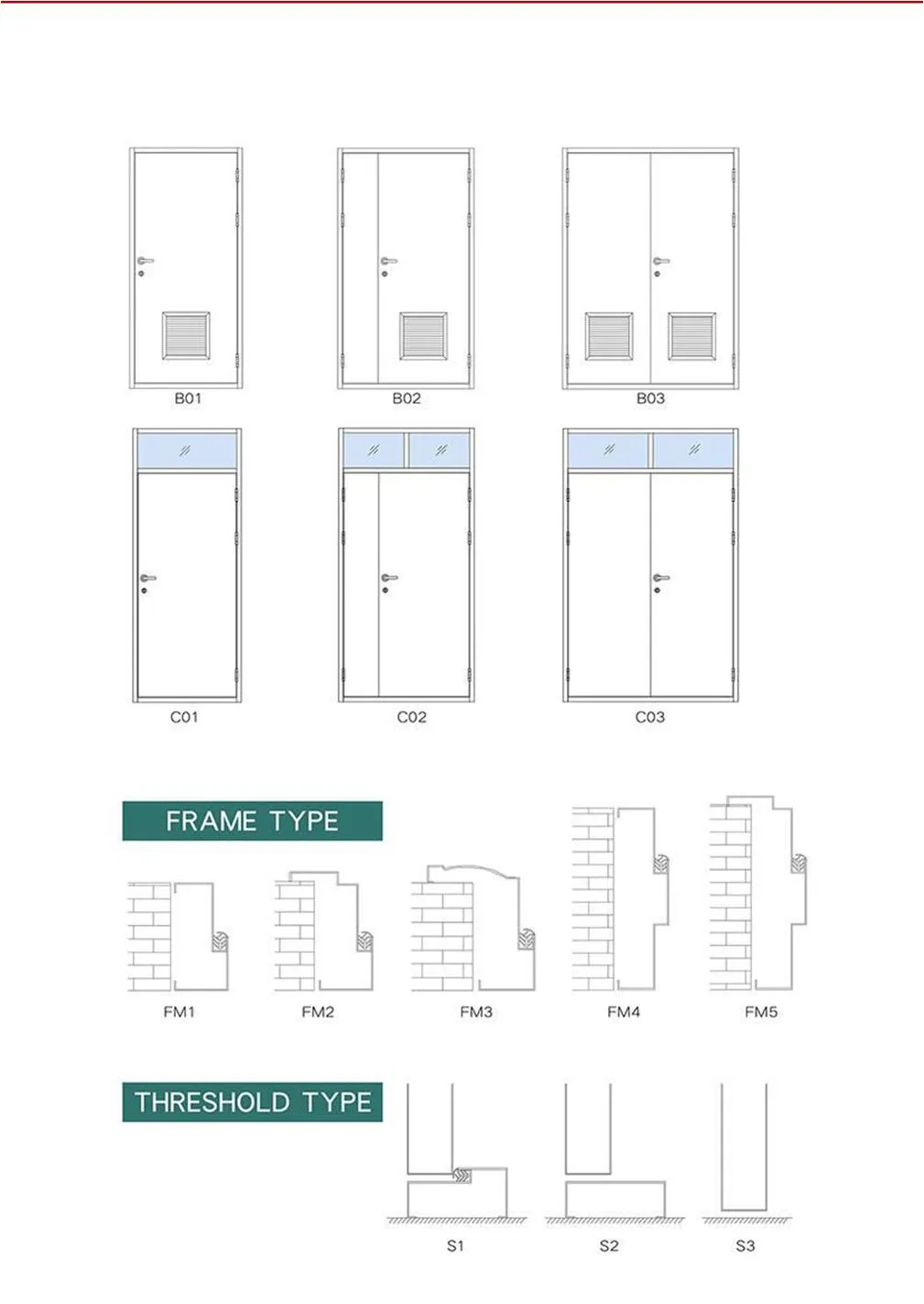

Detail 2

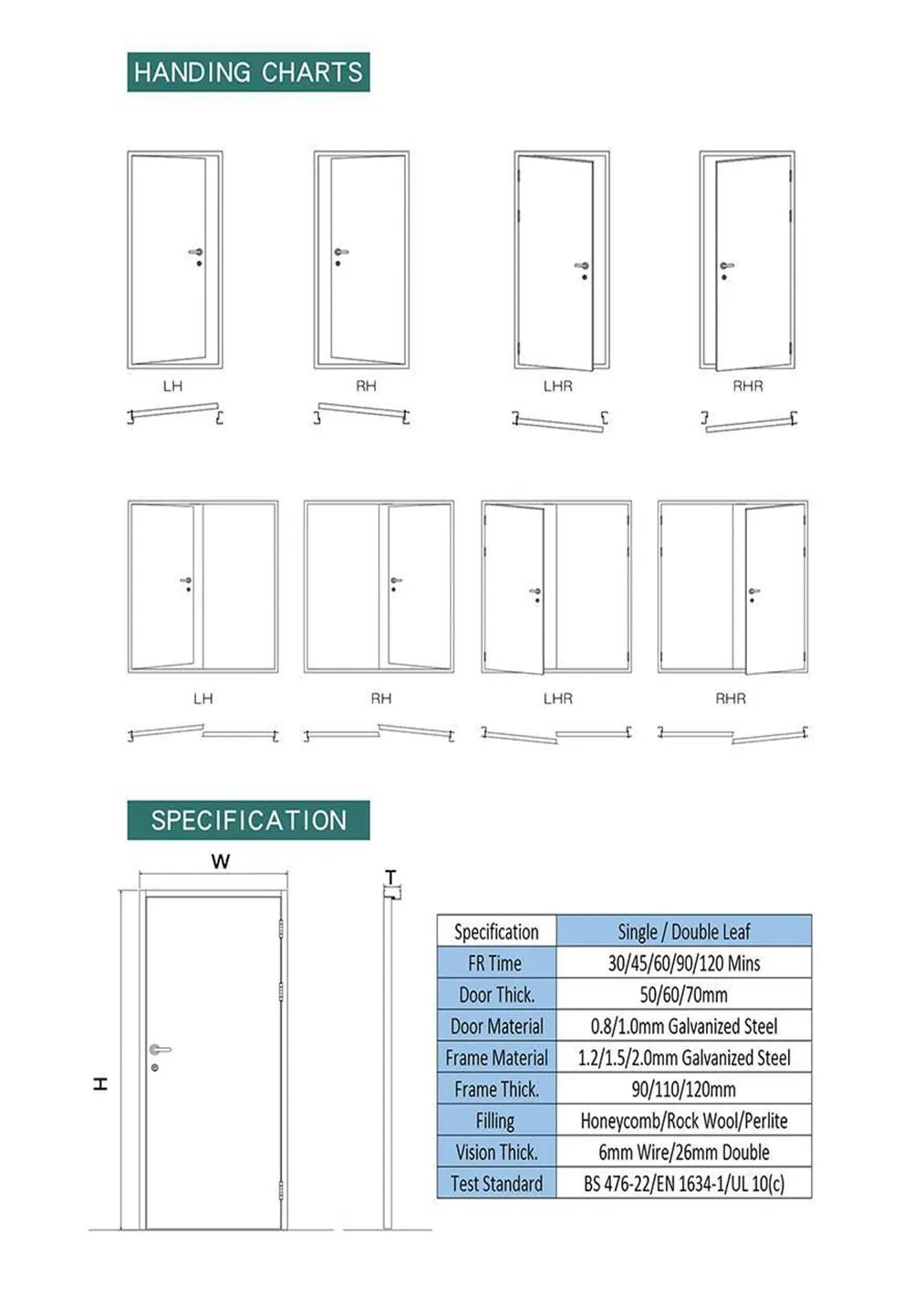

Detail 3

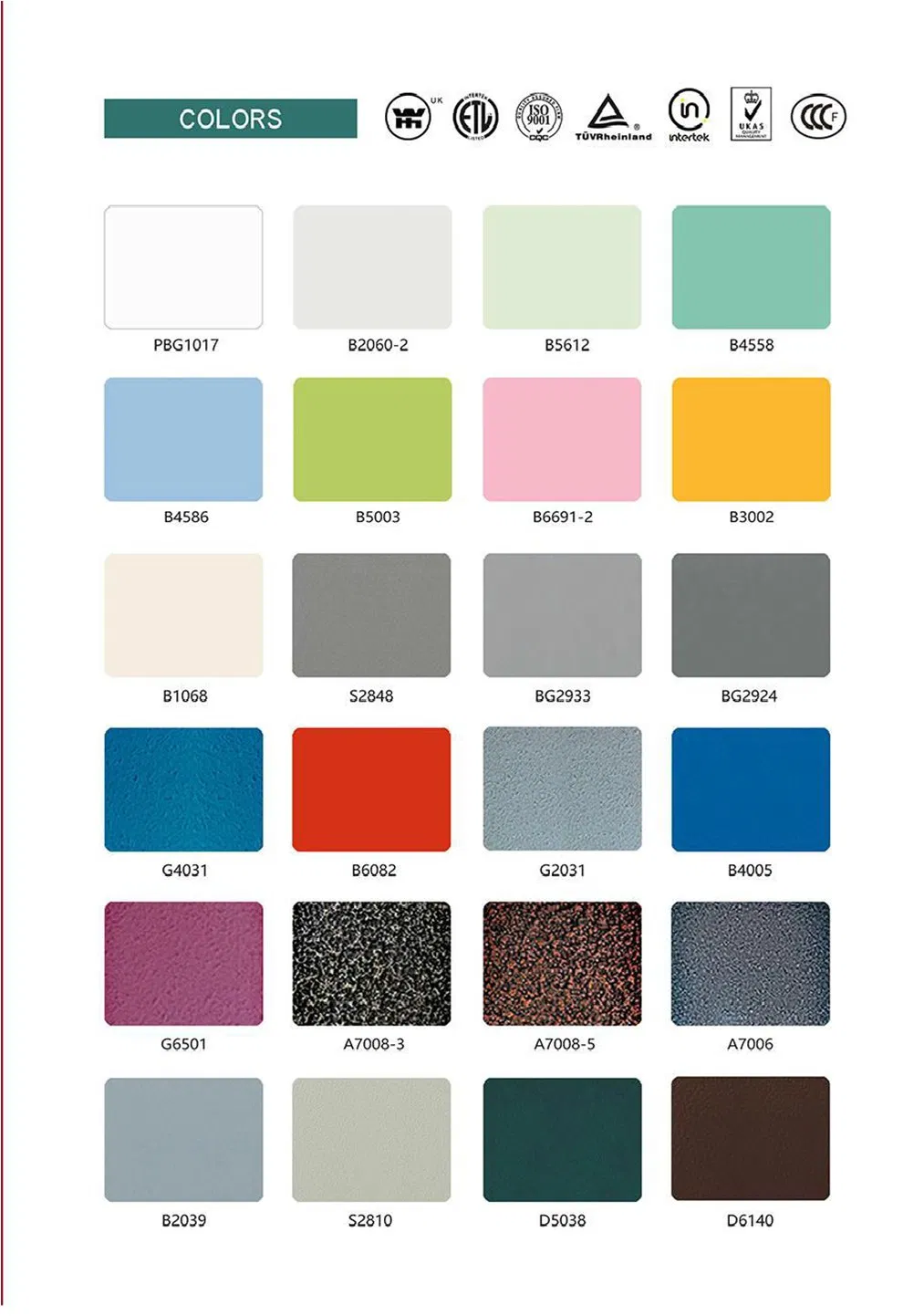

Detail 4

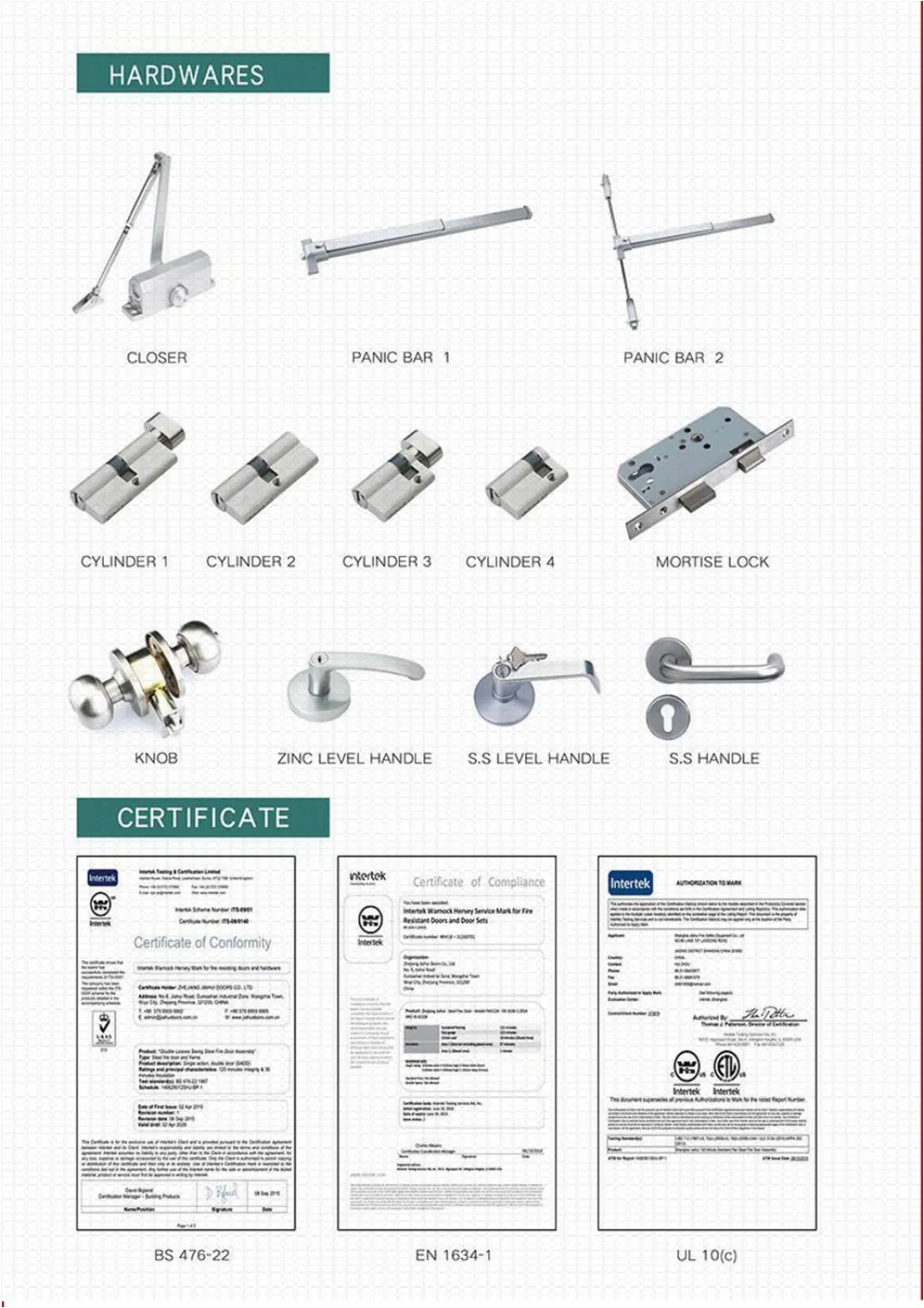

Detail 5
Product Parameters
Door MaterialGalvanized Steel
Door Panel Thickness50mm or 2" inches
Frame DepthStandard 110mm or 4 1/4" inches
Door leaf sheet22 Ga.-18 Ga.(1.0/1.2 mm)
Door frame sheet16 Ga.-14 Ga.(1.5mm-2.0mm)
Surface treatmentPowder coated or heat transfer printing
Inner fillingPerlite or Insulated rockwool
CertificateUL 10C, UL 10B, NFPA 252, CAN/ULC S104
Packaging & Shipping
Packaging 1
Packaging 2
Production Excellence

Utilizing high-quality materials and advanced manufacturing techniques, our fire-rated steel doors are designed to meet strict performance and safety standards. Every project begins with precise CAD drawings to ensure all specifications are met perfectly before production starts.

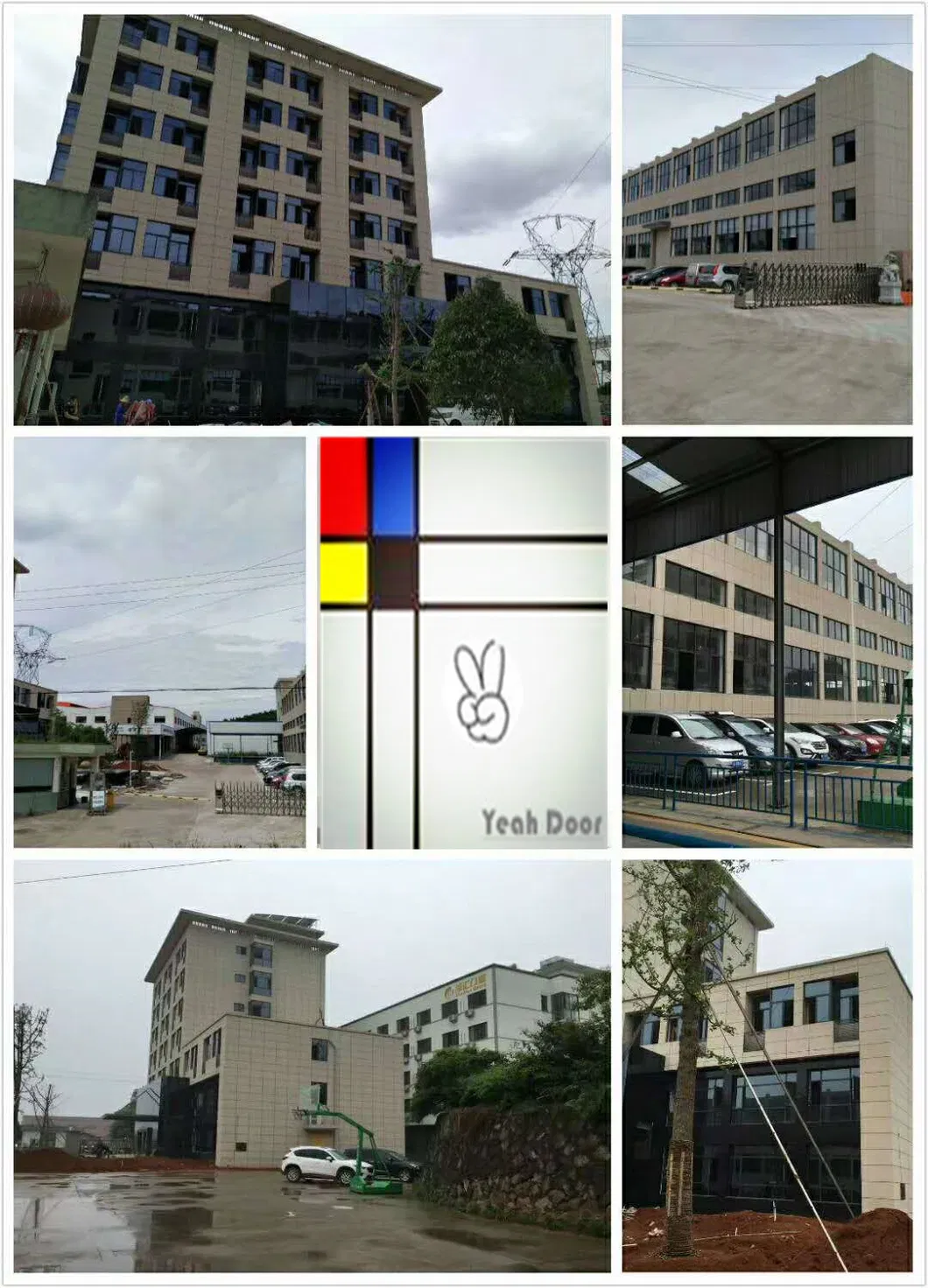

Production 1

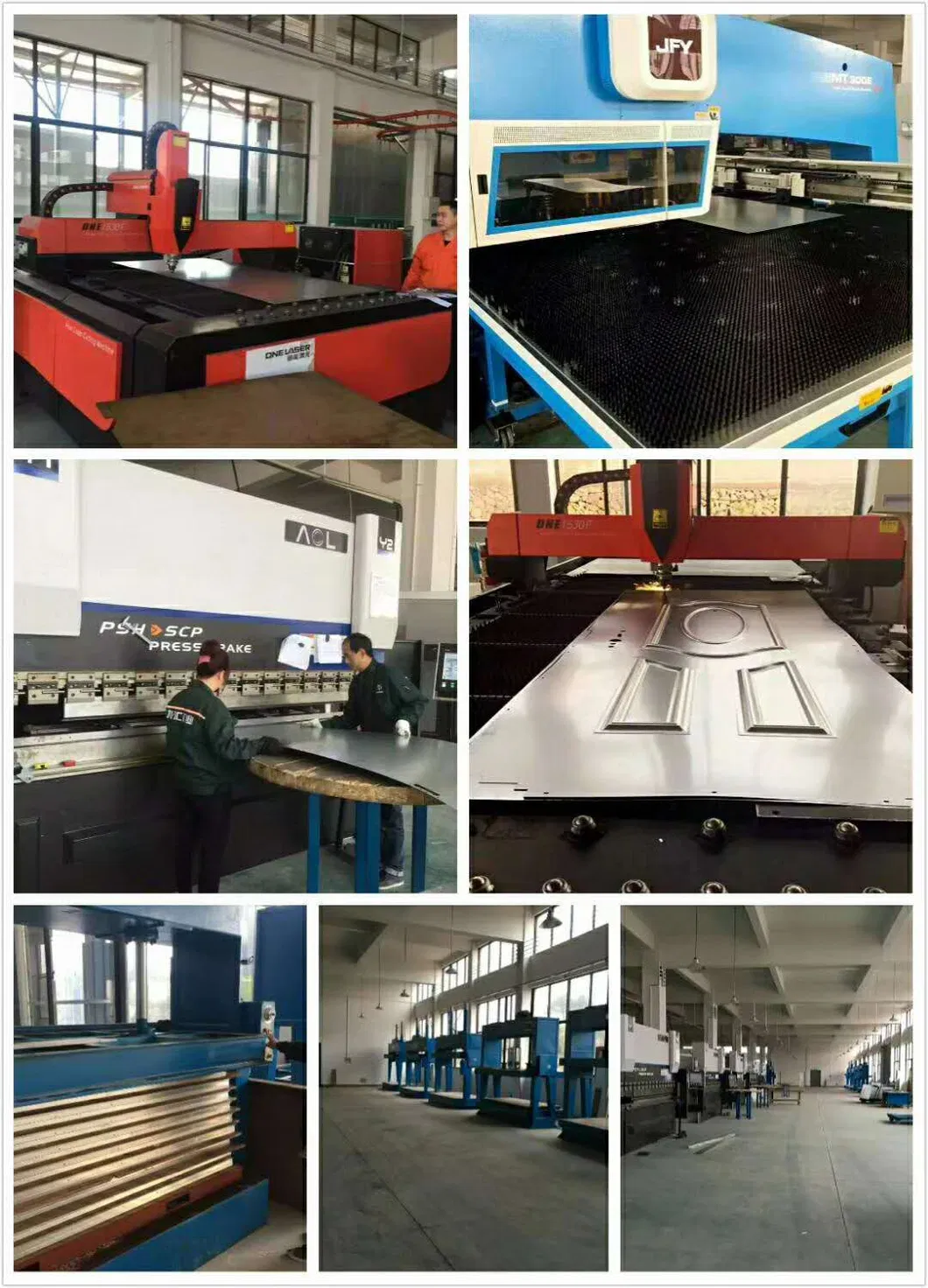

Production 2
Frequently Asked Questions
What does "UL Listed" mean for fire doors?
It means the doors have been rigorously tested by Underwriters Laboratories to meet specific fire resistance and safety standards.
How long can these doors resist fire?
Our fire-rated steel doors are designed to provide protection for up to 120 minutes (2 hours).
Are the sizes customizable?
Yes, we provide custom sizes based on your specific project drawings and requirements.
What materials are used for the door core?
We use fire-resistant materials such as Perlite or Insulated Rockwool to ensure maximum safety.
What surface finishes are available?
The doors can be finished with powder coating or heat transfer printing with various wood grain colors.
Are CAD drawings provided?
Yes, we provide detailed CAD drawings for approval before the manufacturing process begins.
